Details
Features
- UL recognized in the US and Canada
- 20kV peak rating guarantees quick and efficient ignition
- A vacuum encapsulation process, using epoxy, provides resistance to moisture, excellent heat dissipation and electrical insulation
- Epoxy potting will not shrink or crack like tar-filled transformers
- Case material is high-temperature thermoplastic that provides high impact strength, scratch resistance, impenetrable to oil and most chemicals
- Small size and weight (less than 1 lbs) — versus an 8 lbs iron core transformer, making shipping and installation easier
- Higher output voltage for more reliable ignition, especially with cold oil
- Adapts to multiple baseplates making it the most versatile unit on the market
Technical Specifications
- Input Voltage: 208-240VAC, 50/60Hz, 21.6VA
- Output Voltage: 20kV peak
- Output Current: 25 mA RMS
- Secondary Mid-point Ground
- Ambient Operating Temperature: -40°F (-40°C) to 150°F (66°C)
- Storage Temperature: -40°F (-40°C) to 150°F (66°C)
- Moisture: 5 to 95% Relative Humidity
Dimensions
PowerLight Igniter Kits
Igniter | Description | Replaces |
5250001U | Beckett AF/AFG Housing | 5199701U |
5250002U | Beckett SF/SM, CF500, CF800 Housing | 5199702U |
5250003U | Wayne MSR | 5199707U |
5250004U | Wayne EH/EHASR | 5199708U |
5250005U | Igniter only | 5199706U |

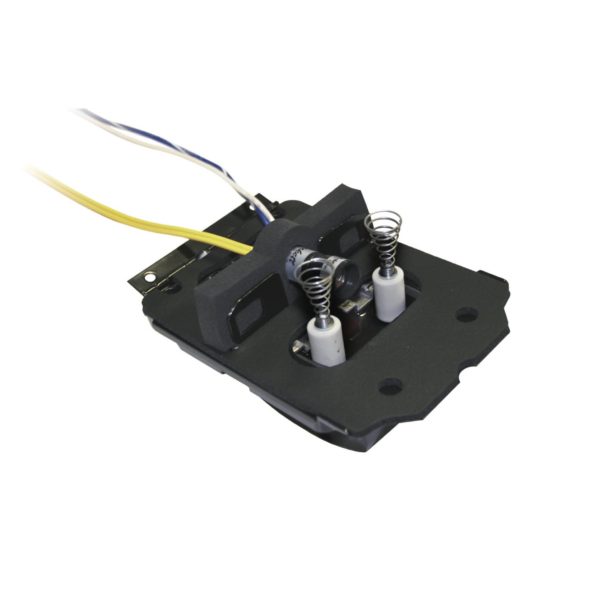

PowerLight Igniter Baseplate Kits
Kit Part Number | Application |
51830U | Beckett A Housing |
51831U | Beckett S Housing |
51833U | Wayne E |
51829U | Wayne M |
Downloads & Links
Warnings (prop65)
Warranty
Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.
