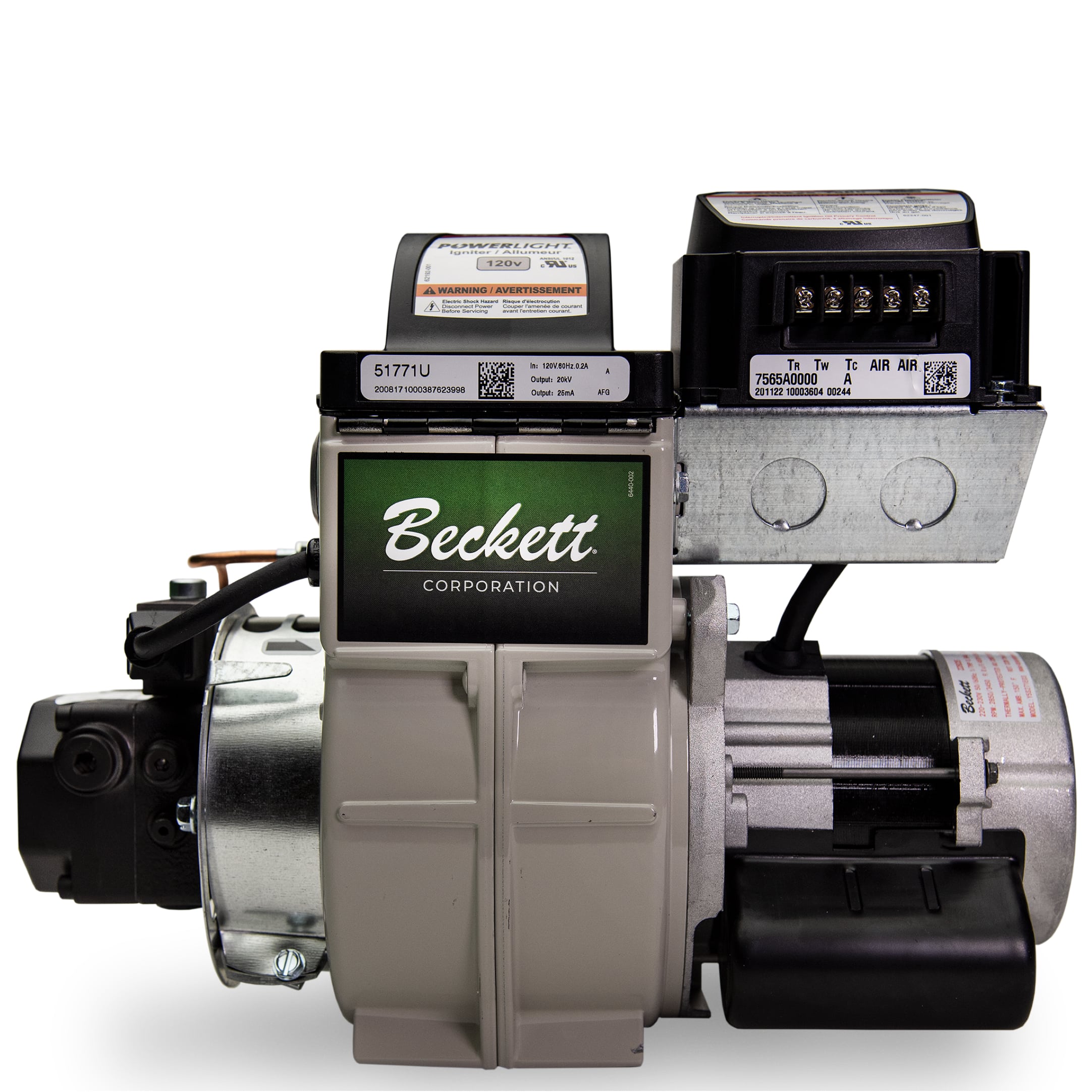

AF/AFG Oil and Renewable Fuels Burner
0.40 to 3.00 GPH | AC Power

The Beckett models AF & AFG burner are designed to meet the increased demands of modern equipment and changing fuels to meet both performance and carbon reduction challenges. Beckett burners utilize the most technologically advanced components available today and are compliant with renewable fuels to 100% biodiesel (B100) and 100% renewable diesel (R100) to give consumers reliable performance while reducing the carbon footprint of your heating system.

The AF and AFG burners have been supplied on original equipment boilers, furnaces, and water heaters for many years. As technology improved, so have our burners and components. If a burner is more than 10 years old, a new AF/ AFG chassis is a simple way to upgrade the system. Installation by your service company is uncomplicated and a new burner comes with a 5-year factory warranty.

Categories: , Tags: , , , Brand:

Details

Nozzle Line Electrode Assembly – Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion.

Flame Retention Head – Multiple head styles available to match flame characteristics to individual appliance designs.

Motor – Continuous duty permanent split capacitor (PSC), built for daily hard use and years of trouble free operation.

Ignition Transformer – 10,000 V/23 mA secondary positively and smoothly ignites fuel. Electrically balanced and shielded. No TV interference. Designed for heavy duty continuous operation.

Connector Tube Fitting – Special Beckett, high quality flare fitting.

Burner Housing – Sturdy die cast, precisely machined aluminum housing aligns pump and motor for smoothest operation and longest coupling life.

Features

Capacities

  • 0.40 to 3.00 gph
  • 56,000 to 420,000 BTU/hr input

Fuels

  • ASTM D396 FOR #1 & #2 Heating oil
  • ASTM D396 for B6 – B20 Biodiesel blends
  • ASTM D975 for Diesel fuel, Renewable diesel
  • Biodiesel blends of D396 & D6751 to B100
  • CAN / CGSB -3.2 for Heating oil Types 0, 1, and 2

Fuel Unit

Motor

  • 1/7 HP 3450 rpm PSC type

    Igniter

    Control

      Dimensions (Standard)

      • Height: 11-1/2″
      • Width: 12-7/8″
      • Depth: 6-9/16″

      Dimensions (with Cover)

      • Height: 12-1/2″
      • Width: 15″
      • Depth: 9-1/4″

      Electrical Characteristics

      • Power Supply: 120 VAC, 60Hz, Single Phase
      • Operating Load:
        • 5.8 Amps maximum @ 120 VAV
        • 240 VAC – Available (Contact factory)

      Flame Retention Heads

      Flame retention head shape and help regulate the combustion process. Beckett has a wide selection of options to obtain the best performance in any application.

      Available Models

      Chassis Primary Control Fuel Unit
      B2005 - AFG 7565 w/15 sec pre-, 2 min post-purge PF20422 - 2-Stage
      B2007 - AFG 7565 w/15 sec. pre-purge PF20322/3 - single stage
      B2008 - AFG 7565 w/15 sec pre-, 2 min post-purge PF20322/3 - single stage
      B3001 - AF  7565 w/15 sec pre-, 2 min post-purge PF20322/3 - single stage

      Accessory: Contractor Tool 52082 and Mounting Bracket 33023

      Available Accessories

      Part Number Description
      5432 Adjustable Flange & Gasket
      5850 Split Flange & Gasket
      5685 Pedestal Mounting Kit
      5606 Pedestal Mounting Kit — Extended Pedestal Kit for 8” - 13” above floor
      5207301U Burner Cover Kit with Split Mounting Plate — sound-reducing and tamper-resistant

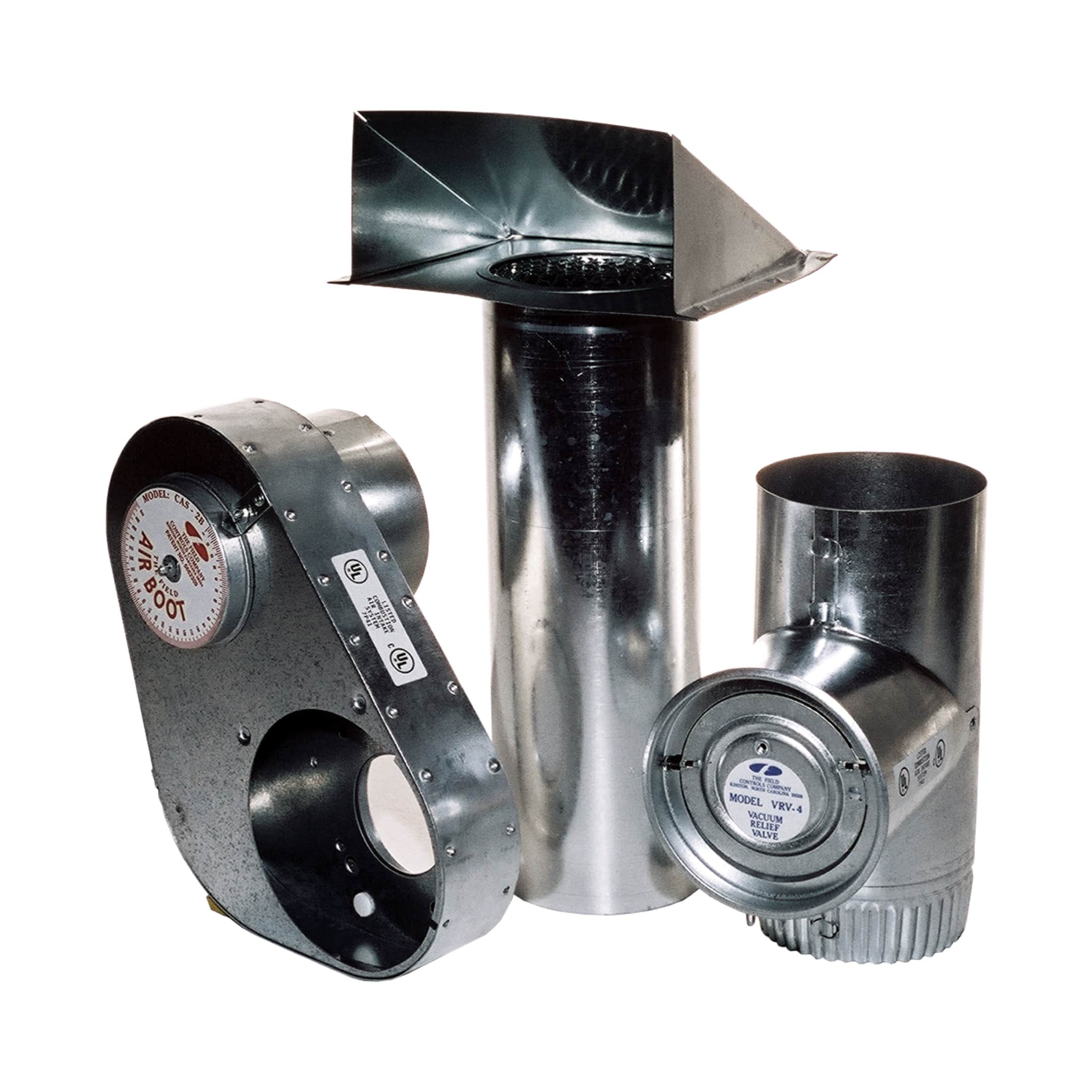

      CAK-APU Air Boot Kit with Air Proving - Must use with 7565 GeniSys Control
      CAK-APU Air Boot Kit with Air Proving - Must use with 7565 GeniSys Control
      CAK-APU Air Boot Kit with Air Proving - Must use with 7565 GeniSys Control
      51621 Start Helper - smoother light-off for cold fuel conditions

      Available Accessories

      Start Helper

      Start Helper

      A solid-state, self-regulating heating element inside the Start Helper maintains the temperature of oil in the nozzle line. As the temperature ...
      Sound Cover Kit

      Sound Cover Kit

      Sound attentuation cover for use on Beckett AF, AFG and CF375 burners. A ggreat example of the advanced technology innovations which Beckett ...

      Air Tube Combinations

      Firning Rate Range - GPH Burner Head Useable Length - Tube
      4-1/2" 5" 5-3/8" 6-5/8" 7" 7-1/4" 9" 10-1/2" 13" 16"
      Less Head - AF44 - AF53 AF65 - AF72 AF90 AF104 AF130 AF160
      0.40 - 0.75 F0 AF44XR - AF53XR AF65XR - AF72XR AF90XR AF104XR AF130XR AF160XR
      0.75 - 1.25 F3 AF44XN - AF53XN AF65XN - AF72XN AF90XN AF104XN AF130XN AF160XN
      0.85 - 1.35 F4 AF44WH - AF53WH AF65WH - AF72WH AF90WH AF104WH AF130WH AF160WH
      0.85 - 1.65 F6 AF44YB - AF53YB AF65YB - AF72YB AF90YB AF104YB AF130YB AF160YB
      1.10 - 2.00 F12 AF44XO - AF53XO AF65XO - AF72XO AF90XO AF104XO AF130XO AF160XO
      1.65 - 2.50 F22 AF44XP - AF53XP AF65XP - AF72XP AF90XP AF104XP AF130XP AF160XP
      2.50 - 3.00 F31 AF44XS - AF53XS AF65XS - AF72XS AF90XS AF104XS AF130XS AF160XS
      AFG Burner Only
      0.40 - 1.00 L2 - AFG50MBSS - - AFG70MBSS - AFG90MBSS - - -
      0.50 - 1.10 L1 - AFG50MPSS - - AFG70MPSS - AFG90MPSS - - -
      0.75 - 2.75 V1 - AFG50MDSS - - AFG70MDSS - AFG90MDSS - - -
