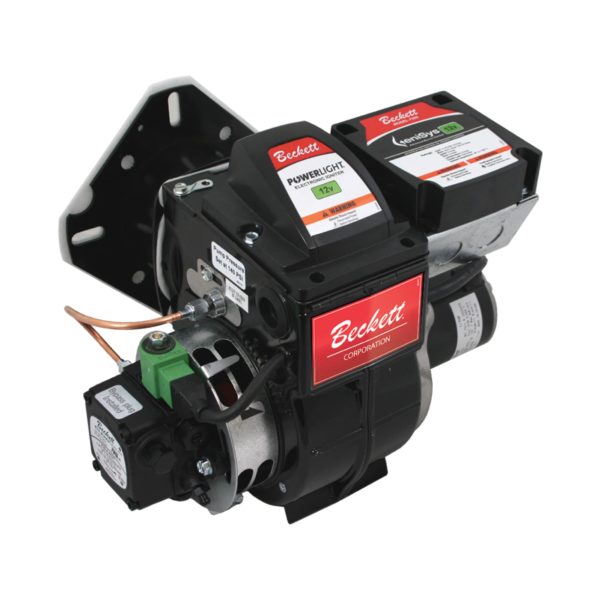

ADC Oil Burner
0.75 to 2.50 GPH | DC Power

The Beckett ADC oil burner is designed for applications where an AC power source is not an option. Beckett GeniSys® Control uses a suitable cad cell flame sensor to control the motor, igniter, and solenoid valve. Interrupted duty ignition extends battery life by only drawing full load current during the ignition period.  Intermittent duty ignition is also available. Beckett CleanCut Pump has an integrated solenoid valve for smoother light-offs and cleaner shutdown. Air Guide provides high static pressure for smooth starts and minimal pulsation.  Available in 12 VDC and 24 VDC configurations, the ADC burner is conveniently powered by a standard direct current power supply.

About

Capacities

  • 0.75 to 2.50 GPH
  • 105,000 to 350,000 BTU/hr input

Fuels

  • No. 1 or No. 2 diesel fuel or kerosene
  • No. 1 or No. 2 heating oil (ASTM D396) only

Fuel Unit

  • Single stage or two stage

Ambient Operating Temperature

  • +32˚F (0˚C) Minimum
  • +115˚F (+46˚C) Maximum

Dimensions (standard)

  • Height: 11-1/2″
  • Width: 14-3/8″
  • Depth: 6 -9/16
  • Air tube diameter: 4″

Electrical Characteristics

  • Motor: 13.5 VDC, 1/6HP, 3450 RPM, 10 amps (max.), NEMA M-flange, rotation CCW when facing shaft end.
  • Power Supply: 13.5 VDC
  • Ignition: 20 KVpk / 30 mA interrupted duty OR optional continuous duty
  • Operating Load: 15 amps with igniter on, 8-10 amps with igniter turned off
  • Alternated Voltages or Frequency: Consult Customer Service

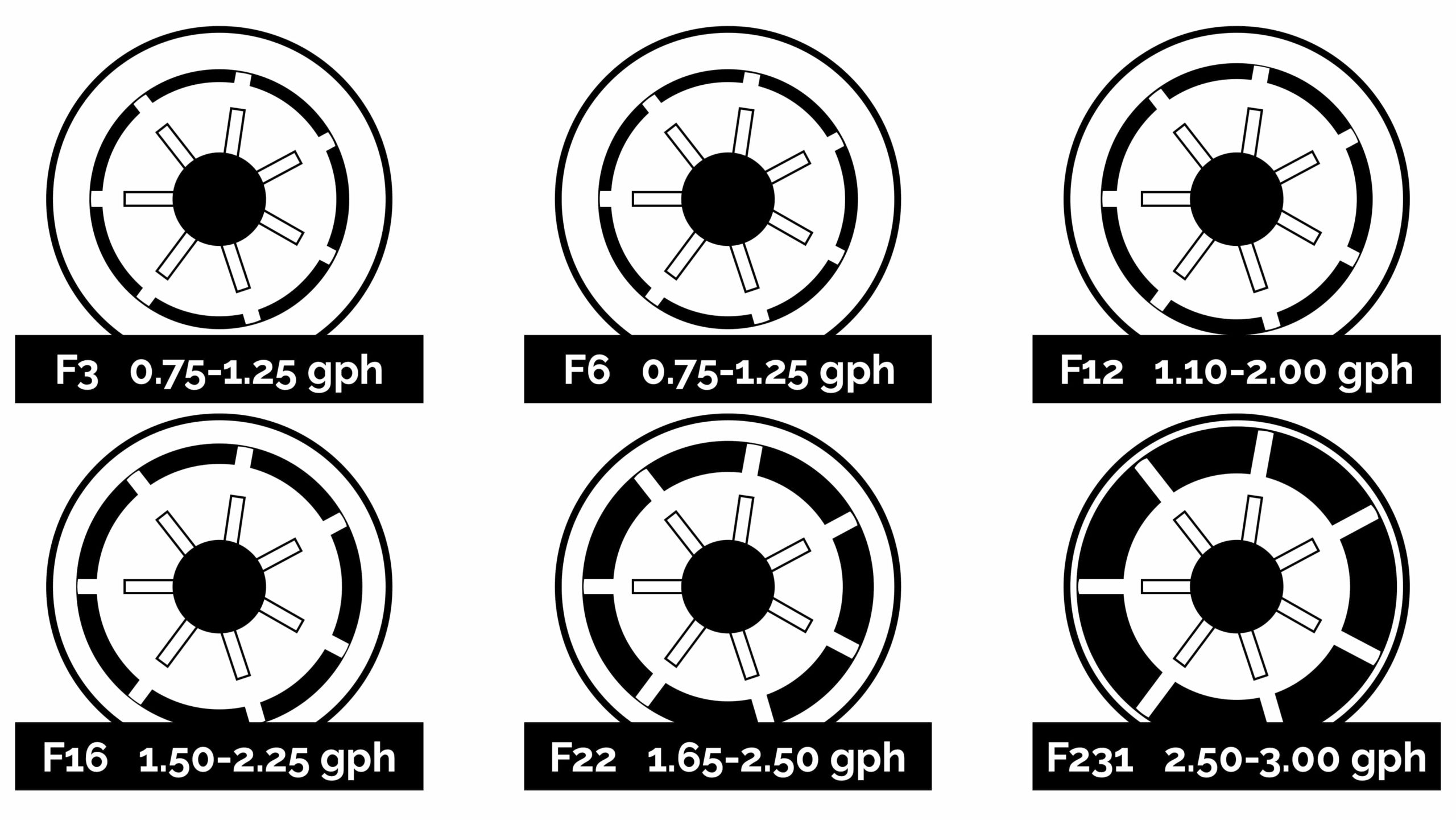

Flame Retention Heads

Air Tube Combination Codes

Firing Rate GPH
(min-max)
Head Static Plate Size ATC Codes for Usable Air Tube Lengths
4-1/2″ 5-3/8″ 6-5/8″
0.40 – 0.75 F0 3-3/8″ AF44XR AF53XR AF65XR
0.75 – 1.25 F3 2-3/4″ AF44XN AF53XN AF65XN
0.85 – 1.35 F4 2-3/4″ AF44WH AF53WH AF65WH
0.85 – 1.65 F6 2-3/4″ AF44YB AF53YB AF65YB
1.10 – 2.00 F12 2-3/4″ AF44XO AF53XO AF65XO
1.65 – 2.50 F22 2-3/4″ AF44XP AF53XP AF56XP
