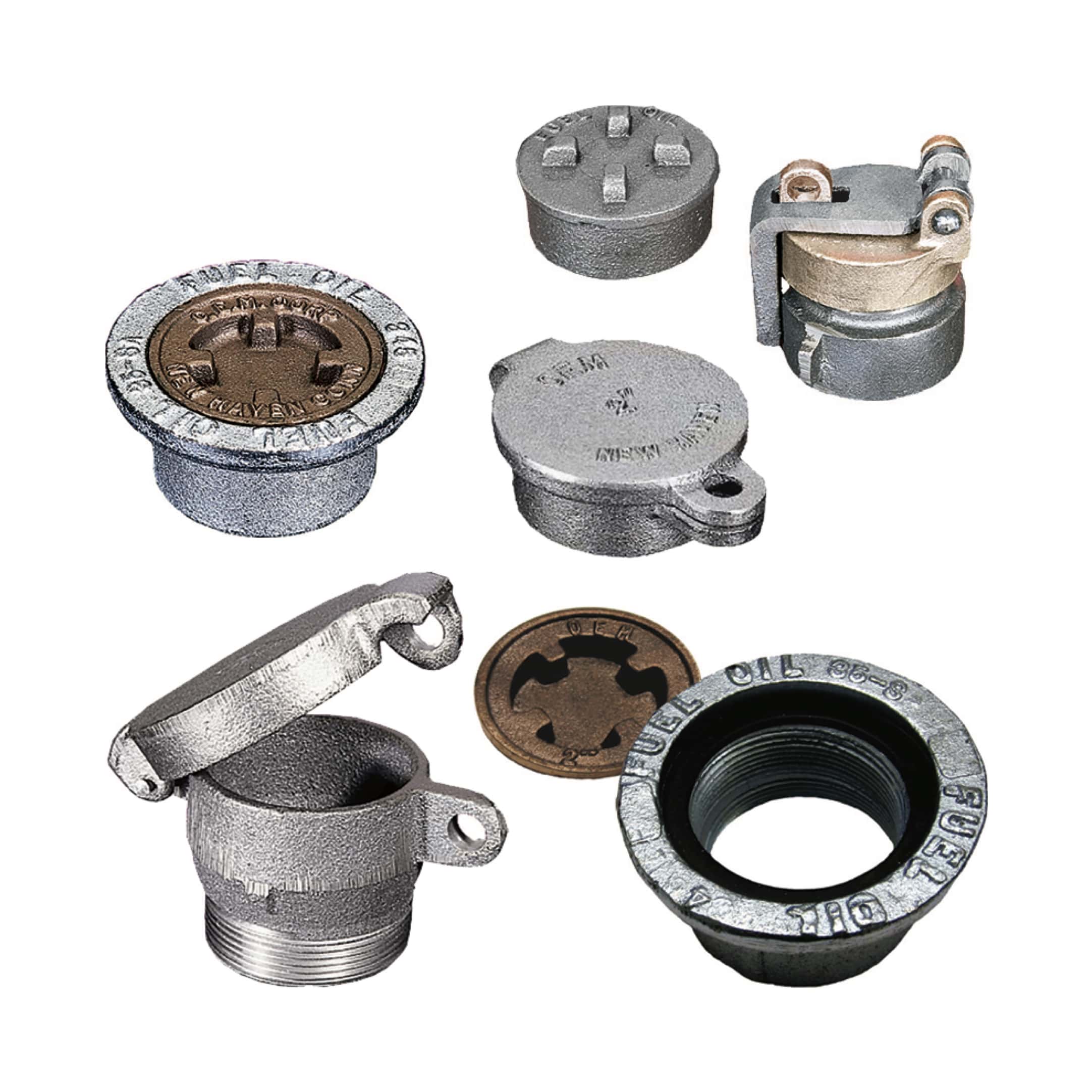

Fill Caps

Flush Fill Boxes

Flush Fill 14182

Available in 2″ to 4″ FPT1. Cover opens with pass key (sold separately). Ideal for flush installations in floors, driveways, and lawns. Rust-resistant, galvanized, cast iron body. Solid bronze cover with gasket seals tightly.

Part No.Description
141822″ FPT Fill Box Complete
 14202Fill Box Cover 2″ Cover Only – Less Gasket
 14204Fill Box Cover 3″ Cover Only – Less Gasket
 14205Fill Box Cover 4″ Cover Only – Less Gasket

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

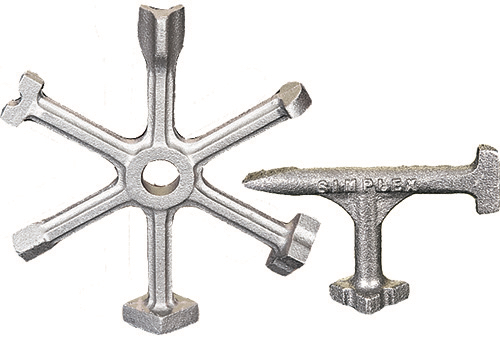

Fill Cap Keys

14365 KEY

Two-Way Key fits Fill Caps: 4181, 4182, 4183, 4184, 4185, 4307, 4308, 4309, 4316, 4317. Six-Way Key fits 90% of all caps.

Part No.Description
14349Six-Way Key
14365Two-Way Key

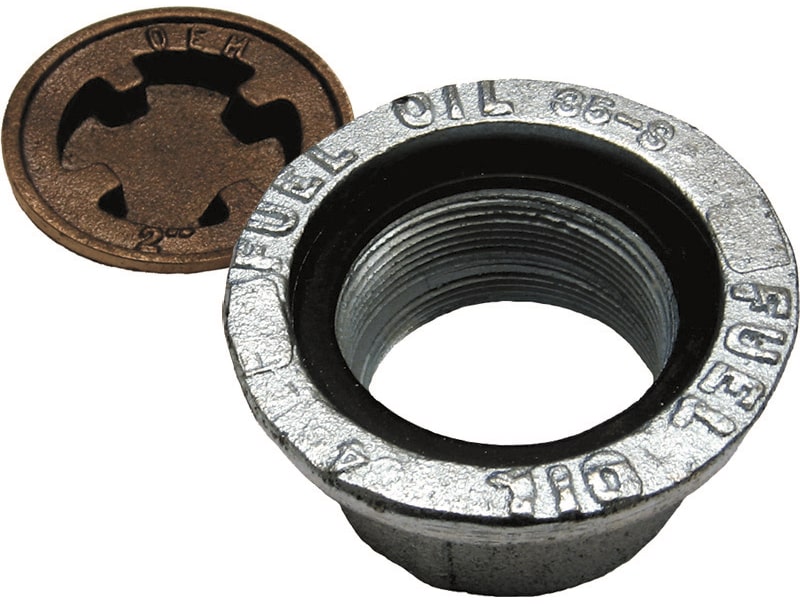

NYC Flush Fill Boxes

NYC Fill Cap

Meets N.Y. City requirements. Available in 2″ to 4″ FPT1. Ideal for flush installations in floors, driveways, and lawns. Rust-resistant, galvanized, cast iron body. Solid bronze cover with gasket seals tightly.

Part No.Description
143072″ FPT Fill Box Complete
143083″ FPT Fill Box Complete
143094″ FPT Fill Box Complete

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

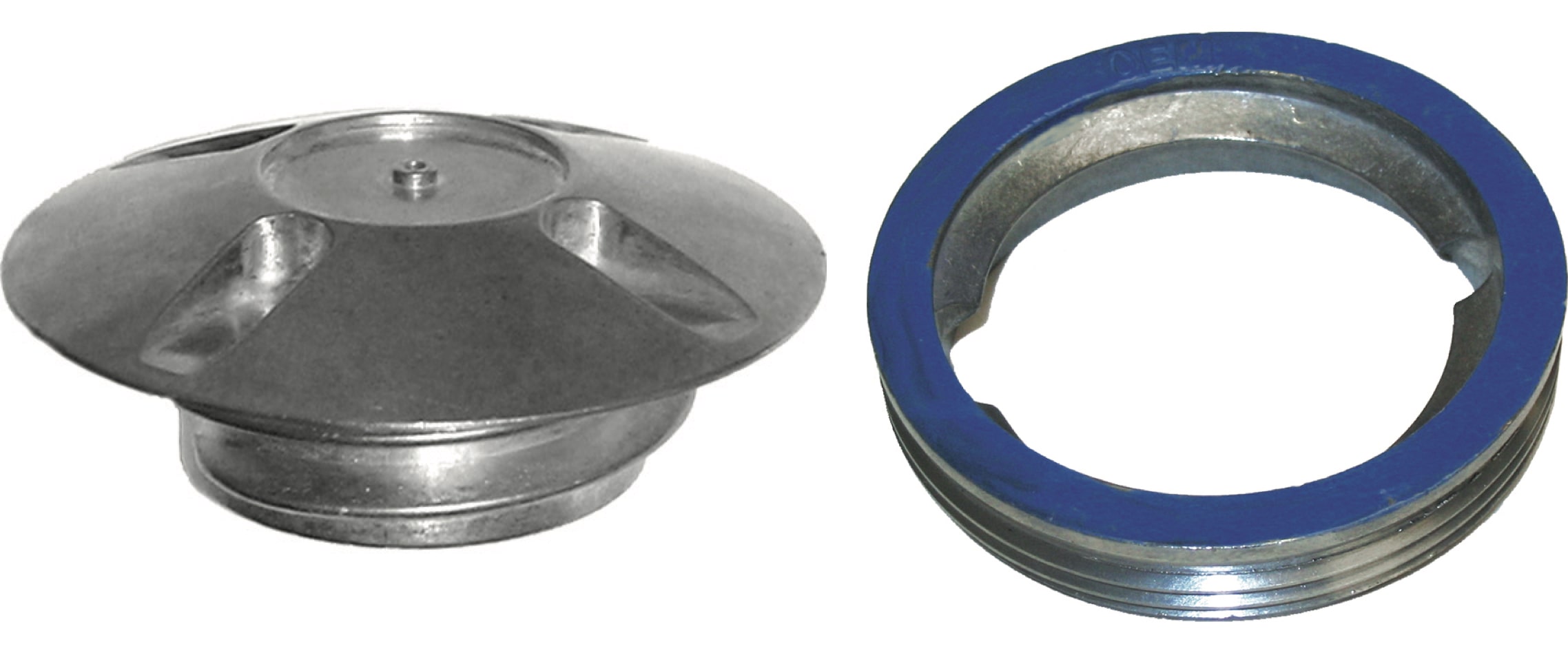

 Flush Fill Caps & Adapters

All Adapters have 2″ MPT1 threads.

Part No.Description
13110SM2″ MPT  Adapter – Small (Blue)
13110LG2″ MPT  Adapter – Large (Green)
13110XL2″ MPT  Adapter – X Large (Red)
13101Speed Kleen Flush Fill Cap
11603Adapter Installation / Removal Tool

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

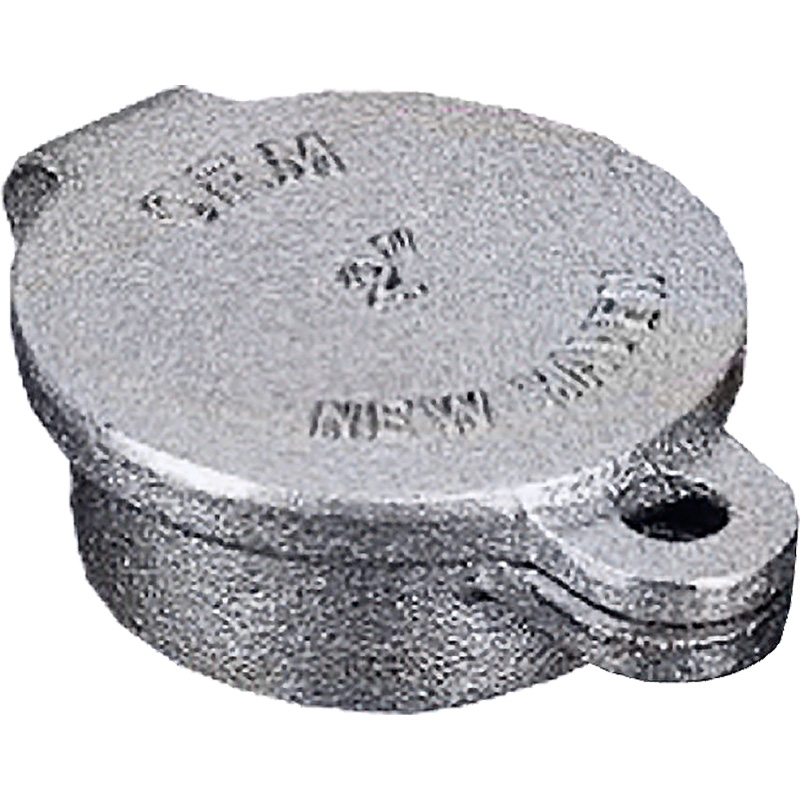

Hinged Fill Caps

FILLcap

Economical locking design and cast iron construction. MPTcaps in 1½” and 2″ sizes. FPT caps in 1½” through 4″ sizes. Vented design keeps out debris and water.

Part No.Description
141642″ MPT
141712″ FPT
141733″ FPT
141744″ FPT

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

Heavy Duty Hinged Fill Caps

FILLcap_HD

Durable locking design and zinc-plated, cast iron construction. Choice of 2″ MPT or FPT1. Vented design keeps out debris and water.

Part No.Description
160162″ FPT Galvanized
160172″ MPT Galvanized

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

One Piece Fill Caps

14040 FILL CAP

Economical one-piece design. Available in cast iron or aluminum. 2″ FPT1. Opens with pass key (sold separately). Economical one-piece design in cast iron or aluminum. Lockable Hasp Type with Brass cover.

Part No.Description
140401 PC Cast Iron Fill Cap 2″ FPT
140451 PC Aluminum Fill Cap 2″ FPT

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

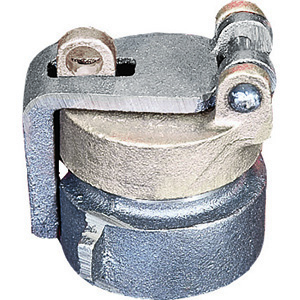

Lockable Hasp Type Fill Cap

14058 - FILL CAP lockagble

Solid cast iron construction, with malleable iron hasp. Brass cover with gasket provides a waterproof seal. Available in 2″ and 3″ FPT1 size. Economical one-piece design in cast iron or aluminum. Lockable Hasp Type with Brass cover.

Part No.Description
14058Hasp Type Fill Box 2″ FPT

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread
