Bushings

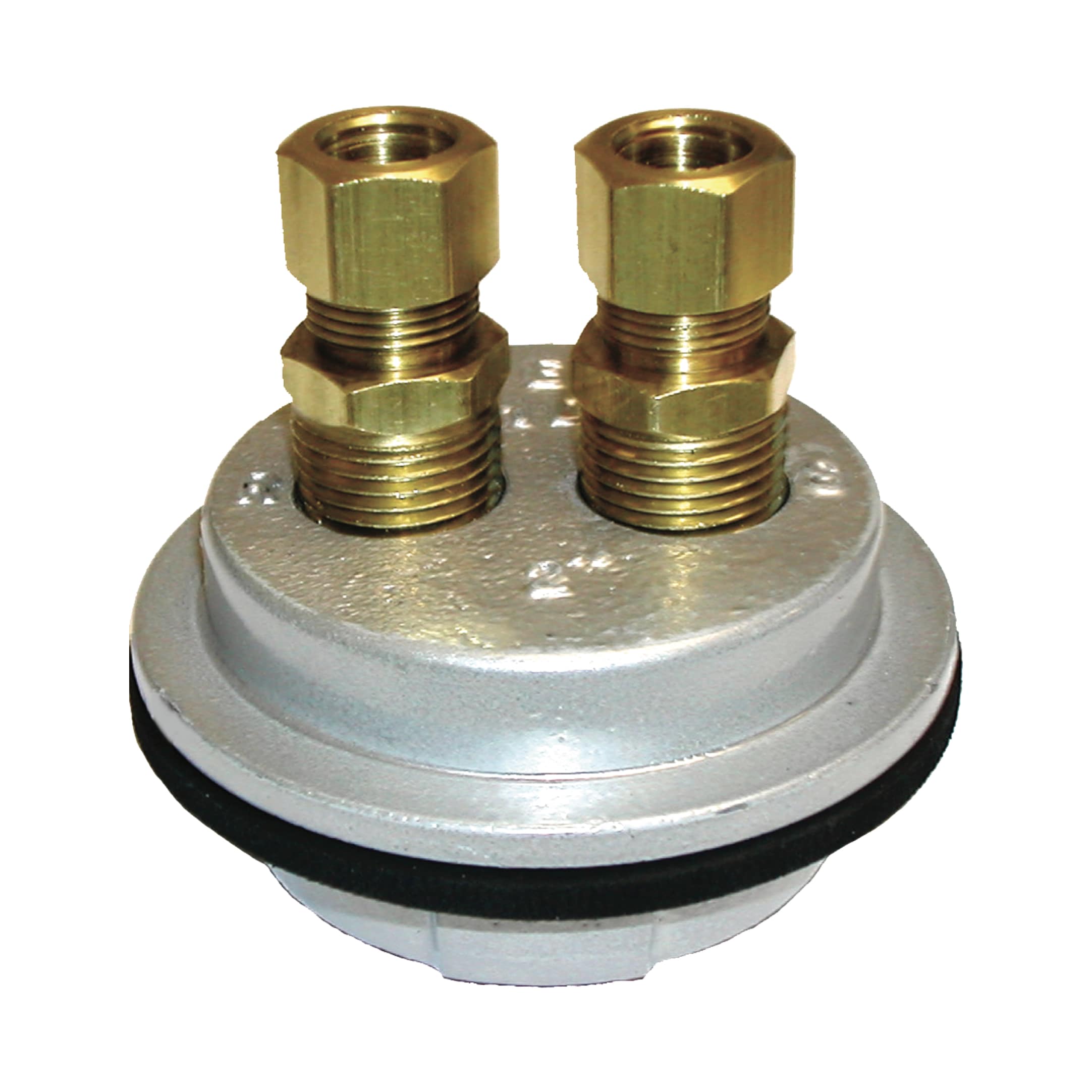

Duplex Tank Bushings

Product Description

  • Available in Triple-Tap and Four-tap designs
  • Ideal for two line, suction and return installations
  • Available with or without brass Slip-Thru compression fittings

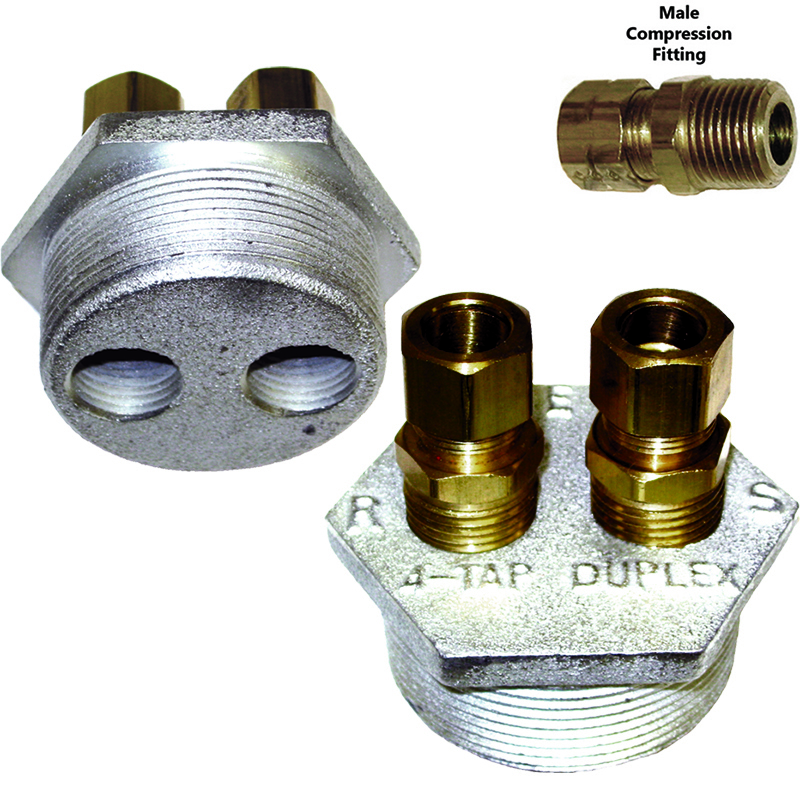

4-Way Tap (Slip-Thru male Compression Fittings)

4-way

Zinc plated cast iron bushing, 2″ male NPT for above ground or underground installations. Two bottom NPT taps allow for protection of both supply and return tubing. Available with or without fittings. Fittings available for ⅜”, ½”, and ⅝” copper tubing.

Complete with Fittings
Part No. Male NPT Tubing Size
Return Supply
14475 2″ ⅜” ⅜”
14476 2″ ½” ½”
14477 2″ ⅝” ⅝”
Tank Bushing Only
Part No. Male NPT Female NPT (4 Taps)
14479 2″ ⅜”
14480 2″ ½”

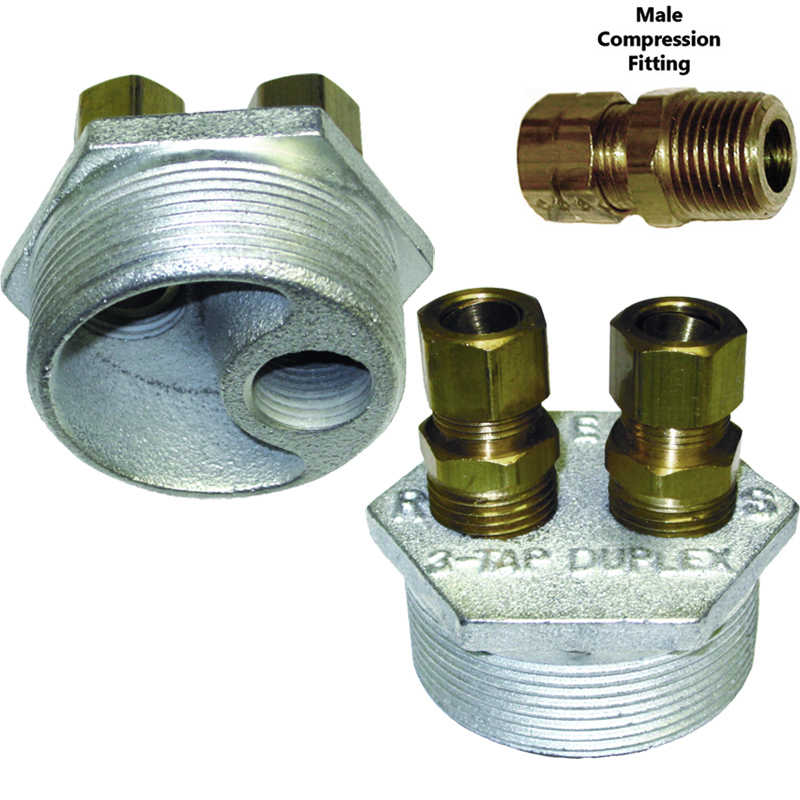

3-Way Tap (Slip-Thru male Compression Fittings)

3-way Bushing

Zinc plated cast iron bushing, 2″ male NPT for above ground or underground installations. Single bottom NPT tap allows protection of supply tubing. Available with or without fittings. Fittings available for ⅜”, ½”, and ⅝” copper tubing.

Complete with Fittings
Part No. Male NPT Tubing Size
Return Supply
14468 2″ ⅜” ⅜”
14469 2″ ⅜” ½”
14470 2″ ½” ½”
14471 2″ ½” ⅝”
Tank Bushing Only
Part No. Male NPT Female NPT (3 Taps)
14472 2″ ⅜”

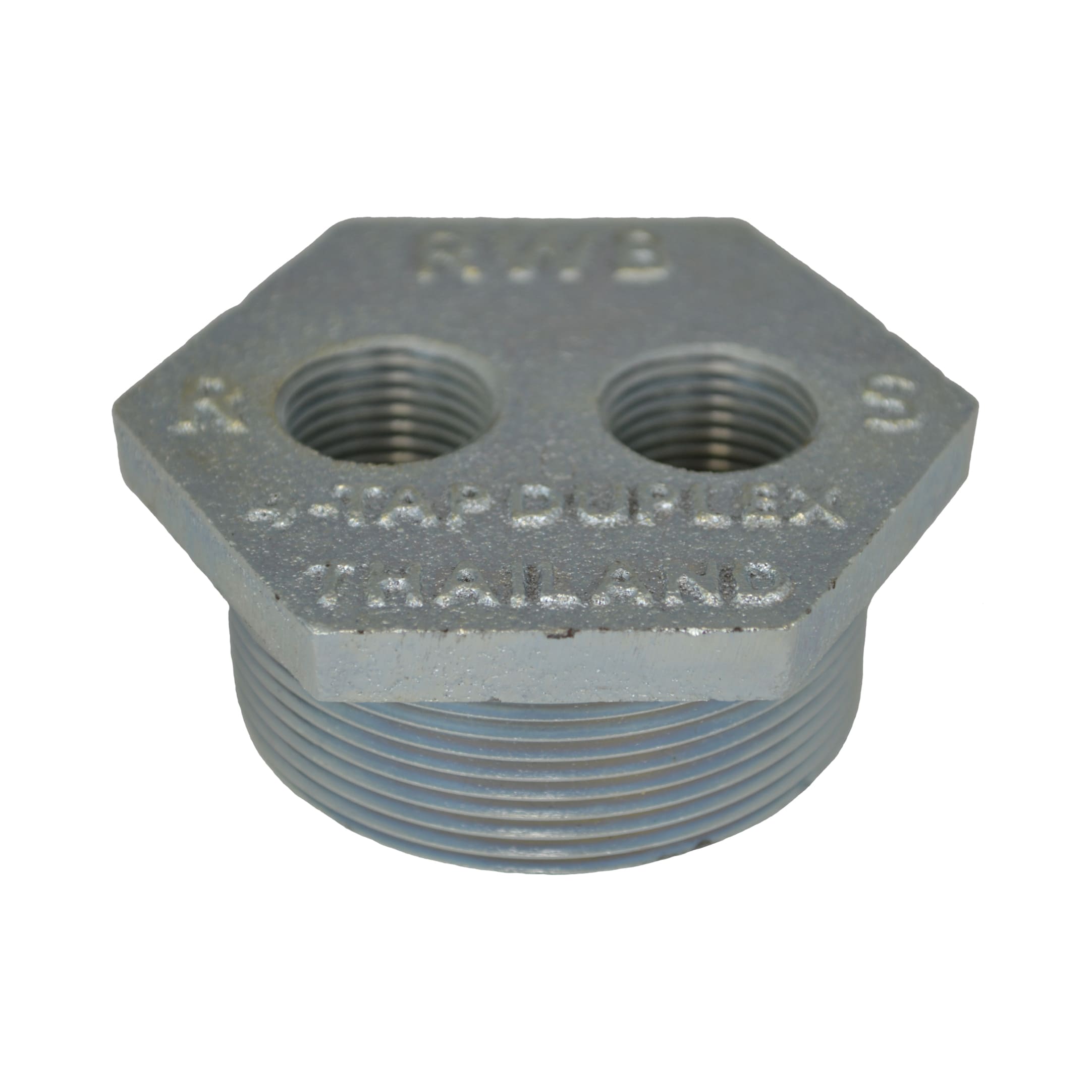

14473 2″ ½”

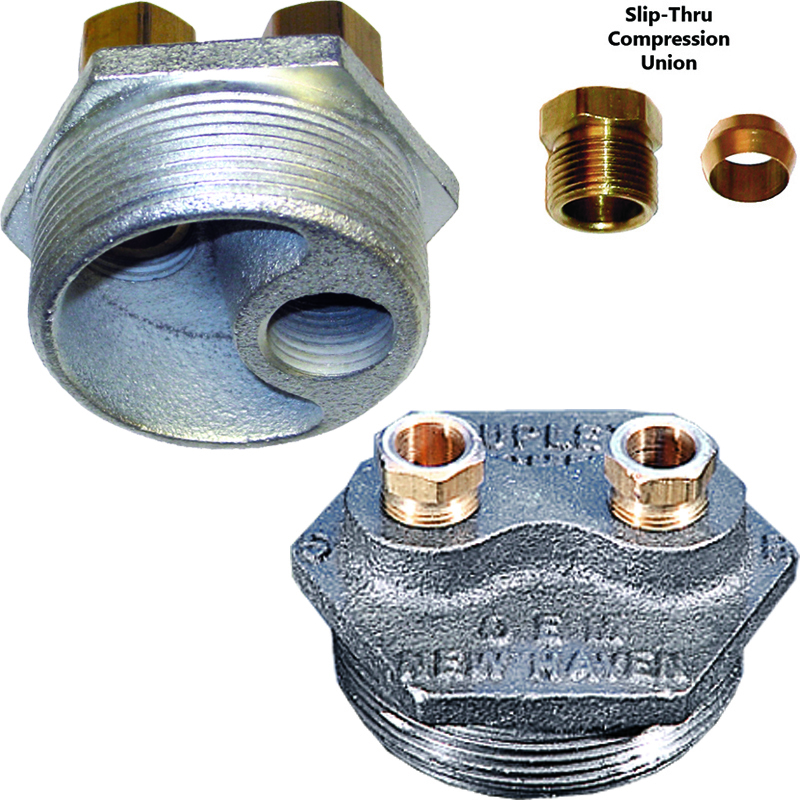

3-Way Tap (Slip-Thru Compression Union)

OLYMPUS DIGITAL CAMERA

Zinc plated cast iron bushing for above ground or underground installations. Available in 1½” and 2″ NPT. Single bottom NPT tap allows protection of supply tubing. Complete with fittings for ⅜” or ½” copper tubing.

Complete with Fitting
Part No. Male NPT Tubing Size
Return Supply
14446 1½” ⅜” ⅜”
14447 2″ ⅜” ⅜”

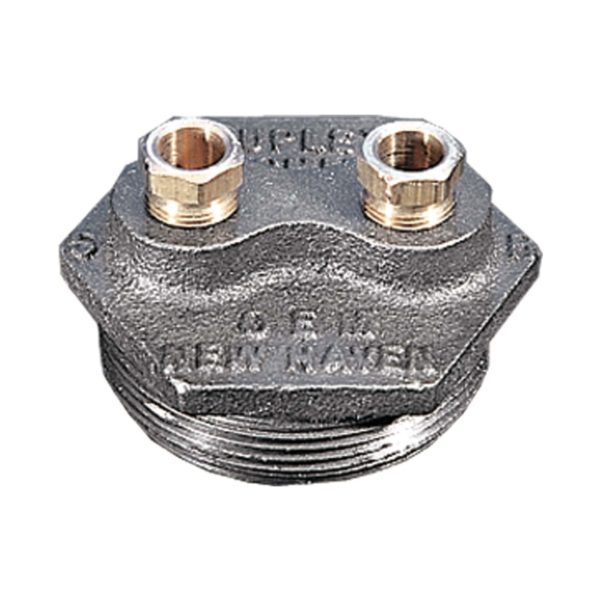

14448 2″ ½” ½”

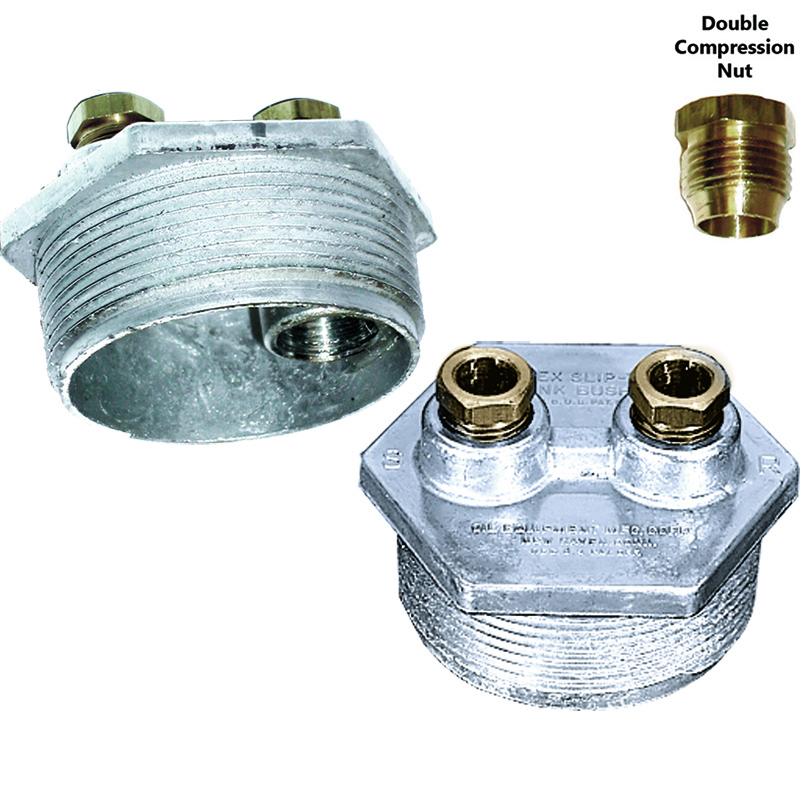

3-Way Tap (Double-Compression Nut)

3-way double comp

Economical Zinc die cast design, 2″ NPT, for above ground installations only. Single bottom NPT tap allows protection of supply tubing. Complete with fittings for ⅜” copper tubing.

Complete with Fittings
Part No. Male NPT Tubing
Return Supply
14434 2″ ⅜” ⅜”

Misc. Parts

Part No. Description
14440 Compression Nut For 14434
14454 Compression Nut ⅜”
14455 Compression Nut ½”
14461 Compression Sleeve ⅜”
14462 Compression Sleeve ½”
14482 Slip Thru Fitting ⅜”C X ⅜”IPS
14483 Slip Thru Fitting ⅜”C X ½”IPS
14484 Slip Thru Fitting ½”C X ½”IPS
14485 Slip Thru Fitting ⅝”C X ½”IPS

Literature

Vent Caps, Duplex, and Double Tap Tank Fittings Product Sheet
