Details
Features
- 20kV peak rating guarantees quick and efficient ignition
- Easy change to interrupted ignition to increase igniter life and save energy
- External heat sink eliminated for improved performance and reduced frequency of replacement due to overheating and arcing
- Lightweight, single piece design is compatible with Beckett and other burners to reduce required inventory
- Weighs less than 1 lbs versus an 8 lbs iron core transformer, making shipping and installation easier
- Fully potted with improved epoxy to withstand thermal shock and protect electronic components; waterproof
- Simplified wiring requirements and fewer wires for ease of installation
- A vacuum encapsulation process, using epoxy, provides resistance to moisture, excellent heat dissipation and electrical insulation
- Case material is high-temperature thermoplastic that provides high impact strength, scratch resistance, impenetrable to oil and most chemicals
- Adapts to multiple baseplates – making it the most versatile unit
on the market - Epoxy potting will not shrink or crack like tar-filled transformers
Technical Specifications
- Input Voltage: 21.6 – 32 Vdc
- Output Voltage: 20kV peak
- Output Current: 35 mA RMS
- Input Current: 2.0 A Maximum
- Ambient Operating Temperature: -40°F (-40°C) to 150°F (66°C)
- Storage Temperature: -40°F (-40°C) to 150°F (66°C)
- Moisture: 5 to 95% Relative Humidity
Dimensions

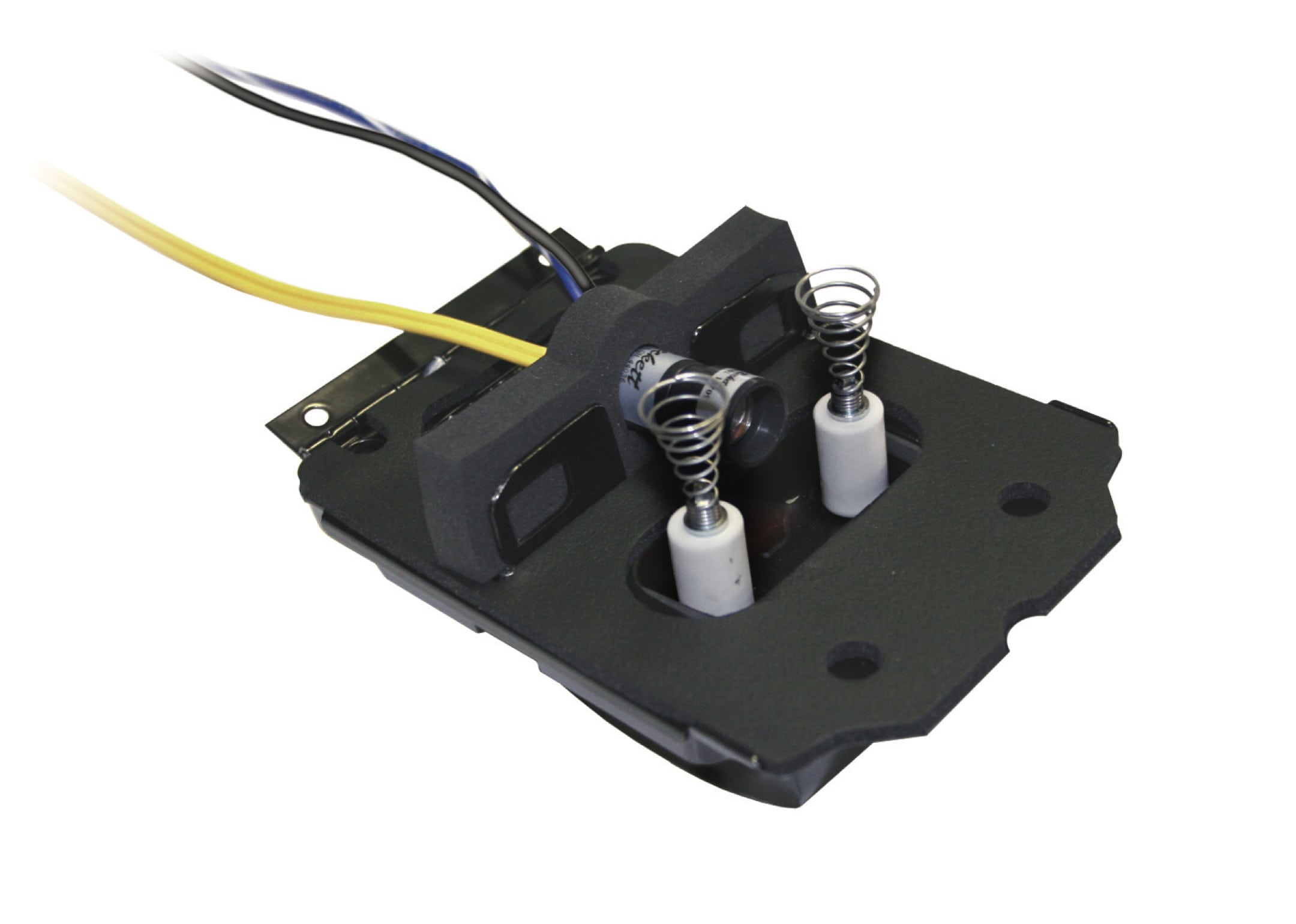

PowerLight Igniter Kits
Igniter | Description | Replaces |
5272001U | Beckett ADC 24 Vdc | 5218501U |
5272002U | Beckett SDC 24 Vdc | 5218502U |
5272005U | Igniter only | 5218503U |
PowerLight Igniter Baseplate Kits
Kit Part Number | Application |
51830U | Beckett A Housing |
51831U | Beckett S Housing |
