GeniSys® 7559 24V Oil Burner Control

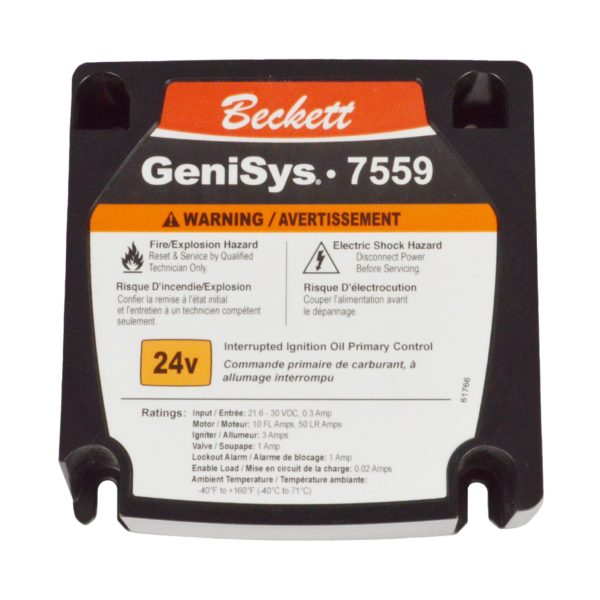

The Beckett GeniSys® 7559 Oil Burner Control is a potted (for high moisture environments) 24 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys® 7559 is used with the GeniSys® CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. The control operates the burner with interrupted ignition with a 15 second lockout time.

With the GeniSys® Contractor Tool 52082, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys® 7559 stores the last 15 cycles.

The DC GeniSys® control is also offered in a 12 VDC version as the Beckett GeniSys® 7556 12V Oil Burner Control.

About

Features & Benefits

  • Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
  • Epoxy potted for moisture resistance
  • Welded relay protection with redundant motor relays
  • High ambient temperature rating
  • Alarm output enables visual or audio indication of flame failure and lock out condition
  • Interrupted ignition
  • Relight function
  • Fused protection

Electrical Ratings

Inputs

    • Voltage: 24 Vdc nominal (21.6 to 30 Vdc)
    • Current: 220 mA plus burner motor, igniter, and valve loads

Outputs

    • Motor: 24 Vdc, 10 full load amps (FLA), 50 locked rotor amps (LRA)
    • Igniter: 24 Vdc, 3 A
    • Solenoid Valve: 24 Vdc, 1 A
    • Lockout Alarm: 24 Vdc, 1 A

Environmental Ratings

    • Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C)
    • Moisture: 5 to 95% RH, condensing

Available Models for GeniSys® 7559 24V Oil Burner Control

Control Part Number Lockout Time Valve-On
Delay Time1
Motor-Off
Delay Time1
7559A0000 15 sec
7559P1530 15 sec 15 sec 30 sec
7559P152M 15 sec 15 sec 2 min
7559P158M 15 sec 15 sec 8 min

1 Valve-on delay and motor-off delay timings on all models are programmable with Beckett GeniSys® Contractor Tool.

GeniSys® Contractor Tool

Add a GeniSys® Contractor Tool to fully utilize the features of the GeniSys advanced burner control. The GeniSys® Contractor Tool allows a technician to monitor and program the primary control variables. The display shows current burner status, control timings, and burner cycle history. The display’s programming mode allows a technician to customize both the pretime and post-time settings and a lockout service message.
