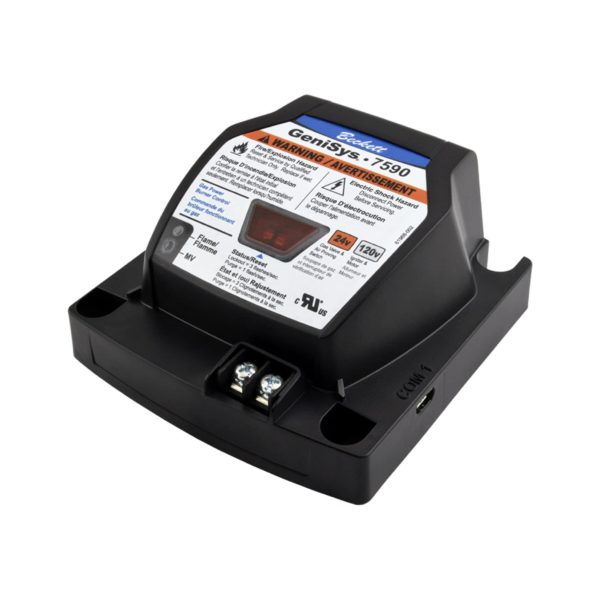

GeniSys® 7590 24V Gas Burner Control

The Beckett GeniSys® 7590 Gas Power Burner Control is a safety control designed for use on gas power burners. This control is intended for use in residential and light commercial gas heating applications. Applications may include boilers, furnaces, water heaters, space heating and commercial cooking equipment.

The 7590 provides supervision of a separate 120 VAC igniter, a 120 VAC combustion blower motor, a 24 VAC gas valve and 24 VAC connections for an air proving switch (on 7590 C, D). The control uses flame rectification principles to prove the presence of the burner flame. Basic diagnostic information is provided through 3 LEDs. Additional diagnostic information and control setup will be available through the BeckettLink 7700A diagnostic tool.

Details

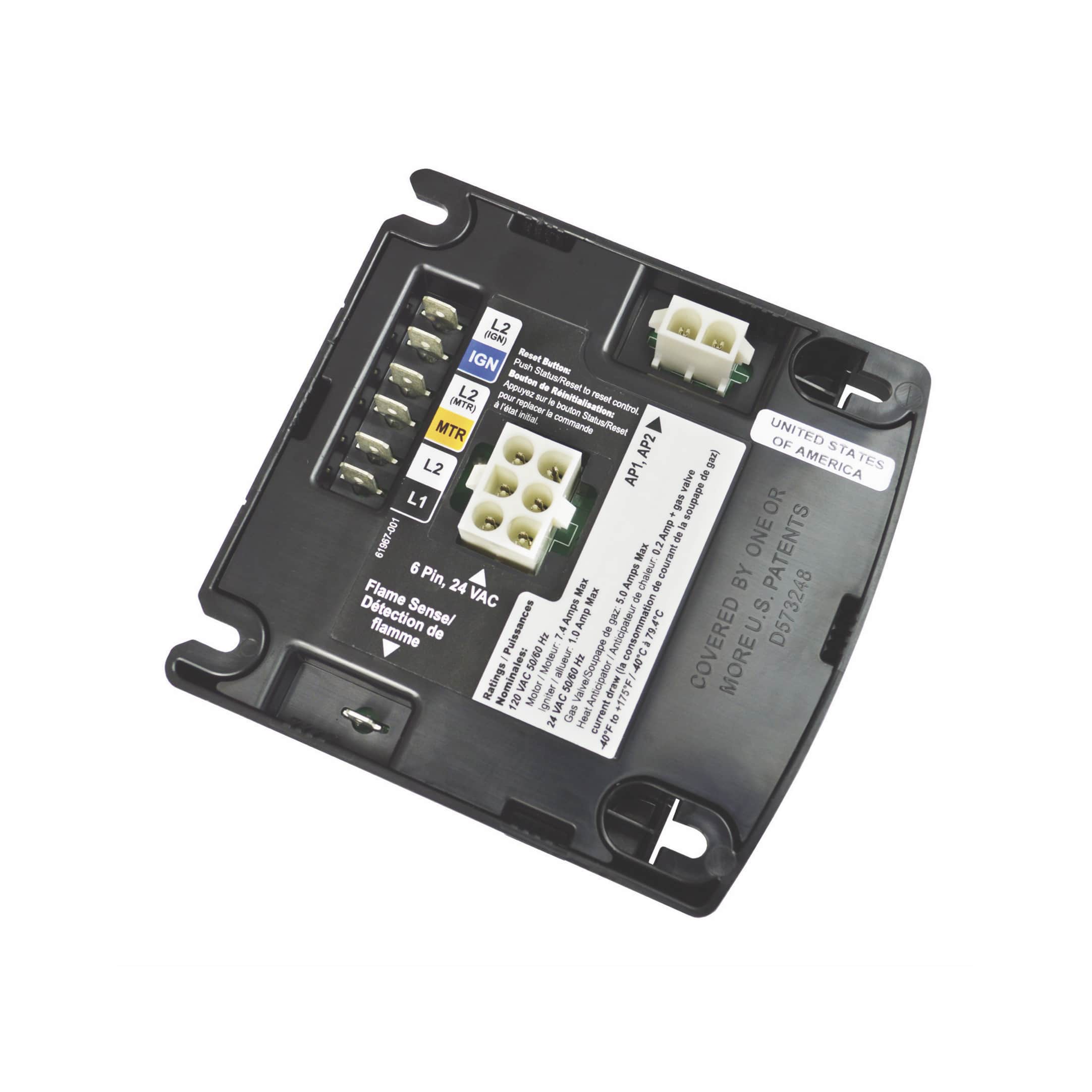

The Beckett GeniSys® Gas Power Burner Control is a 24 Vac primary safety control designed for use on gas power burners in residential and light commercial gas heating applications. Applications may include boilers, furnaces, water heaters, space heating and commercial cooking equipment. The GeniSys® Gas Power Burner Control provides supervision of a 120 volt burner motor and a separate 120 Vac igniter as well as a 24 Vac gas valve. The 7590C and D models provide connections for a combustion air proving switch and monitor the switch position to check for sticking or welded switch contacts.

    Features & Benefits

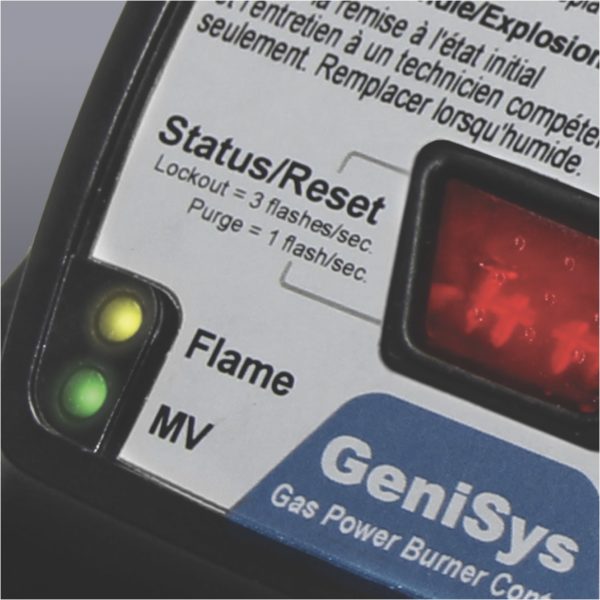

    • 3 LEDs provide basic diagnostic information
    • Single or multiple trials for ignition before lockout
    • Designed for easy mounting on a 4 x 4 junction
    • Selectable ignition timing 4-15 seconds
    • Selectable pre-purge timing 1-240 seconds
    • Selectable relight or recycle operation on loss of flame
    • The microprocessor is checked for proper operation before each cycle
    • Checks combustion air proving switch contacts on 7590C and D models
    • Gas valve relay check on each cycle
    • Available model (7590C) with manual reset button and non-volatile lockout
    • Communication Port links new alarm module and future products
    • For use on natural or LP gas
    • Provides reliable proof of flame using flame rectification



    The standard 7590 is designed for use on applications below 400,000 BTUs. For applications above 400,000 BTUs, contact Beckett’s Engineering Group.

    Electrical Ratings

    Inputs

      • Voltage:
        • 120 V, 50/60 Hz (igniter, motor)
        • 24 V (18-30 VAC) 50/60 Hz (gas valve and air proving switch)
      • Current Draw (run): 0.2 amps (control only)

    Outputs

      • Main Valve Rating: 2.0 amps
      • Motor Relay Rating: 7.4 amps (120 V)
      • Igniter Relay Rating: 1.0 amp (120 V)

    Approvals

      • UL listing per ANSI Z21.20, UL372 and CSA C22.2 No. 199

    Timings

      • Ignition Timing: 4-15 seconds
      • Pre-purge Timing: 1-240 seconds
      • Inter-purge Timing: 90-300 seconds

    Additional Ratings

      • Minimum Flame Current Required: 1.0 µA
      • Flame Failure Response Time: 0.8 seconds (maximum)
      • Thermostat Voltage: 24 Vac (if used)
      • Heat Anticipator Setting: 0.2 amps + gas valve current draw (control is not polarity sensitive)

    Environmental Ratings

    • Storage & Operating Ambient Temperature: -40°F to +175°F (-40°C to +79.4°C)
    • Moisture: 5 to 95% RH, non-condensing

      Available Models for GeniSys® 7590 24V Gas Burner Control

      Control Part Number Lockout Time 120 Volt Igniter and Blower Motor Output 24 Volt Gas Valve Output 2 Pin Connector for Pressure Switch Non-Volatile Lockout
      7590D0001 4 sec Yes Yes Yes No
      7590T0001 4 – 15 sec Yes Yes No No
      7590C0001 4 sec max Yes Yes Yes Yes

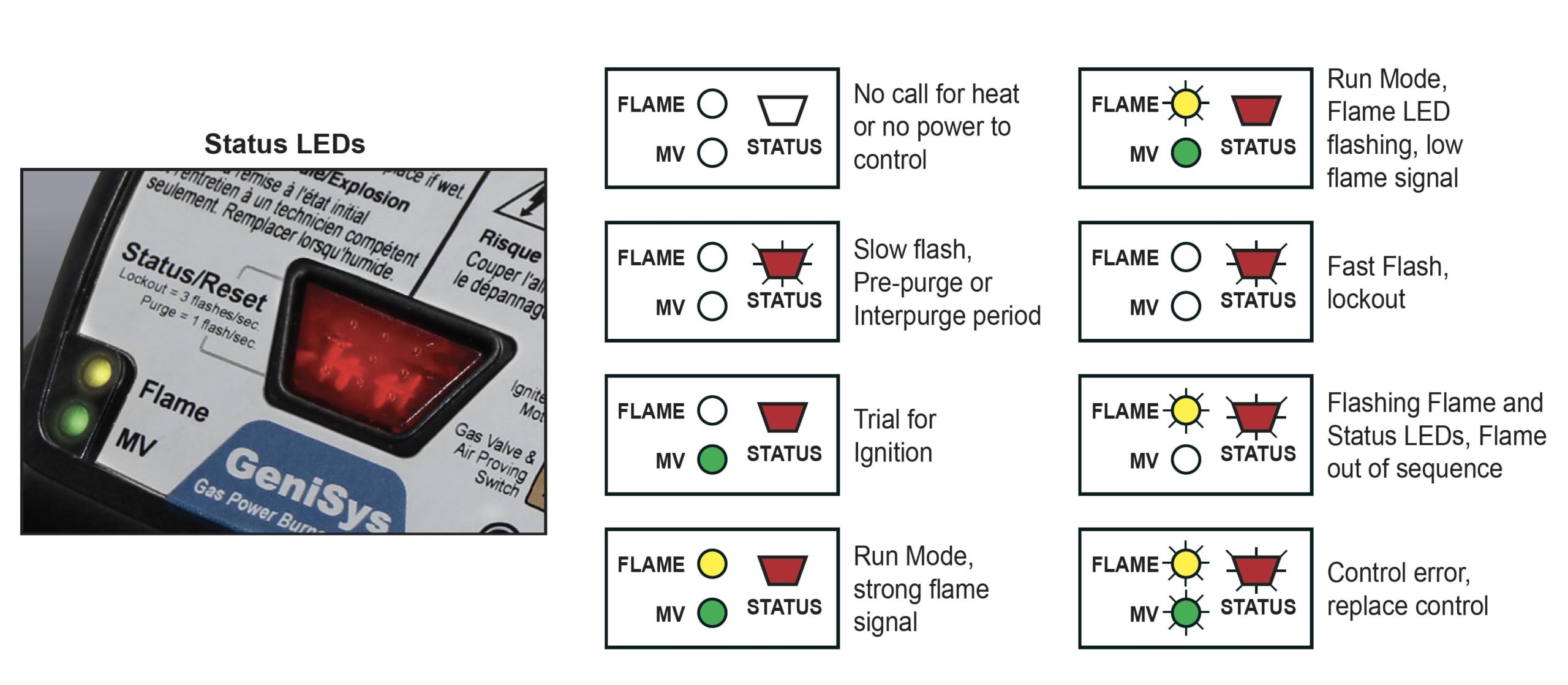

      Quick Status Check

      3 LEDs provide easy diagnostics for faster troubleshooting and service calls — service personnel can quickly determine control status.

      Available Lockout Sequences

      D and T Models – Lockout Sequences

      • Lockout after single trial for ignition
        (volatile lockout)
      • Lockout with retrial every 1 hour (volatile lockout)
      • Lockout after 3 trials for ignition (volatile lockout)

      C Models – Lockout Sequence

      • Shutdown after flame failure or failure to light (no relight attempt)
      • 5 minute minimum waiting time
      • 1 retry attempt allowed, then non-volatile lockout
      • Lockout must be manually reset using reset button
      BeckettLink® Diagnostic and Configuration Tool | 7700A

      BeckettLink® Diagnostic and Configuration Tool | 7700A

      The BeckettLink® Diagnostic and Configuration Tool 7700A is designed for use with a smart phone or tablet to configure and troubleshoot Beckett Gas Ignition Controls. When connected to a GeniSys® 7590 Gas Power Burner Control, the BeckettLink® Tool allows technicians to use the web browser on their cell phone or tablet to configure the control, check current status or troubleshoot the control using the diagnostic history.
