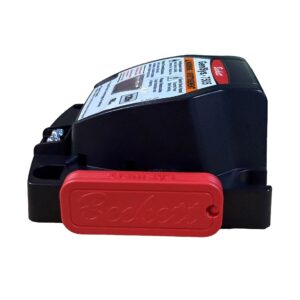

GeniSys® 7505 120V Oil Burner Control

The Beckett GeniSys® 7505 Oil Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys® 7505 is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.

About

Features & Benefits

  • Water Resistant
  • Thermostat and boiler control compatible
  • Customizable pre-time and post-time
  • Three status lights for system monitoring and diagnostics
  • Welded relay protection with redundant motor relays
  • Limited reset and limited recycle
  • Sleek, modern design
  • Technician Pump Prime mode
  • 5-Year Warranty
  • 7505a replaces Honeywell R8184G
  • 7505b replaces Honeywell R7184B
  • Two communication ports for adding alarm contacts, programming display, and/or future

    Electrical Ratings

    Inputs

      • Voltage: 102 to 132 Vac
      • Current: 150 mA plus burner motor, igniter, and valve loads
      • Frequency: 60 Hz

    Outputs

      • Motor: 120 Vac, 10 full load amps (FLA*), 60 locked rotor amps
        (LRA)
        • Note – Reduce motor FLA rating by igniter current
      • Igniter: 120 Vac, 3 A @ 0.7 PF min
      • Solenoid Valve: 120 Vac, 1 A @ 0.7 PF min
      • Thermostat Anticipator Current: 0.1 A
      • Thermostat Voltage: 24 Vac

    Application Ratings

      • Oil Burner Input: < 20gph
      • Control Programming: UL372 Group 2

    Environmental Ratings

      • Storage & Operating Ambient Temperature: -40°F to +150°F (-40°C to +65°C)
      • Moisture: 5 to 95% RH, non-condensing and non-crystallizing

    Approvals

      • Underwriters Laboratory Recognition per UL372 and UL1998,
        and CSA C22.2 No. 199



    Available Models for GeniSys® 7505 120V Oil Burner Control

    Control Part Number Lockout Time Valve-On
    Delay Time1
    Motor-Off
    Delay Time1
    7505A0000 15 sec
    7505B1500 15 sec 15 sec
    7505P1515 15 sec 15 sec 15 sec
    7505P1530 15 sec 15 sec 30 sec
    7505P152M 15 sec 15 sec 2 min

    1 Valve-on delay and motor-off delay timings on all models are programmable with Beckett GeniSys® Contractor Tool.
