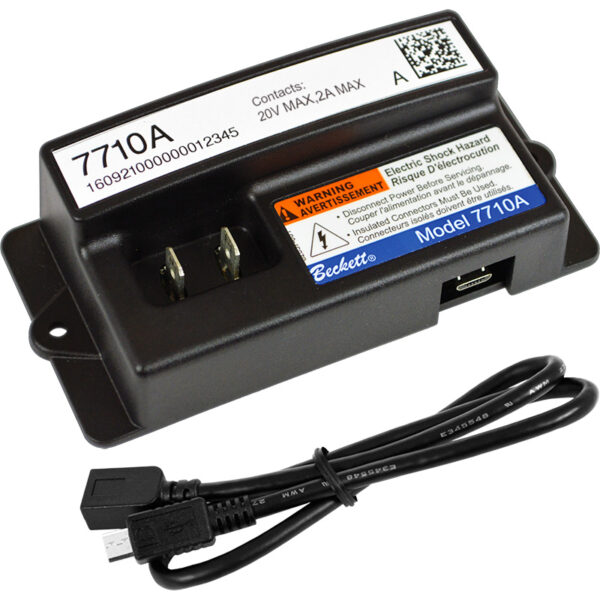

7710AU Gas Ignition Control Lockout Alarm Module

The Beckett 7710AU Gas Ignition Control Lockout Alarm Module is an optional accessory designed specifically for use with the Beckett 7590 GeniSys® gas burner controls. The retrofitable alarm module sends a closed relay contact to a home’s existing alarm panel to indicate a locked-out burner. The module can be used for either 120 VAC or 5 VDC applications.

Features

The 7710AU Gas Ignition Control Lockout Alarm Module is an optional accessory designed specifically for use with Beckett 7586  and Beckett 7590 GeniSys® Gas Ignition Controls. The alarm module provides the interface between the gas ignition control and an existing alarm panel or any alarm mechanism. When the ignition control locks out, the normally open alarm contacts close to complete the circuit to the alarm or alarm panel. The 7710AU alarm module does not supply any power to the terminals. All power for lights, buzzers, horns or alarm panels must be provided from another power source.

  • The alarm module can be added any time in the field
  • Provides interface between the ignition control and an existing alarm panel or alarm device
  • Closes relay contacts when control locks out
  • Alarm module can be used for AC or DC voltage applications
  • Wide voltage range 5-120 V (AC or DC)
  • Easy to install – plugs directly into the com port on the 7586 or 7590 gas ignition control



Specifications

  • Alarm Module Contact Switching Current:
    10 mA to 2 Amps (AC or DC)
  • Alarm Module Switching Voltage:
    5 to 120V (AC or DC)
  • Storage and Operating Temperature:
    -40F to +175F (-40C to +79.5C)
  • Humidity (noncondensing and non-crystalizing):
    5 to 95% RH

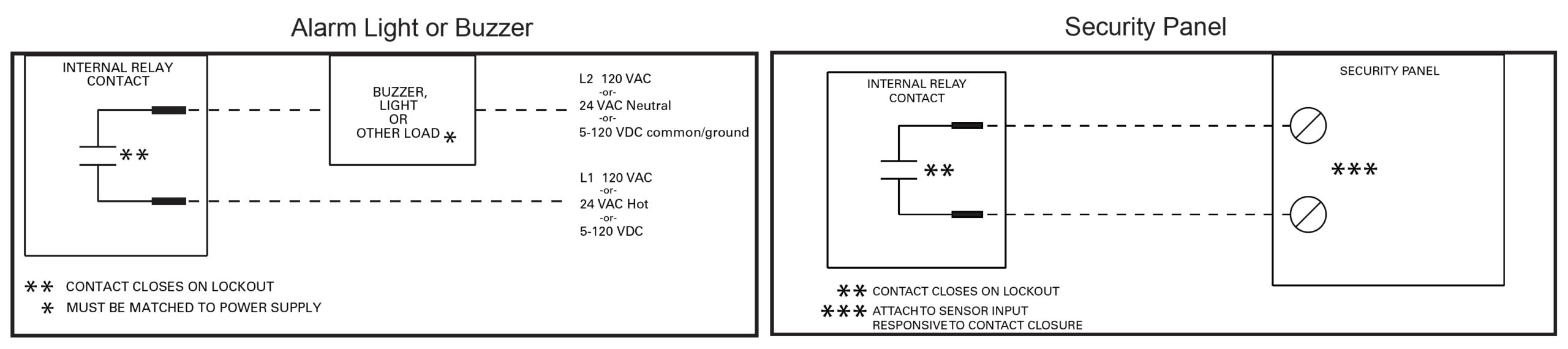

7710A Gas Control Lockout Alarm Wiring
