Features & Benefits
- Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
- Valve-on delay / motor-off delay — field-programmable with Beckett GeniSys® Contractor Tool
- Epoxy potted for moisture resistance
- Welded relay protection with redundant motor relays
- High ambient temperature rating
- Alarm output enables visual or audio indication of flame failure and lock out condition
- Interrupted ignition
- Relight function
- Fused protection
- 15 second lockout time
- Communication port
Electrical Ratings
Inputs
-
- Voltage: 12 Vdc nominal (11 to 16 Vdc)
- Current: 160 mA plus burner motor, igniter, and valve loads
Outputs
-
- Motor: 12 Vdc, 20 full load amps (FLA), 100 locked rotor amps (LRA)
- Igniter: 12 Vdc, 5 A
- Solenoid Valve: 12 Vdc, 2 A
- Lockout Alarm: 12 Vdc, 2 A
Environmental Ratings
-
- Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C)
- Moisture: 5 to 95% RH, condensing

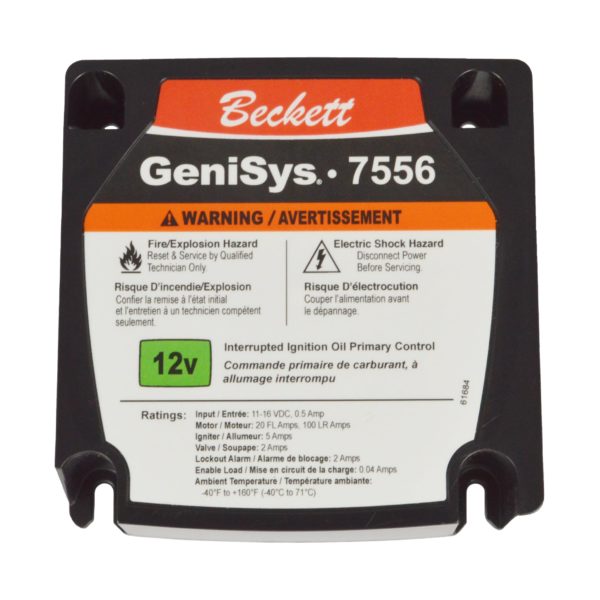

Available Models for GeniSys® 7556 12V Oil Burner Control
Control Part Number | Lockout Time | Valve-On Delay Time1 |
Motor-Off Delay Time1 |
7556A00002 | 15 sec | – | – |
7556P15302 | 15 sec | 15 sec | 30 sec |
7556P15602 | 15 sec | 15 sec | 1 min |
7556P152M2 | 15 sec | 15 sec | 2 min |
7556P158M2 | 15 sec | 15 sec | 8 min |
1 Valve-on delay and motor-off delay timings on all models are programmable with Beckett GeniSys® Contractor Tool.
2 Replaces the Beckett 7434 control
GeniSys® Contractor Tool
Add a GeniSys® Contractor Tool to fully utilize the features of the GeniSys advanced burner control. The GeniSys® Contractor Tool allows a technician to monitor and program the primary control variables. The display shows current burner status, control timings, and burner cycle history. The display’s programming mode allows a technician to customize both the pretime and post-time settings and a lockout service message.
