Reprogramming Your Burner Control with a Beckett Contractor Tool

Aug 4, 2017 | Burner & System Control Tutorials, Burner Controls, Tutorials

beckett contractor toolThis quick tutorial will guide you through the steps on how to change Pre-Purge and Post-Purge Timings on a GeniSys Control. In this example we will change a GeniSys 7505A 0000 Control to a 7505P 152M control in a few easy steps.

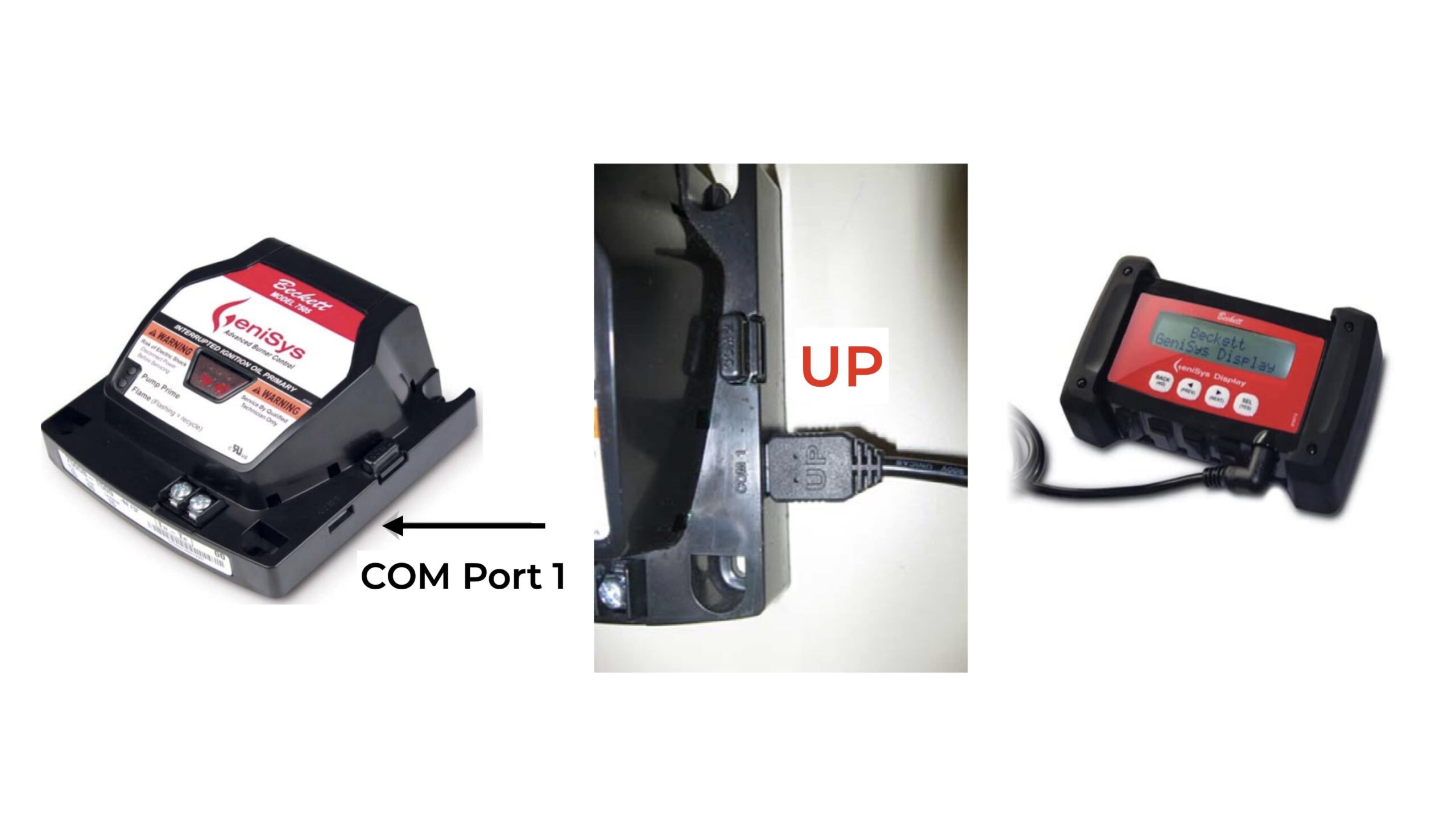

Begin by plugging in the Contractor Tool

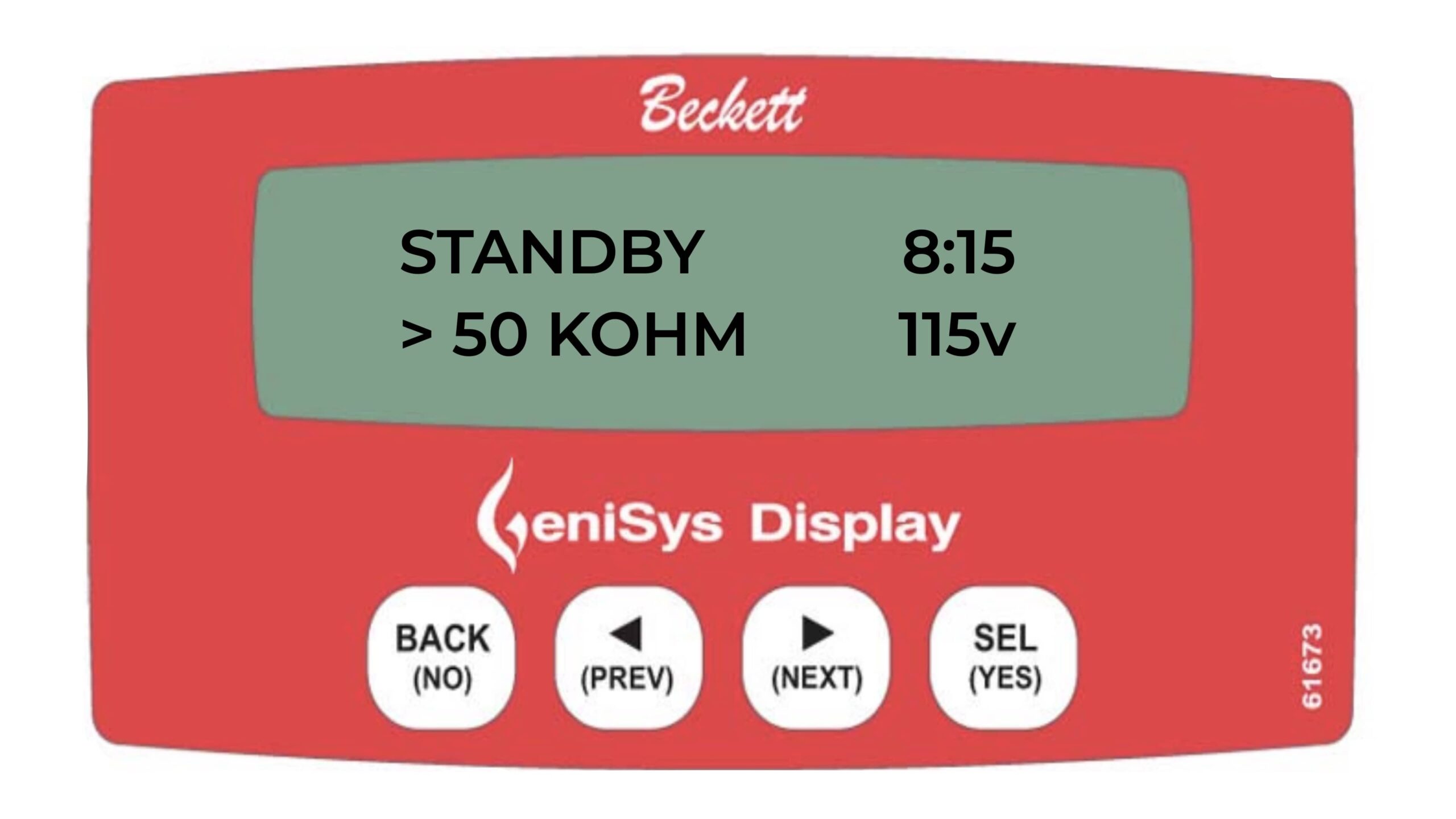

Press the NEXT key

Press and hold the NEXT key for 3 seconds or until the screen changes

Press the SEL/YES key

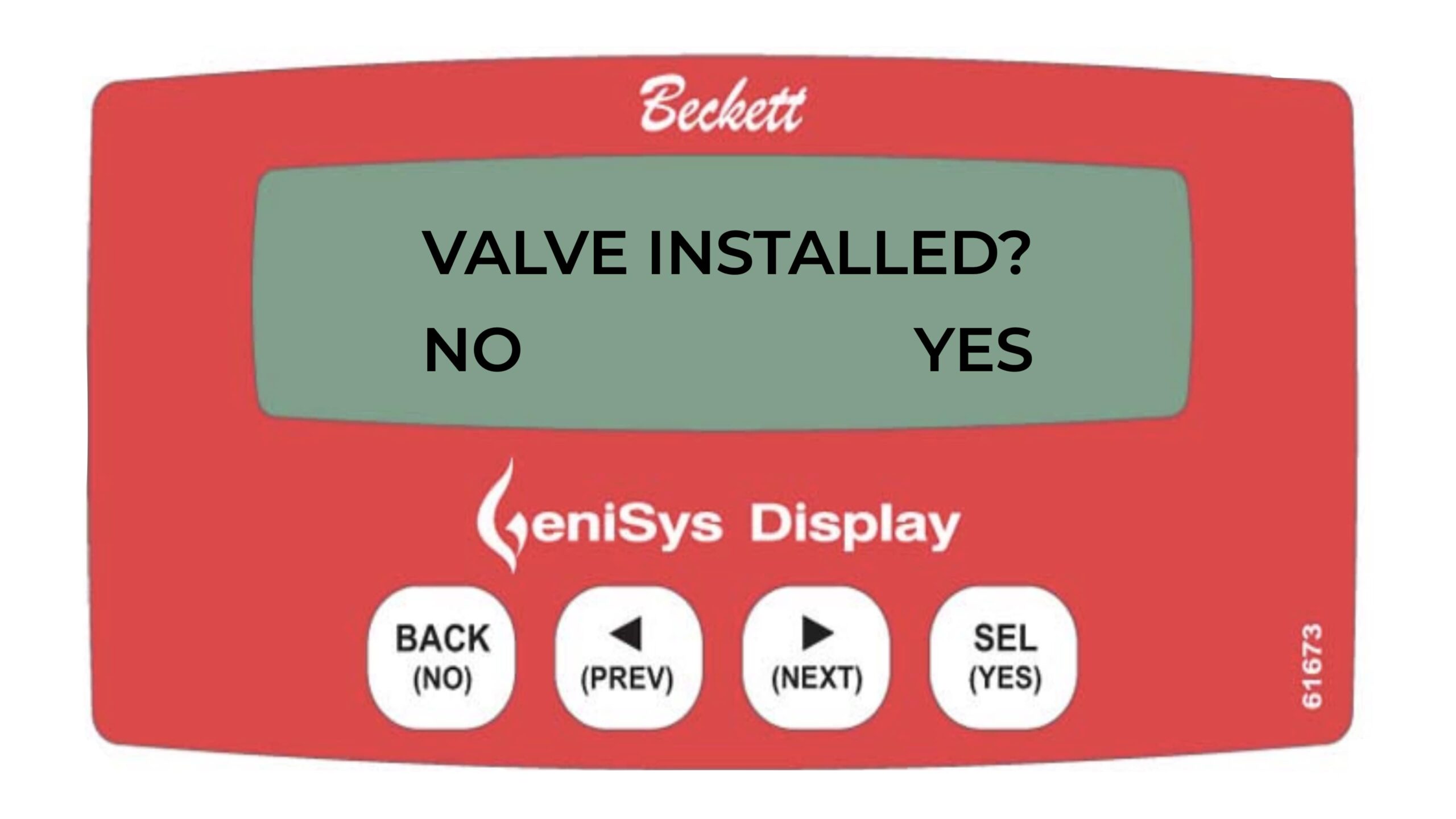

Press the YES key if an oil valve or CleanCut Pump is installed

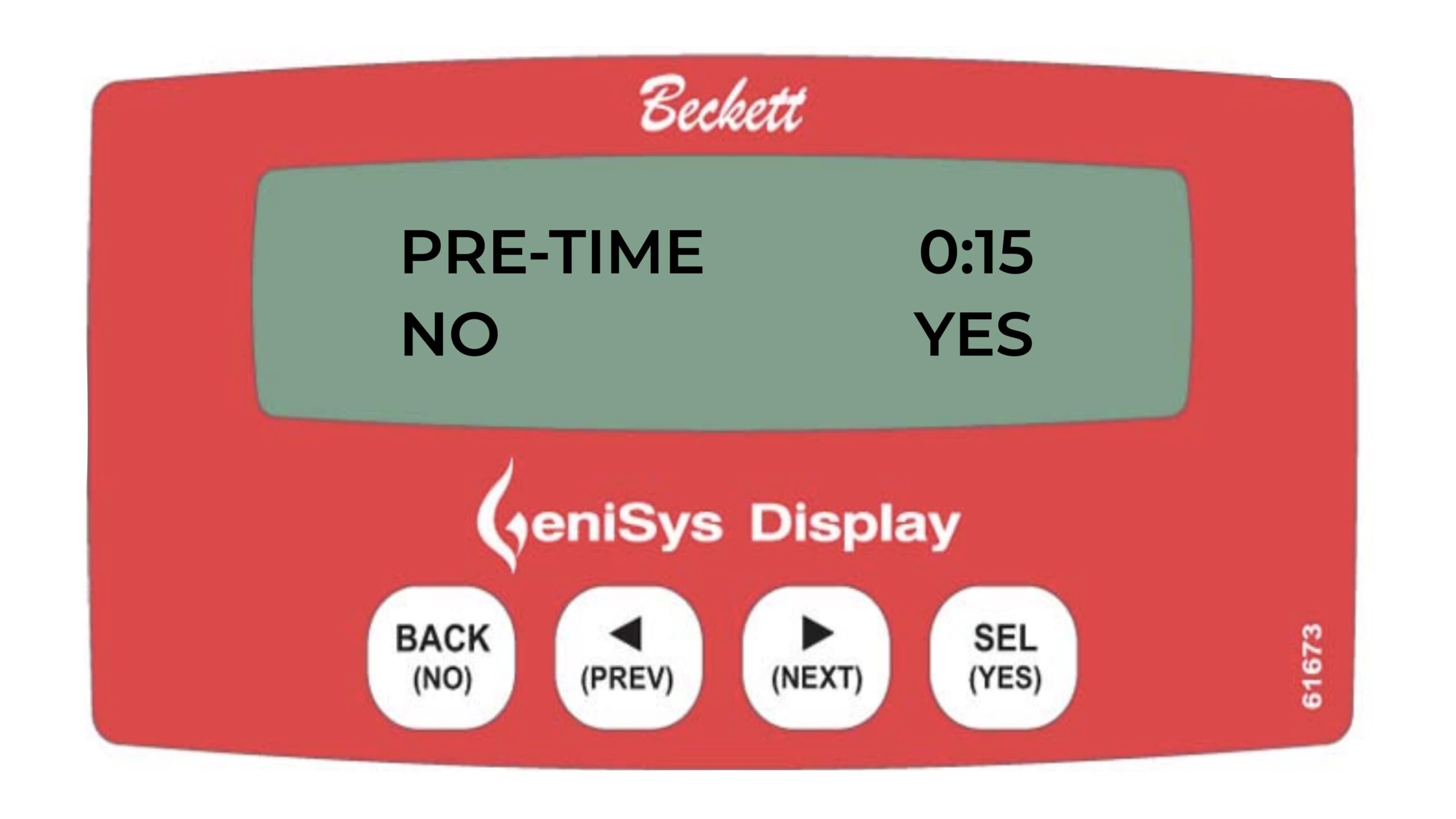

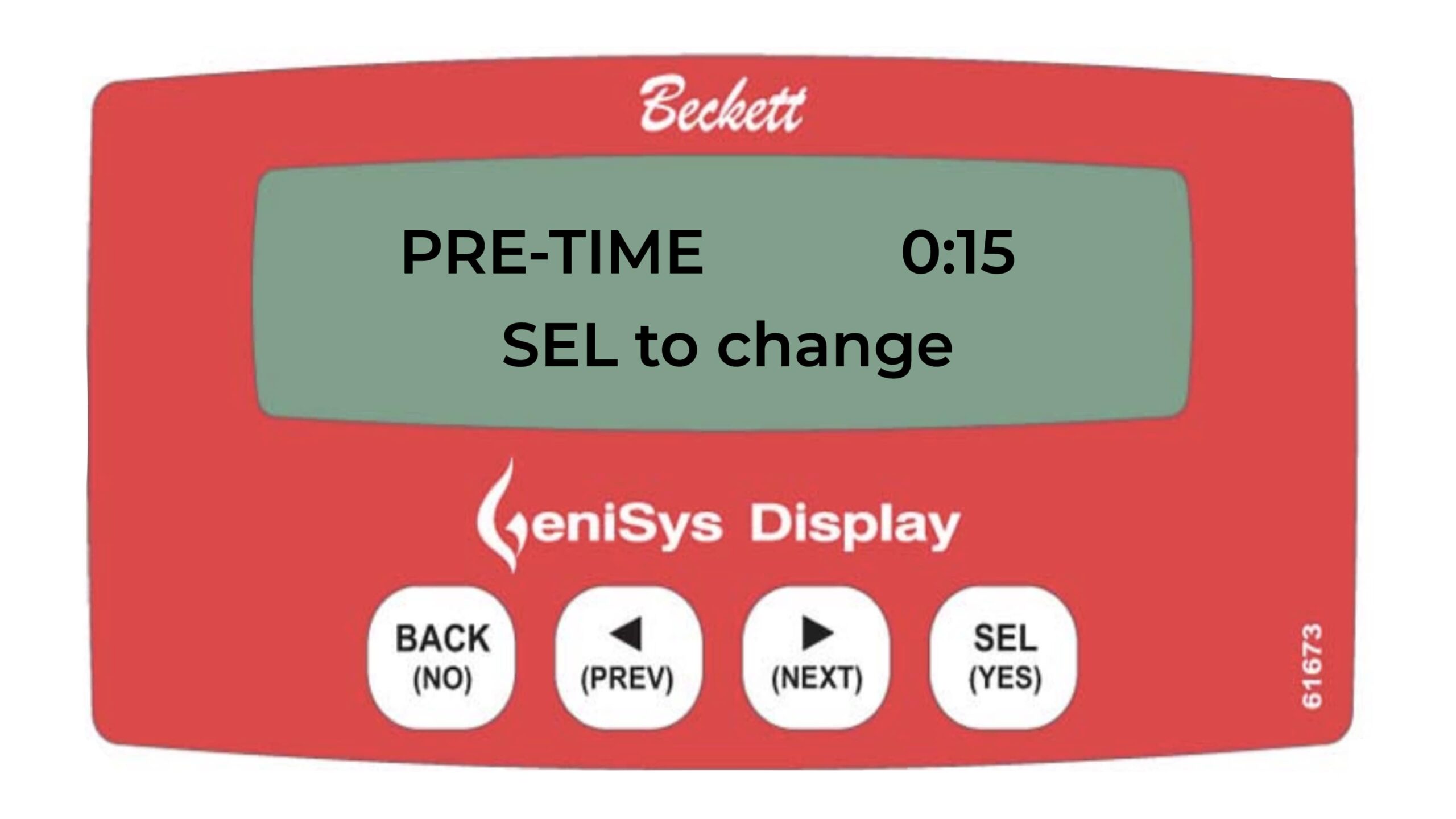

Press the NEXT key to set the Pre-Purge Timing

Press the SEL/YES key

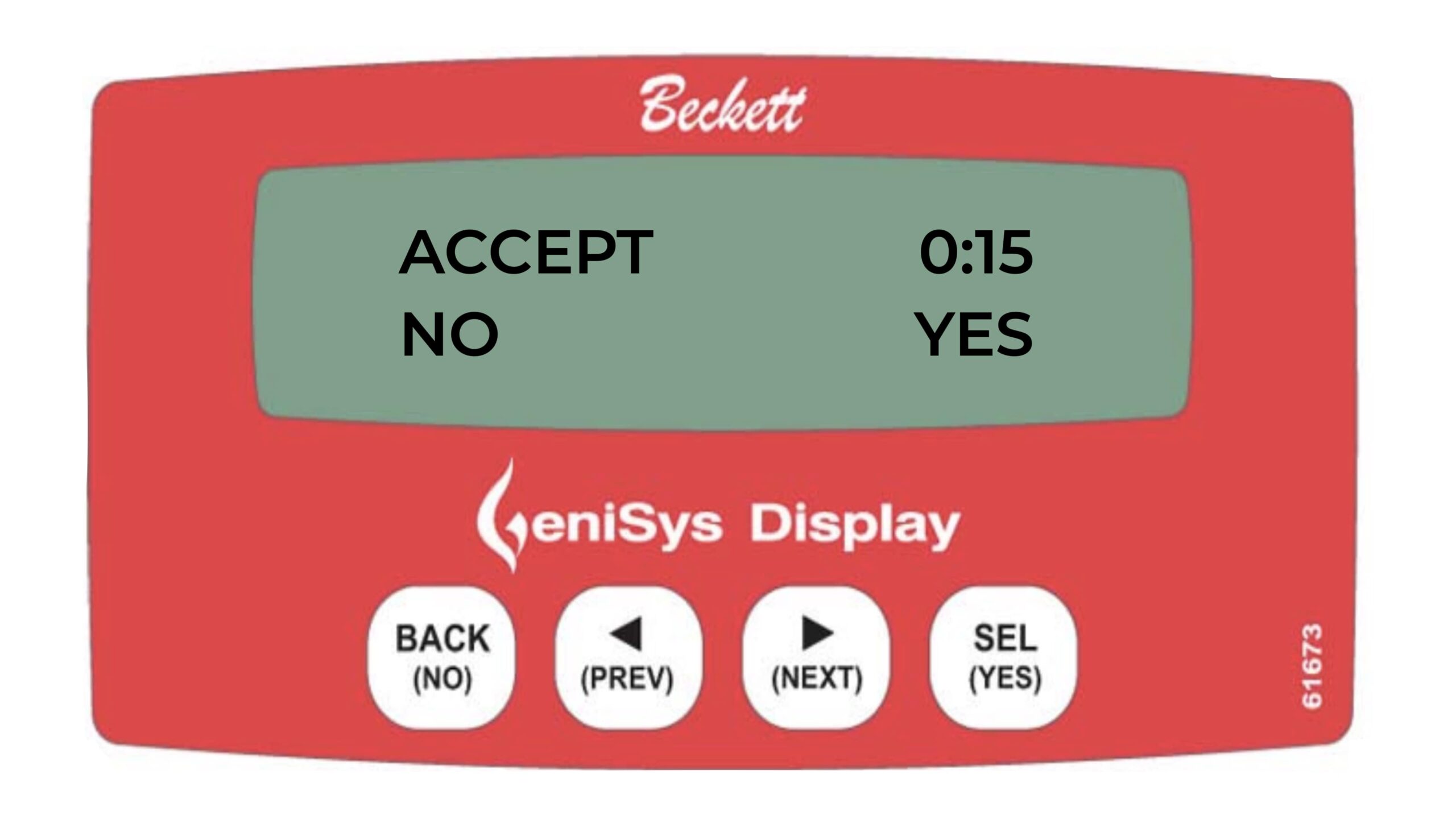

Accept by pressing the YES key again

Pre-Time is now set… press NEXT to set the Post-Purge

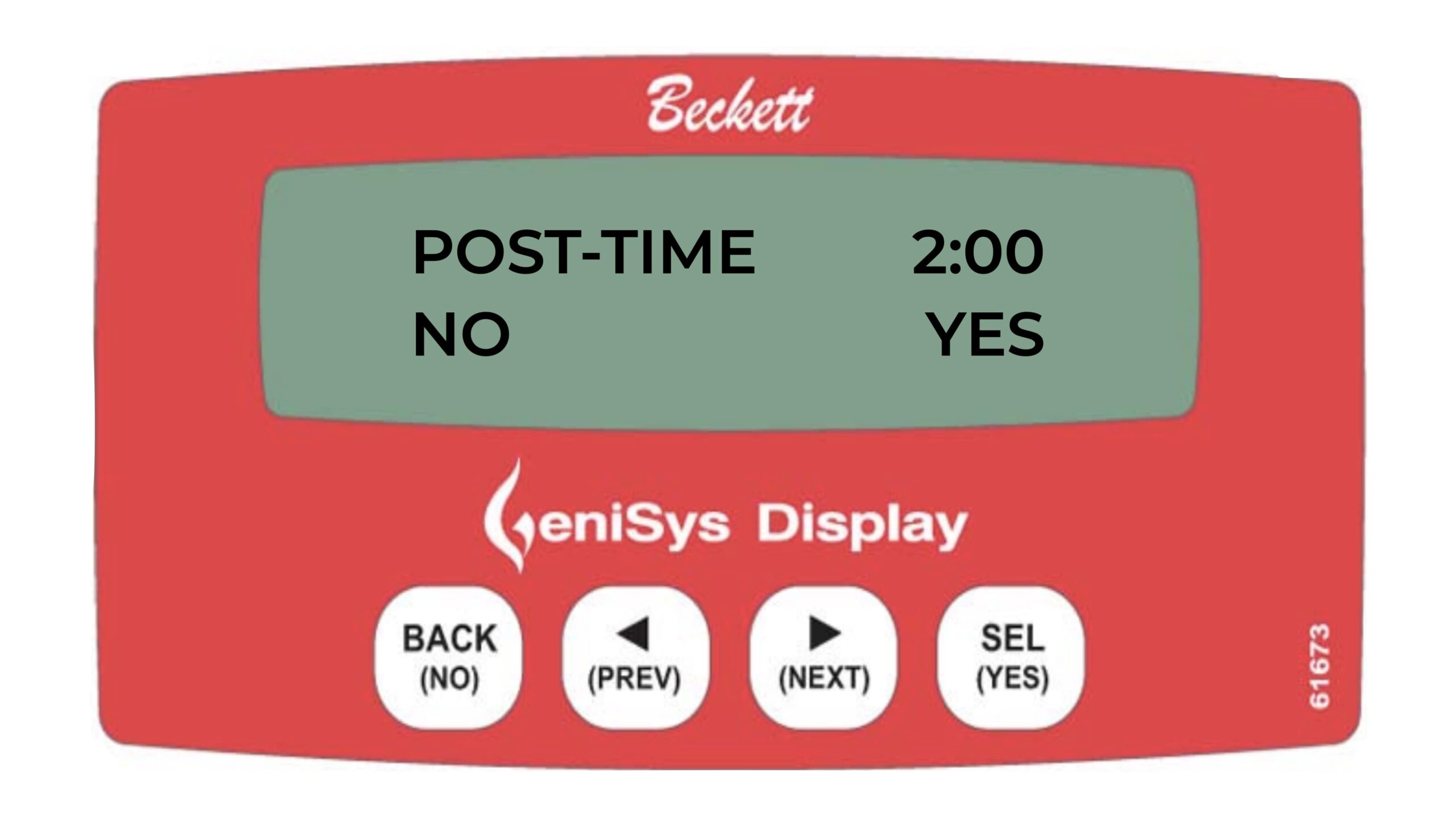

Press the SEL/YES key

Press the YES key if an oil valve or CleanCut Pump is installed

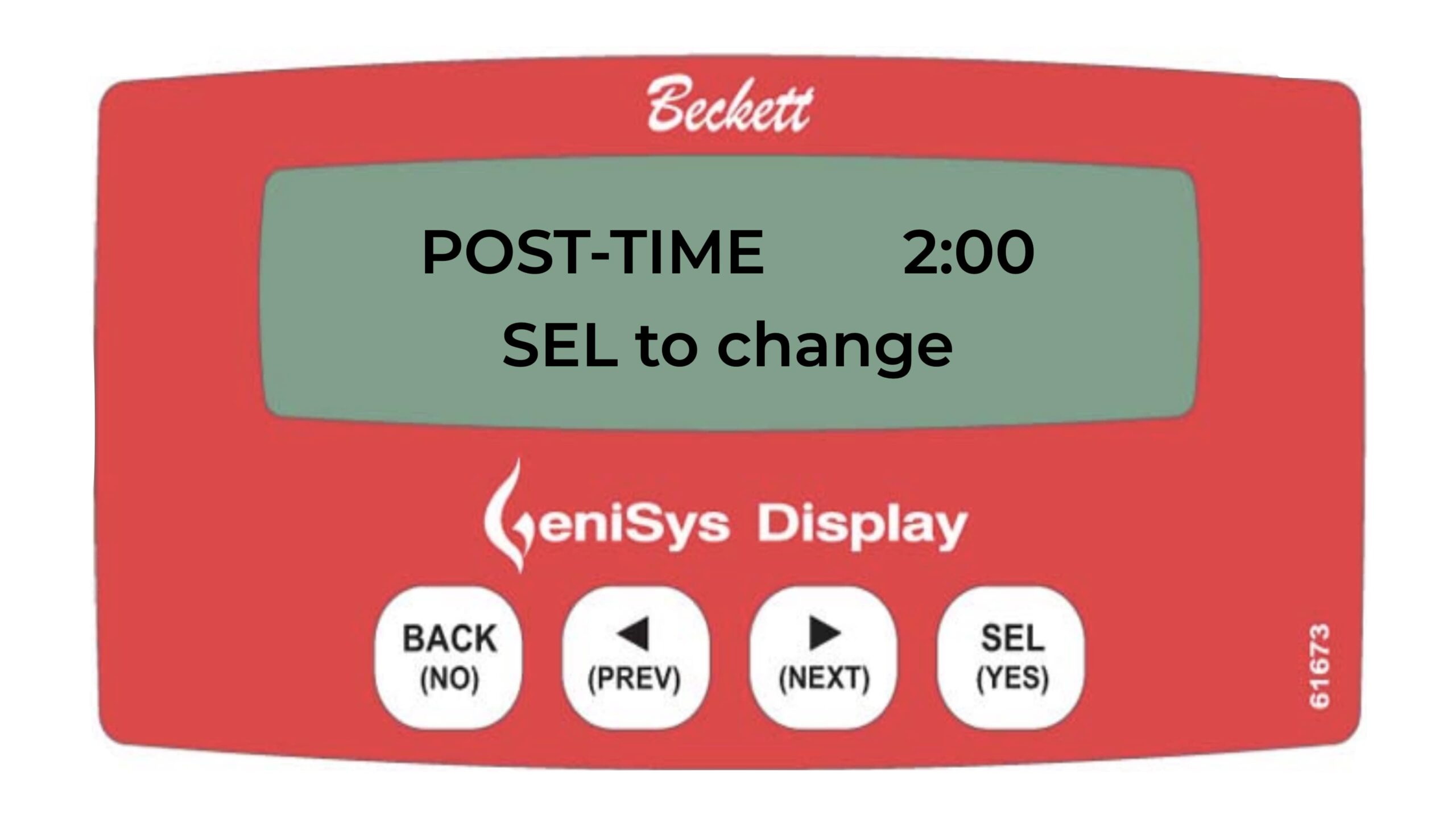

Press the NEXT key to set the Post-Purge Timing

Press the SEL/YES key

Accept by pressing the YES key again

Post-Time is now set… press the BACK key to exit
