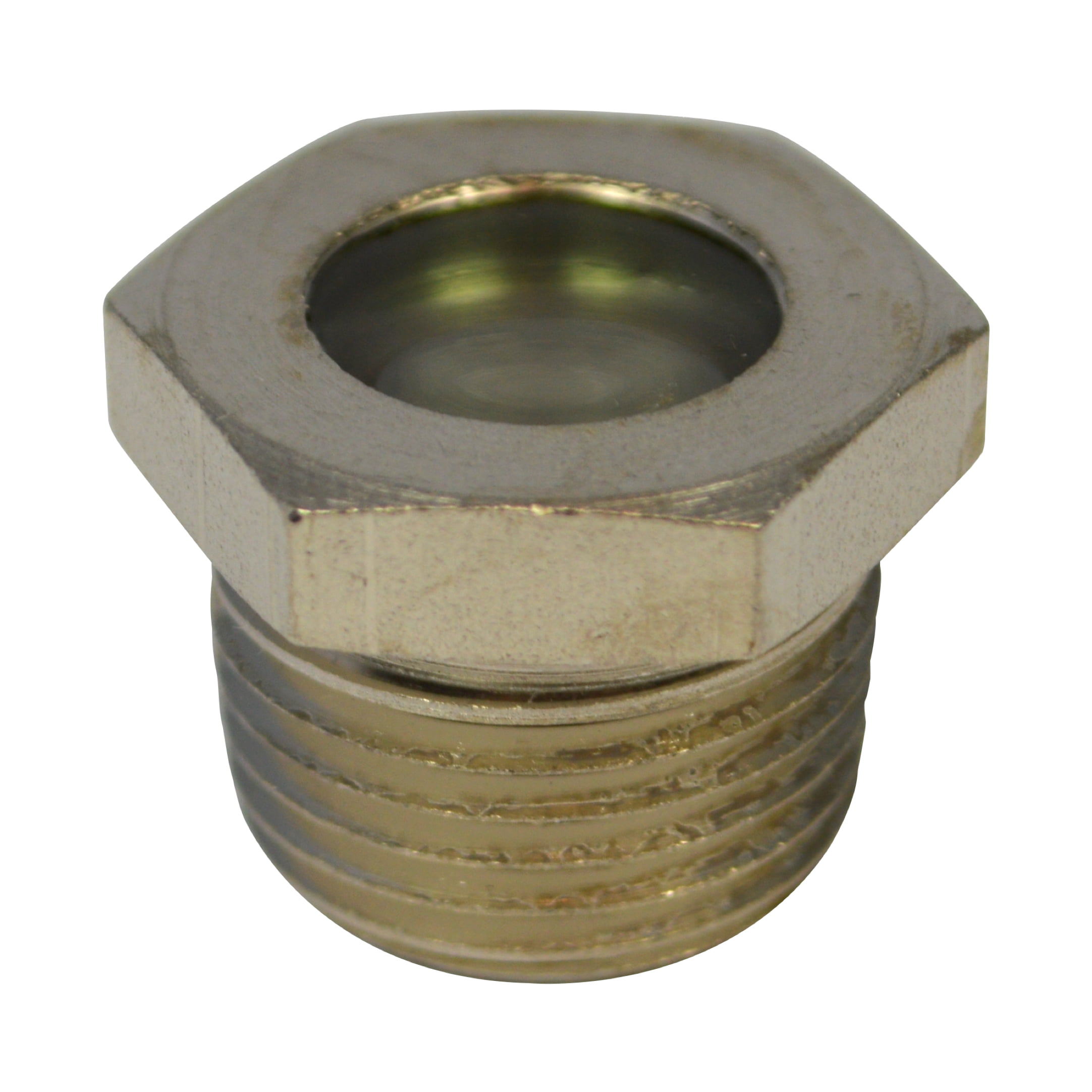

Observation Port | S305-50
Observation port, Clear – Soda Lime Window Glass, 1/2″ NPT, 3500 PSI
See other Observation Ports:
Item No. | Description | Pipe Thread | Working Pressure |
---|---|---|---|
S305-37 | Observation port, Clear - Soda Lime Window Glass | 3/8" NPT | 3,700 PSI |
S305-50 | Observation port, Clear - Soda Lime Window Glass | 1/2" NPT | 3,500 PSI |
S305-75 | Observation port, Clear - Soda Lime Window Glass | 3/4" NPT | 3,000 PSI |
S305-100 | Observation port, Clear - Soda Lime Window Glass | 1" NPT | 2,500 PSI |
S305-125 | Observation port, Clear - Soda Lime Window Glass | 1-1/4" NPT | 2,000 PSI |
S305-150 | Observation port, Clear - Soda Lime Window Glass | 1-1/2" NPT | 1,500 PSI |
S305-200 | Observation port, Clear - Soda Lime Window Glass | 2" NPT | 1,500 PSI |
Downloads & Links
Warnings (prop65)
Warranty
Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.
