Aug 4, 2017 | Burner & System Control Tutorials, Burner Controls, Tutorials

This quick tutorial will guide you through the steps on bbtaining the Burner Cycle History using the Contractor Tool. Click each image to view larger.

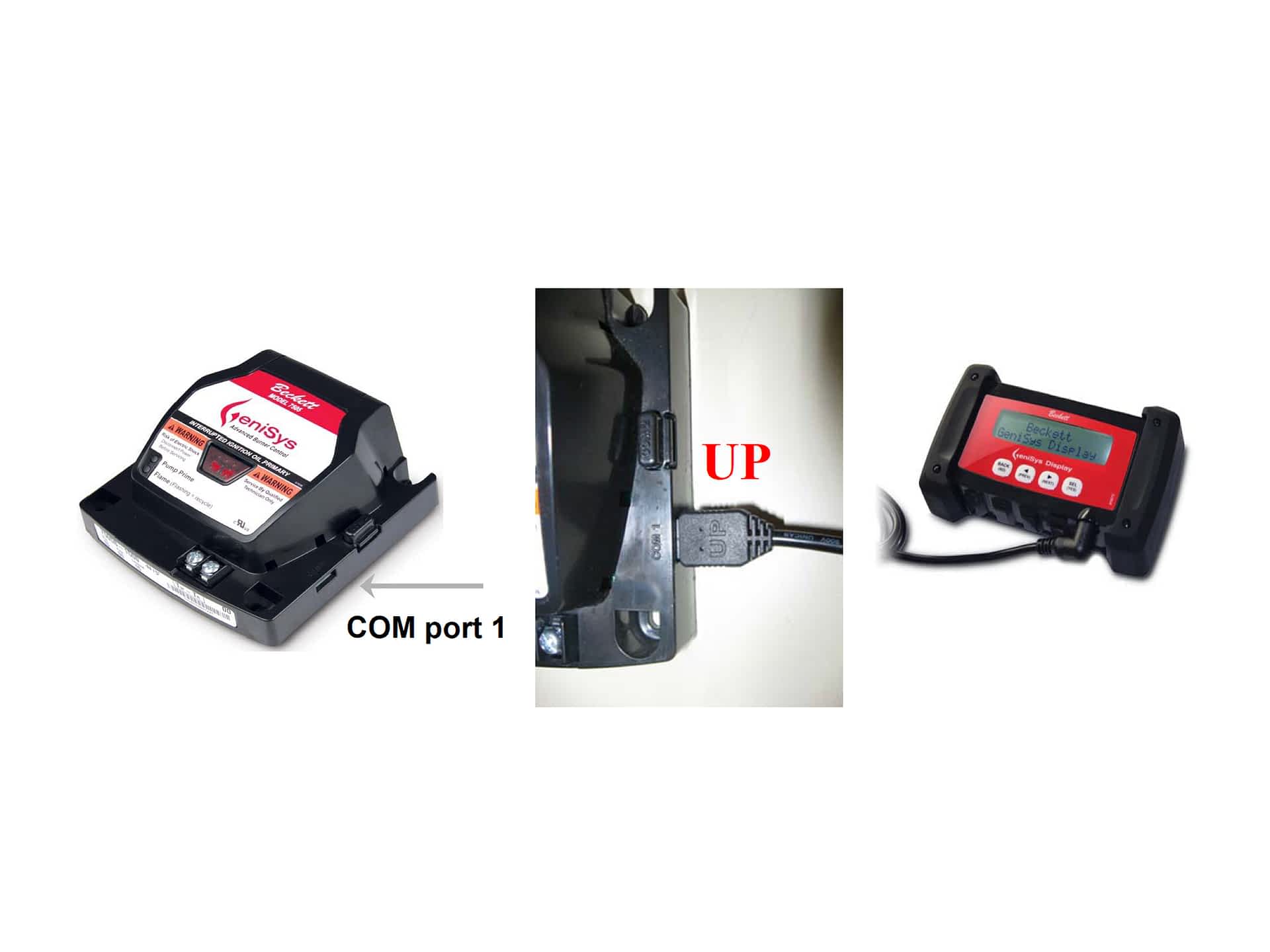

The Contractors Tool cord set plugs into the GeniSys communication port for programming, diagnostics and service history.

Let’s check service history.

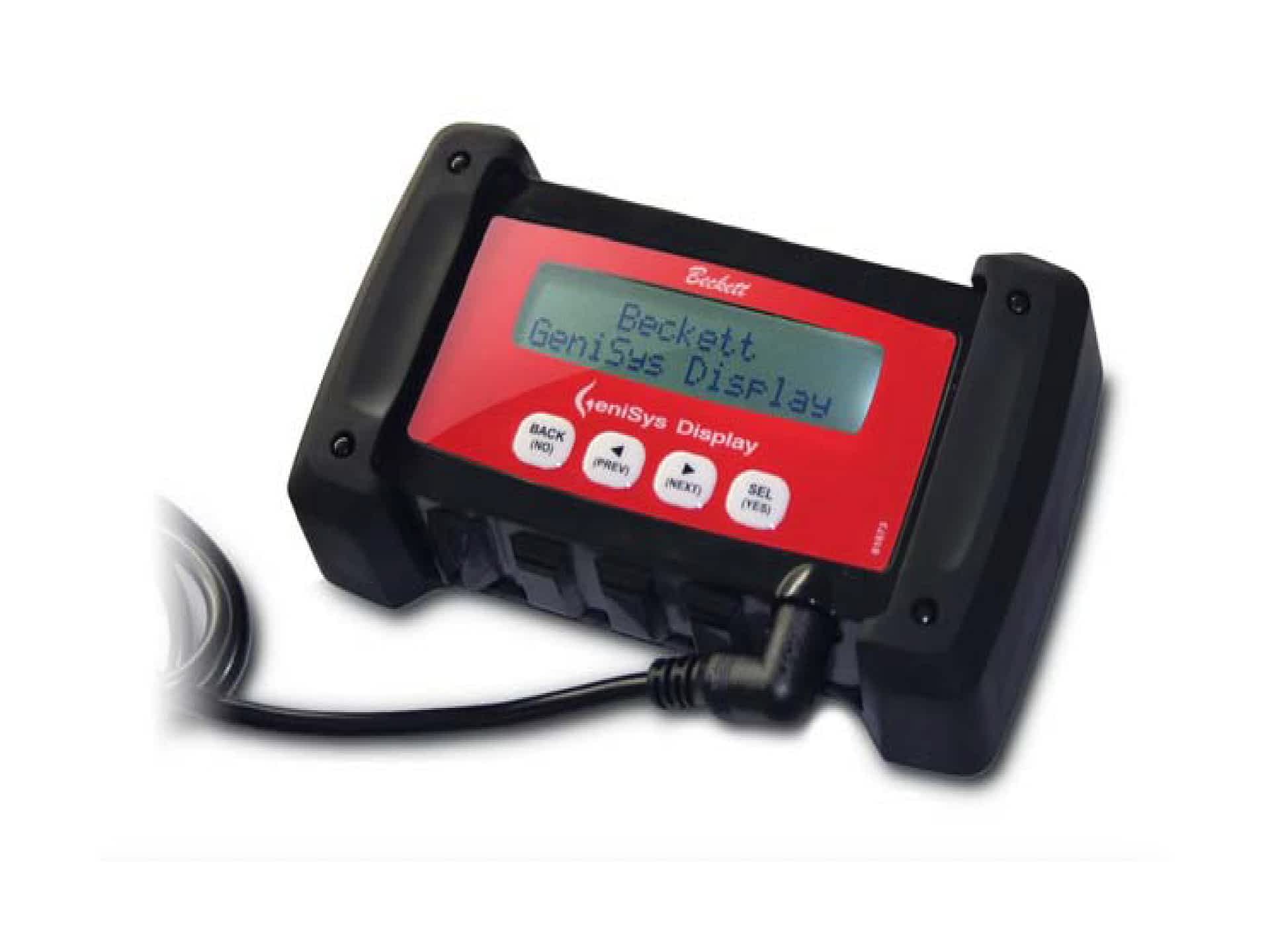

Begin by plugging in the Contractors Tool.

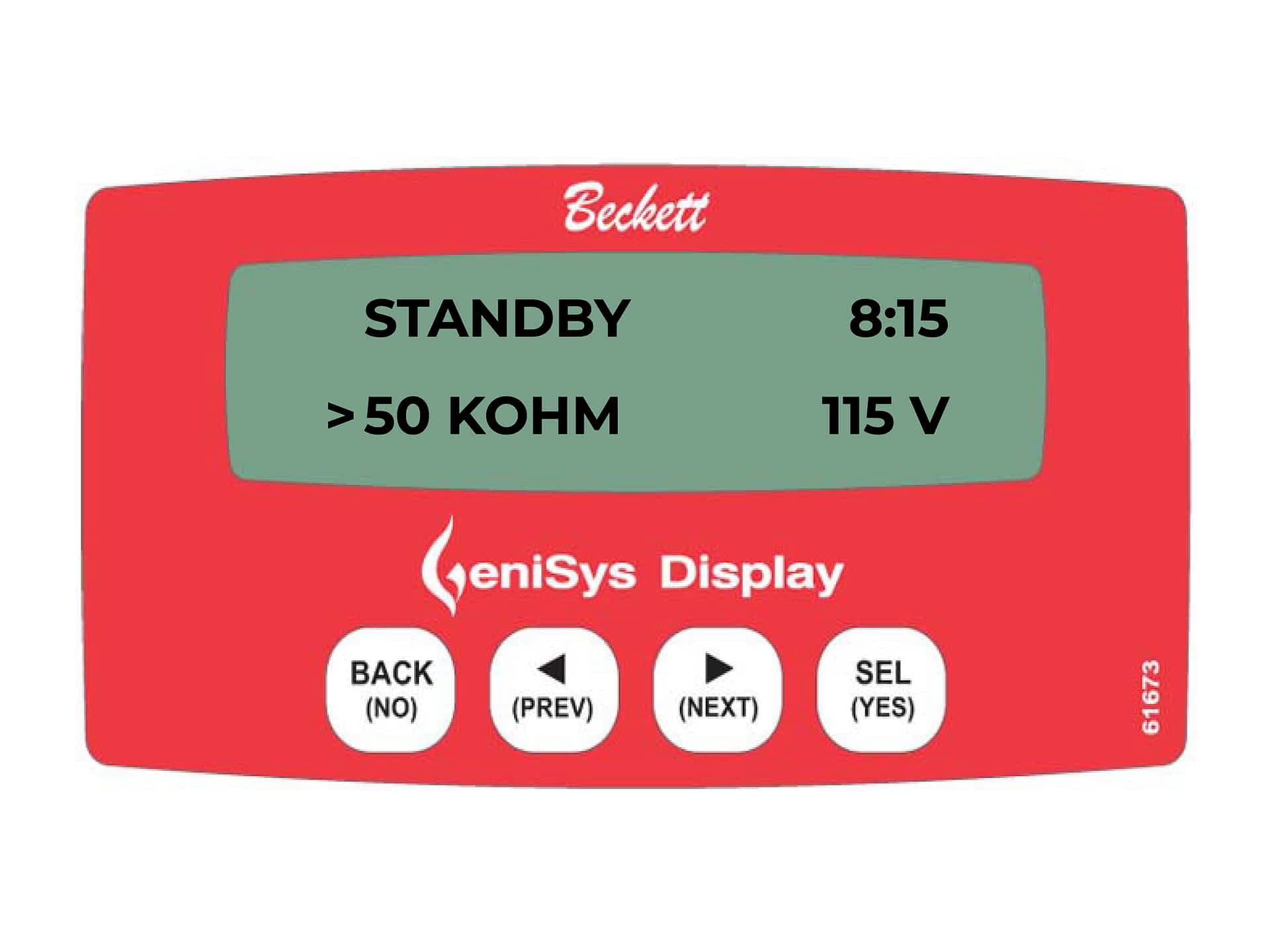

From this screen, press the NEXT button.

Press the SEL/YES key.

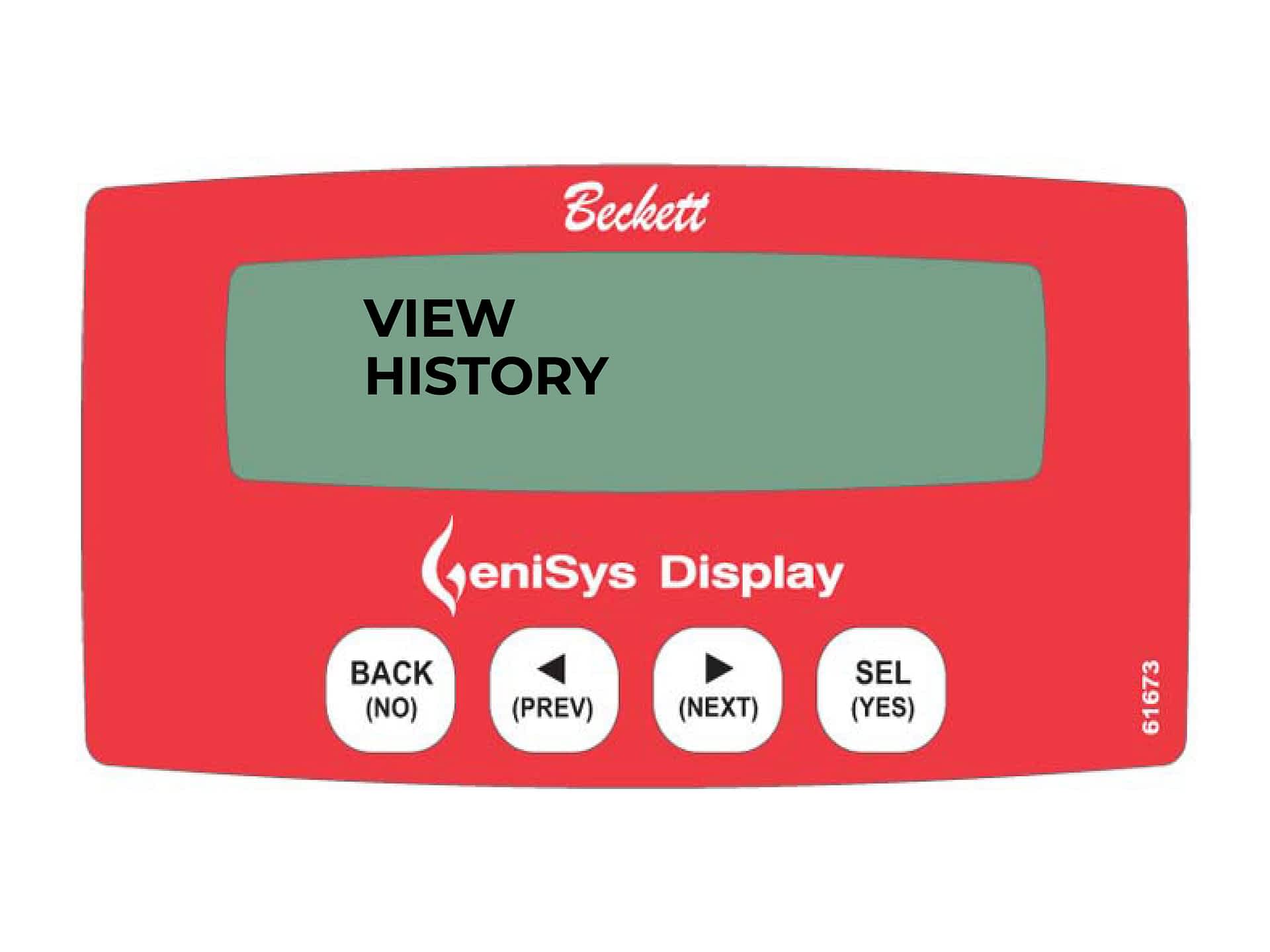

Press the SEL/YES key.

Press the NEXT key.

Press the NEXT key.

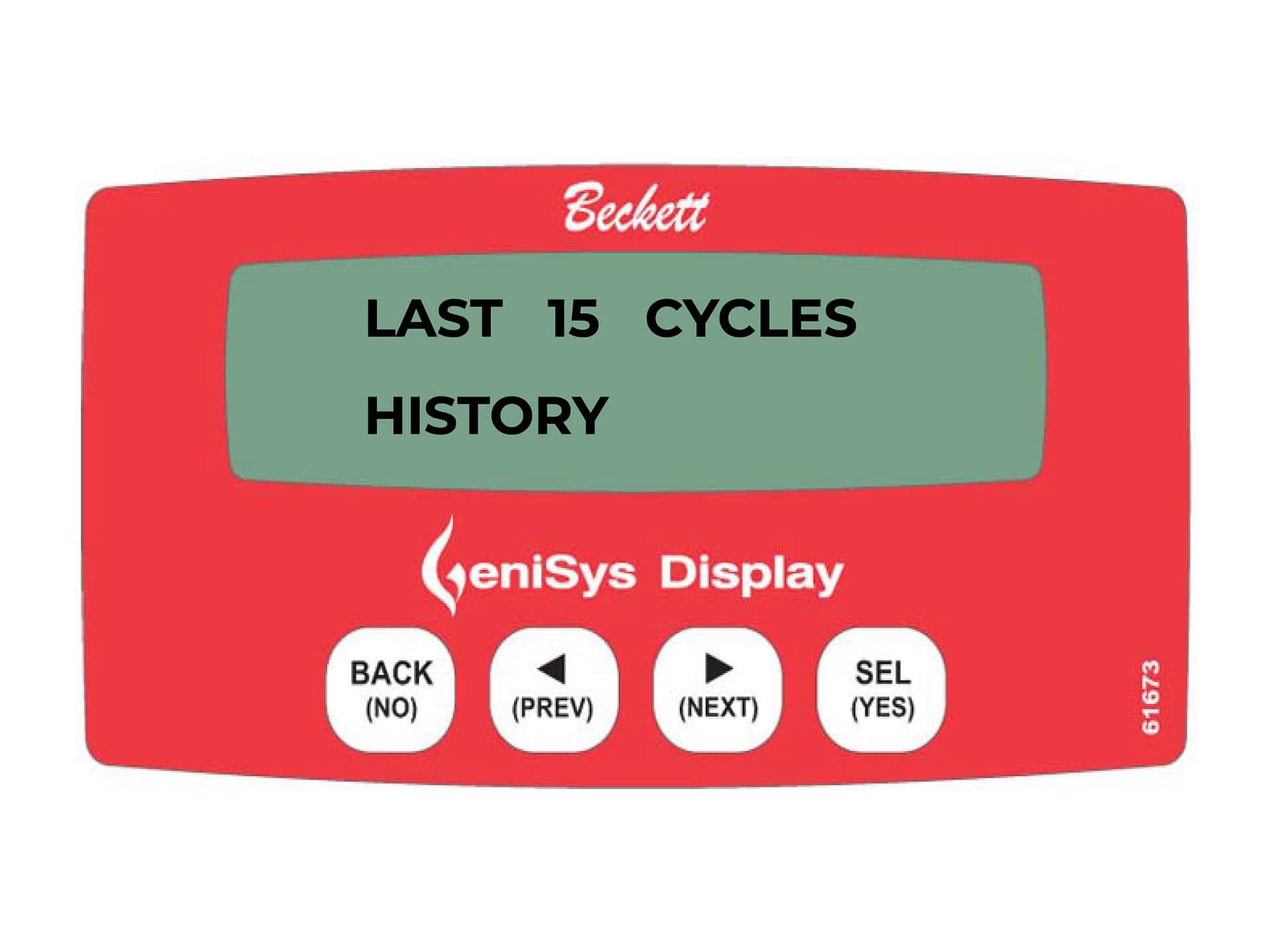

Press the NEXT key.

Press the NEXT key.

Press the NEXT key.

Press the NEXT key.

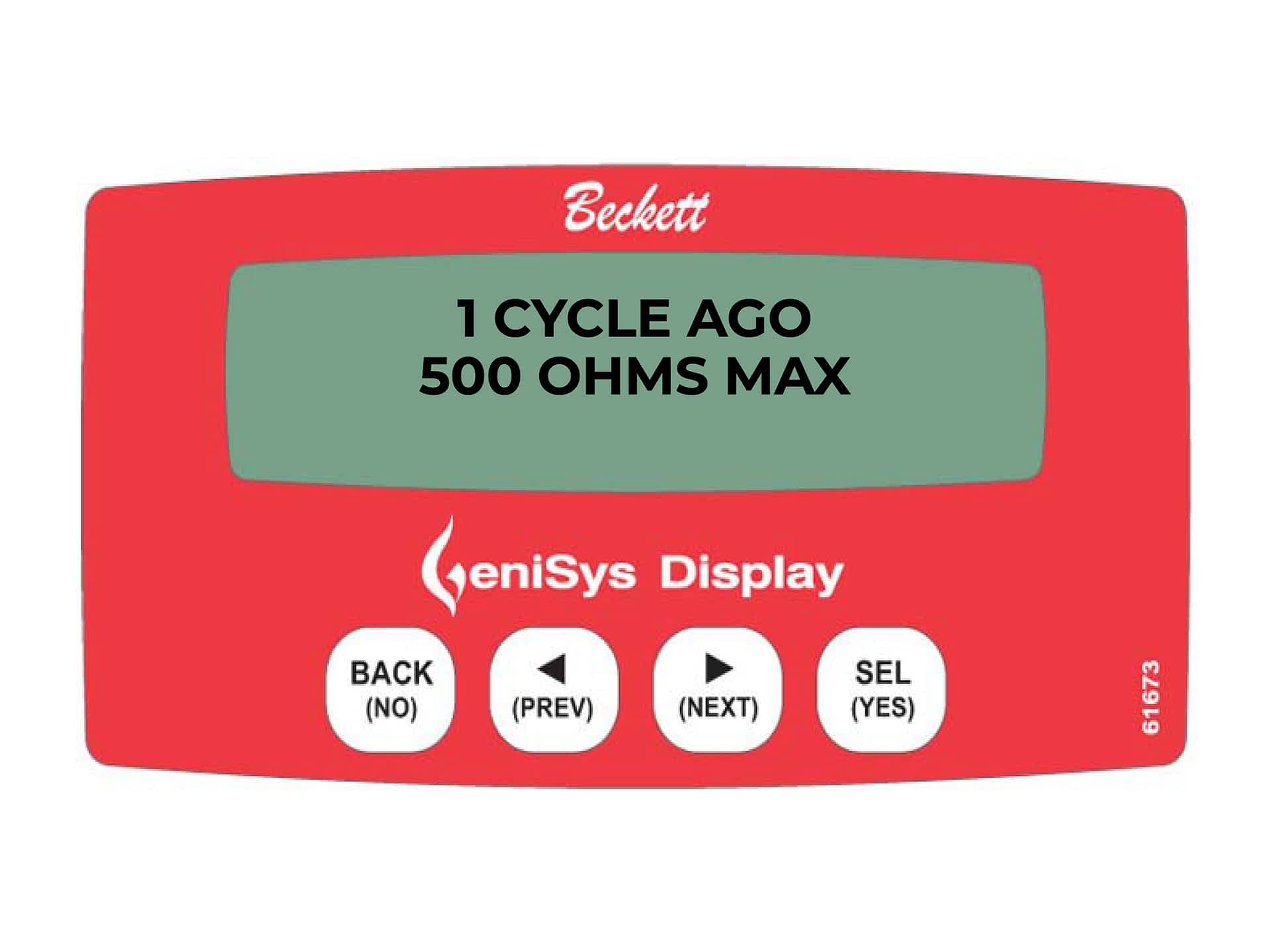

Press the NEXT key.

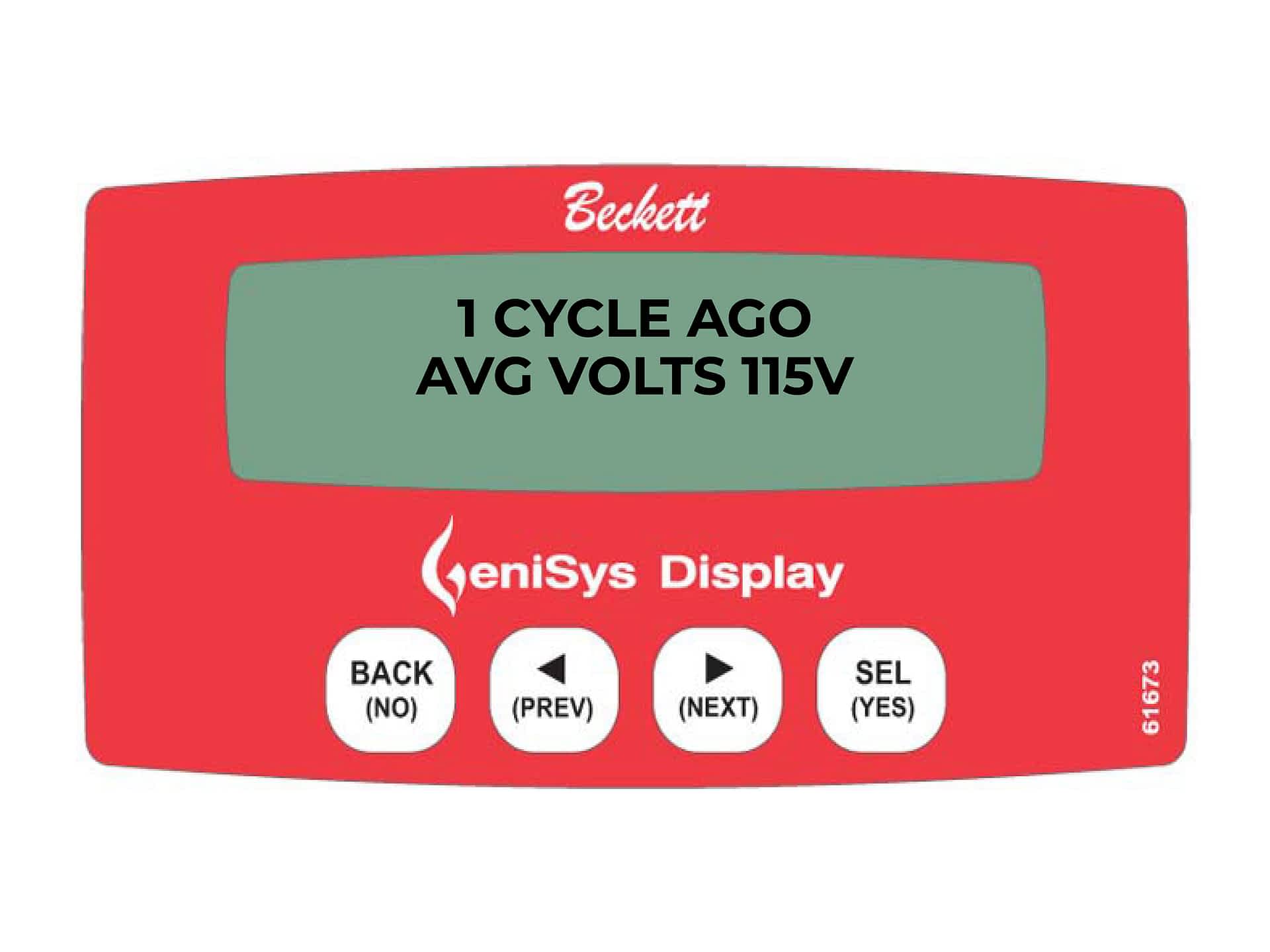

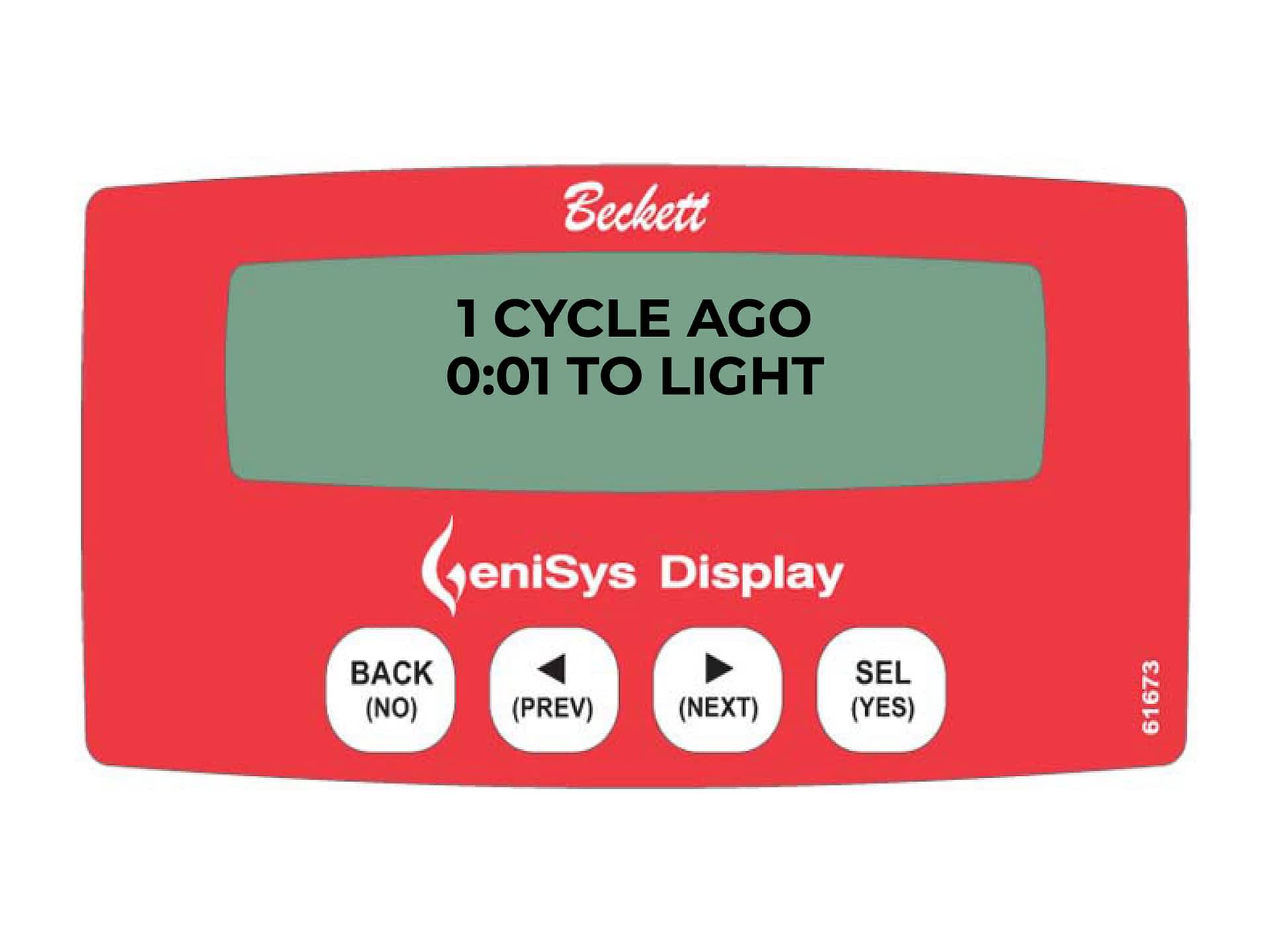

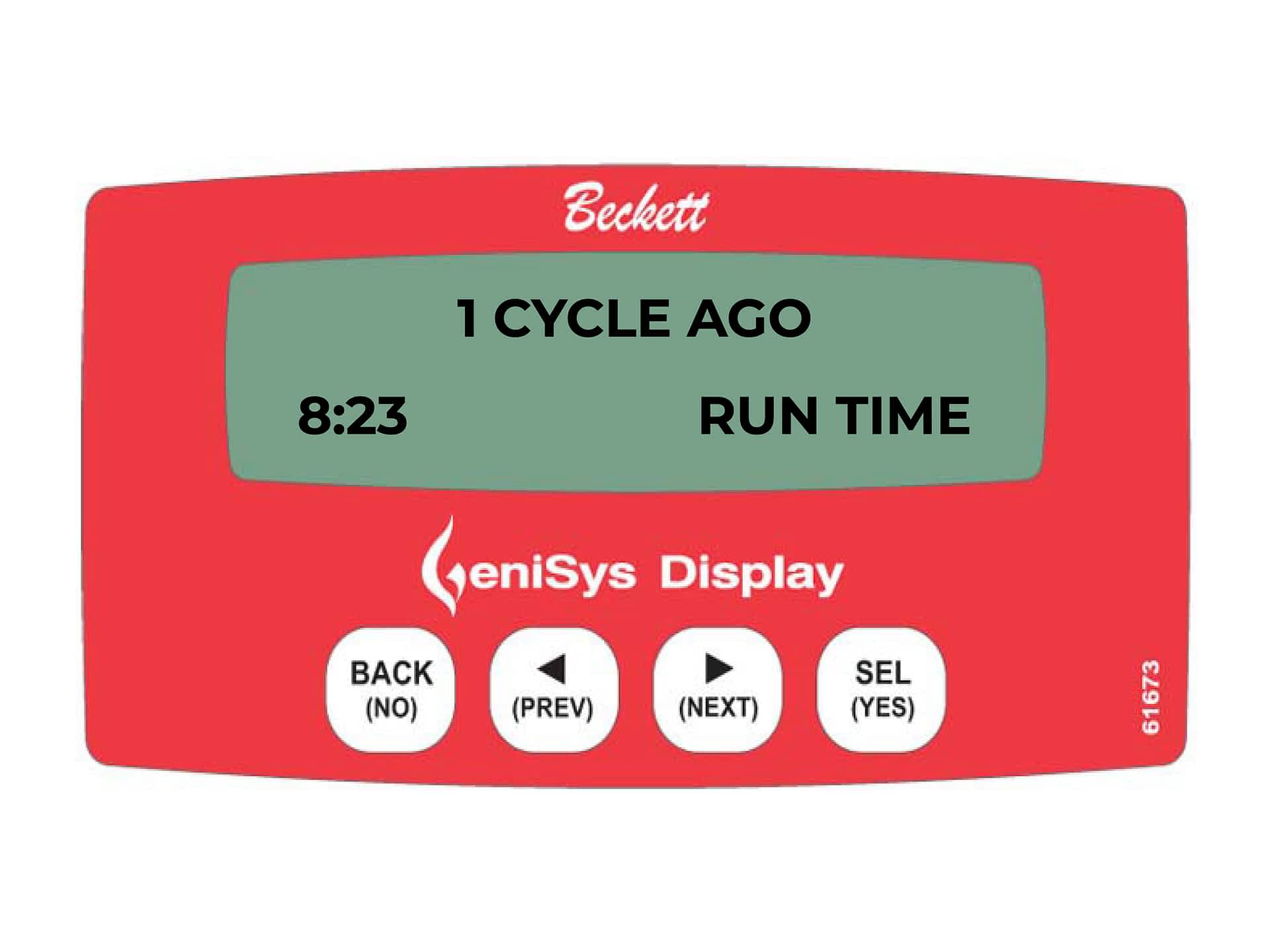

Press the SEL/YES key to advance to the data for Cycle Number 2

The heat cycle can end in the following ways:

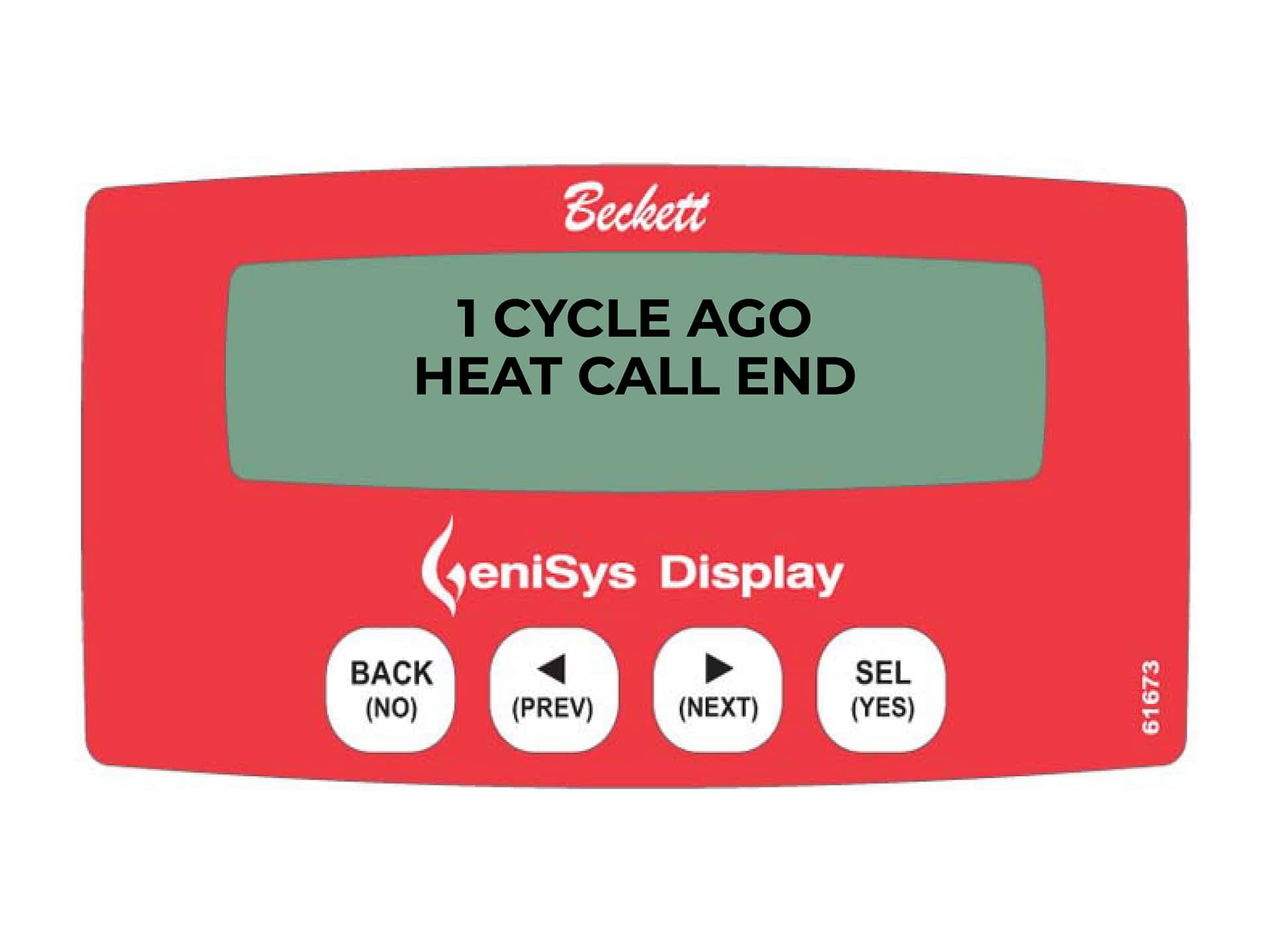

  1. HEAT CALL END (call for heat was satisfied)
  2. PUMP PRIME (control was sent to the pump prime mode)
  3. MANUAL SHUTDOWN (control button was held)
  4. LOW VOLTAGE (control shut down because measured voltage during run was < 78 V)
  5. RECYCLE (Losing the flame during the run cycle)

If the cycle ends in lockout, one of the following lockout reason screens will be displayed:

  1. PRE-TIME FLAME (flame seen at the end of prepurge) (check the valve)
  2. DID NOT LIGHT (check for fuel, air and spark)
  3. LOST FLAME (ignition budget exceeded due to too many recycles)
  4. REPLACE CONTROL (motor relay check failure or software self-check failure)
