Installing a Propane Conversion Kit

Aug 4, 2017 | Burner Tutorials, Tutorials

This quick tutorial will guide you through the steps on installing the Propane Restrictor Conversion Kit on Beckett Gas Burners. Click each image to view larger.

Notice

The Beckett Propane Restrictor Conversion Kit allows for the conversion of CG10, CG15, CG25, and CG50 burners for use with propane gas.

Use authorized replacement parts only. Restrictors are precision-machined parts and O-rings are rated for fuel contact. Do not attempt to replicate or modify any parts.

CG15 is shown in the illustrations. CG25 and CG50 are similar. CG10 is similar with the exception of having the gas gun assembly mounted into the air tube instead of the housing.

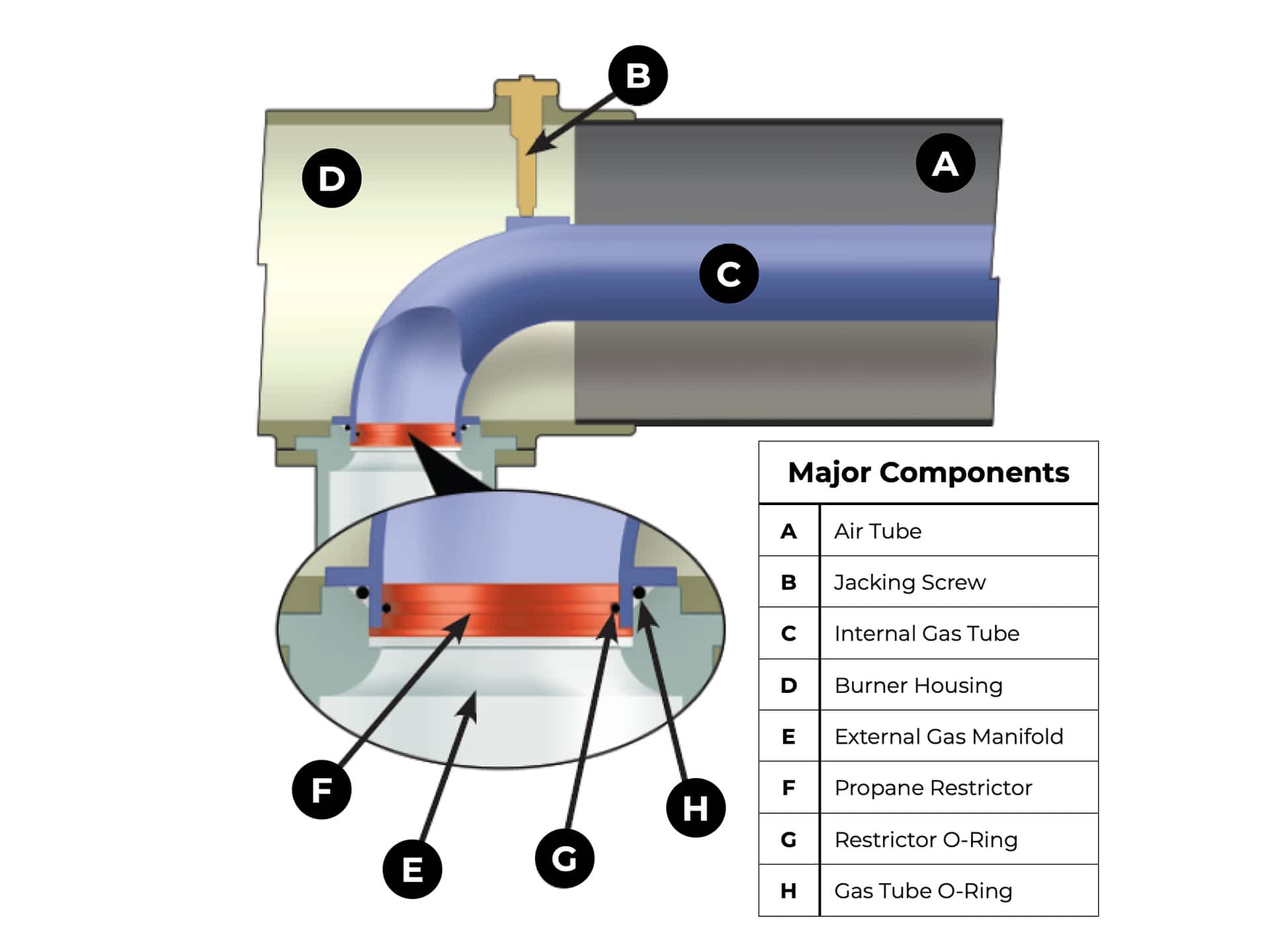

Before we begin, lets get familiar with the components.

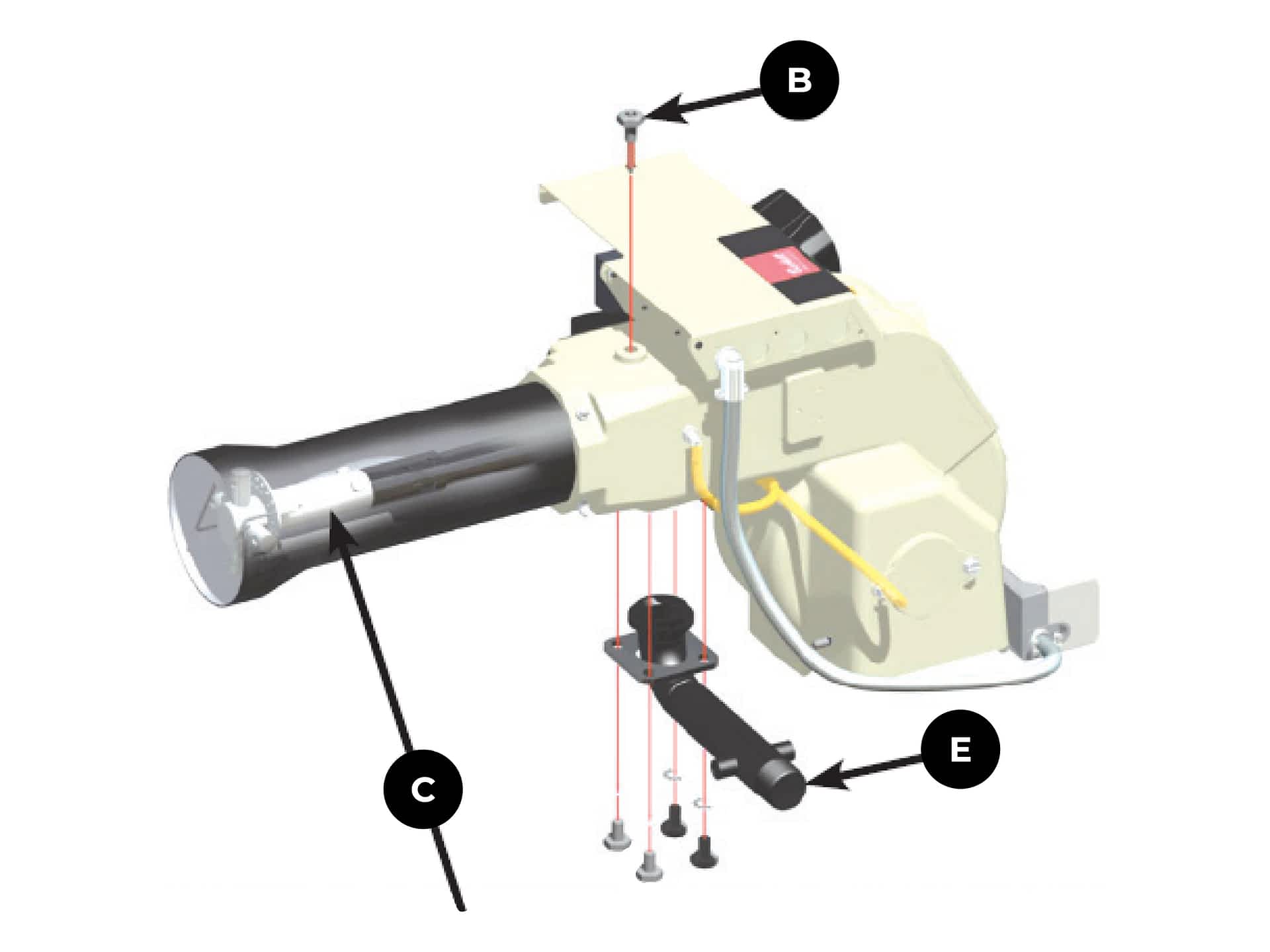

  1. Remove the jacking screw (B) from the housing to free the internal gas tube (C).
  2. Gently rock the internal gas tube (C) to loosen the tube from the burner housing.
  1. Inspect the O-rings and insure that they are properly lubricated. (A silicon O-ring lubricant is recommended, but automotive chassis or bearing grease is an acceptable substitute).

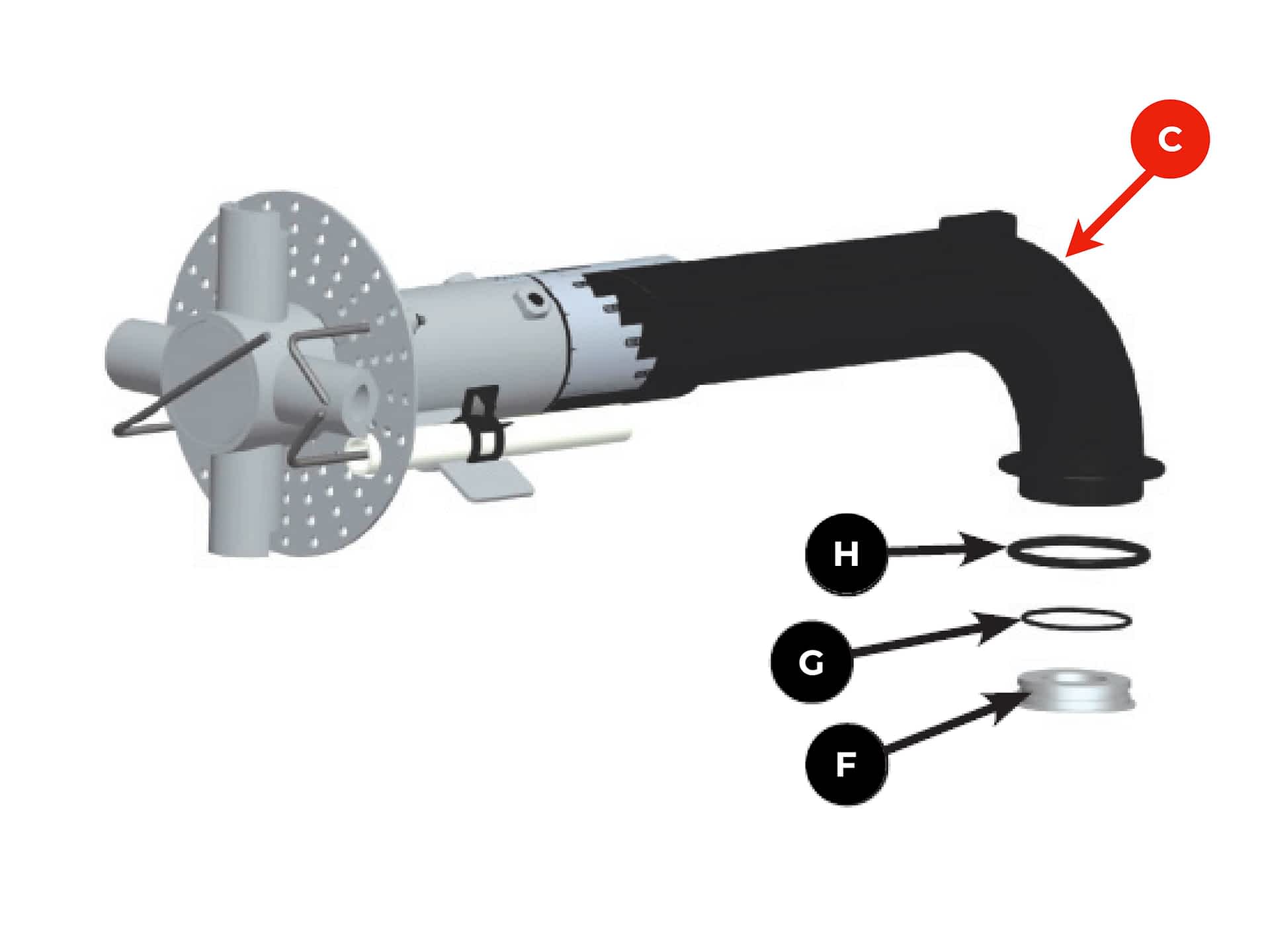

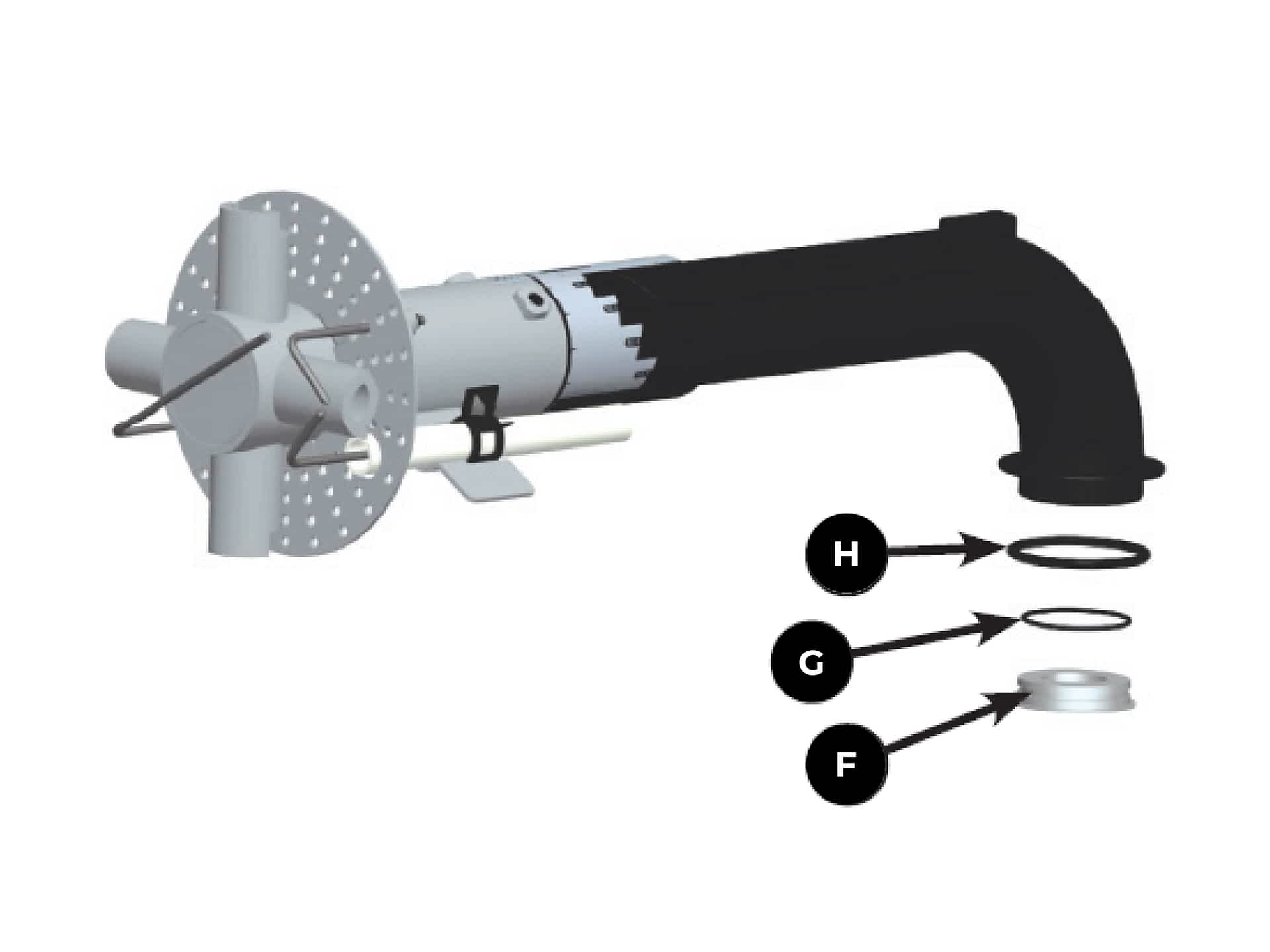

  1. Place the restrictor (F) with pre-attached, pre-lubricated O-ring (G) into the internal gas tube (C). Use your hand to press the restrictor into the tube. The O-ring will hold the restrictor in place.

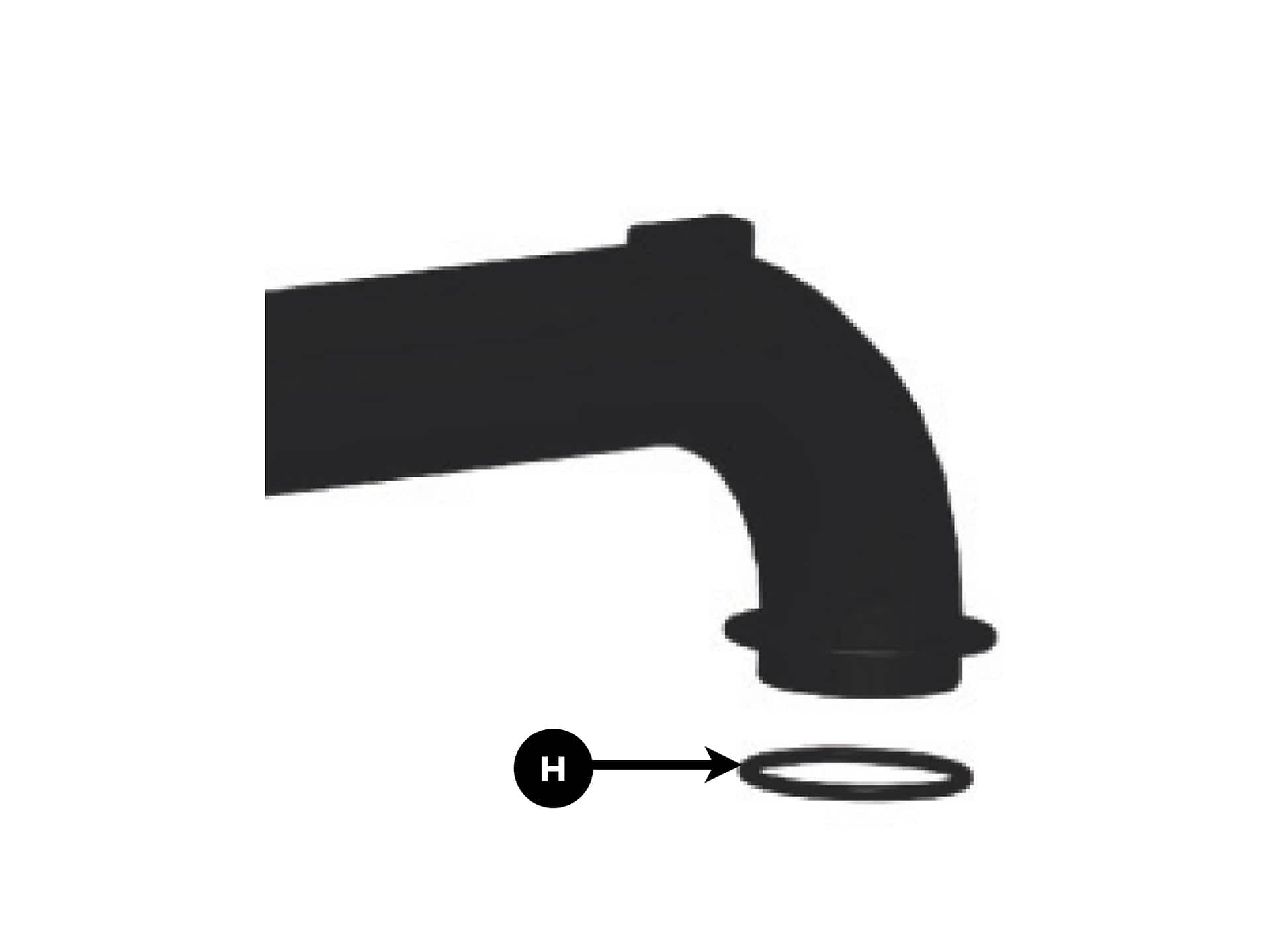

  1. Ensure that the O-ring (H), attached to the outside diameter of internal gas tube, is properly lubricated and seated against the flange on the internal gas tube.
  1. Install the internal gas tube (C) back into the housing. Fit the end of the tube into the external gas manifold (E).
  1. Re-install the jacking screw making sure the pin tip is properly seated in the hole on the internal gas tube.
  1. Fill out and place the supplied conversion data label, Part Number 61712 adjacent to the rating plate.
  1. Complete and attach the supplied Adjustment Data Tag, Part Number 61711 to the burner

Replacement Part Numbers

Burner Model Restrictor Part Number Restrictor Inside Diameter O-Ring Part Number
CG10.1 3246700U 0.401 3226409U
CG10.2 3246701U 0.432 3226409U
CG10.3, CG10.2S 3246702U 0.47 3226409U
CG10.1S 3246703U 0.418 3226409U
CG10.3S, CG10.65 3246705U 0.51 3226409U
CG10.4 3246723U 0.547 3226409U
CG10.4S 3246706U 0.459 3226409U
CG10.5 3246724U 0.578 3226409U
CG10.5S 3246707U 0.482 3226409U
CG10.6 3246725U 0.594 3226409U
CG15.1S 3246709U 0.532 3226401U
CG15.2S 3246710U 0.576 3226401U
CG15.3S 3246711U 0.623 3226401U
CG15.4S 3246712U 0.677 3226401U
CG25.1S 3246713U 0.712 3226402U
CG25.2S 3246714U 0.742 3226402U
CG25.3S 3246715U 0.796 3226402U
CG25.4S 3246716U 0.833 3226402U
CG25.5S 3246717U 0.889 3226402U
CG50.1S 3246718U 0.925 3226403U
CG50.25 3246719U 0.98 3226403U
CG50.3S 3246720U 1.031 3226403U
CG50.4S 3246721U 1.103 3226403U
CG50.5S 3246722U 1.15 3226403U
