CleanCut Pump Cutoff Test

Aug 4, 2017 | Burner Tutorials, Tutorials

This quick tutorial will guide you through the steps for checking for proper fuel pump cut-off. Click each image to view larger.

Perform a pump cut-off test if you are experiencing any after drip or rumbles/flutters at burner shut-down.

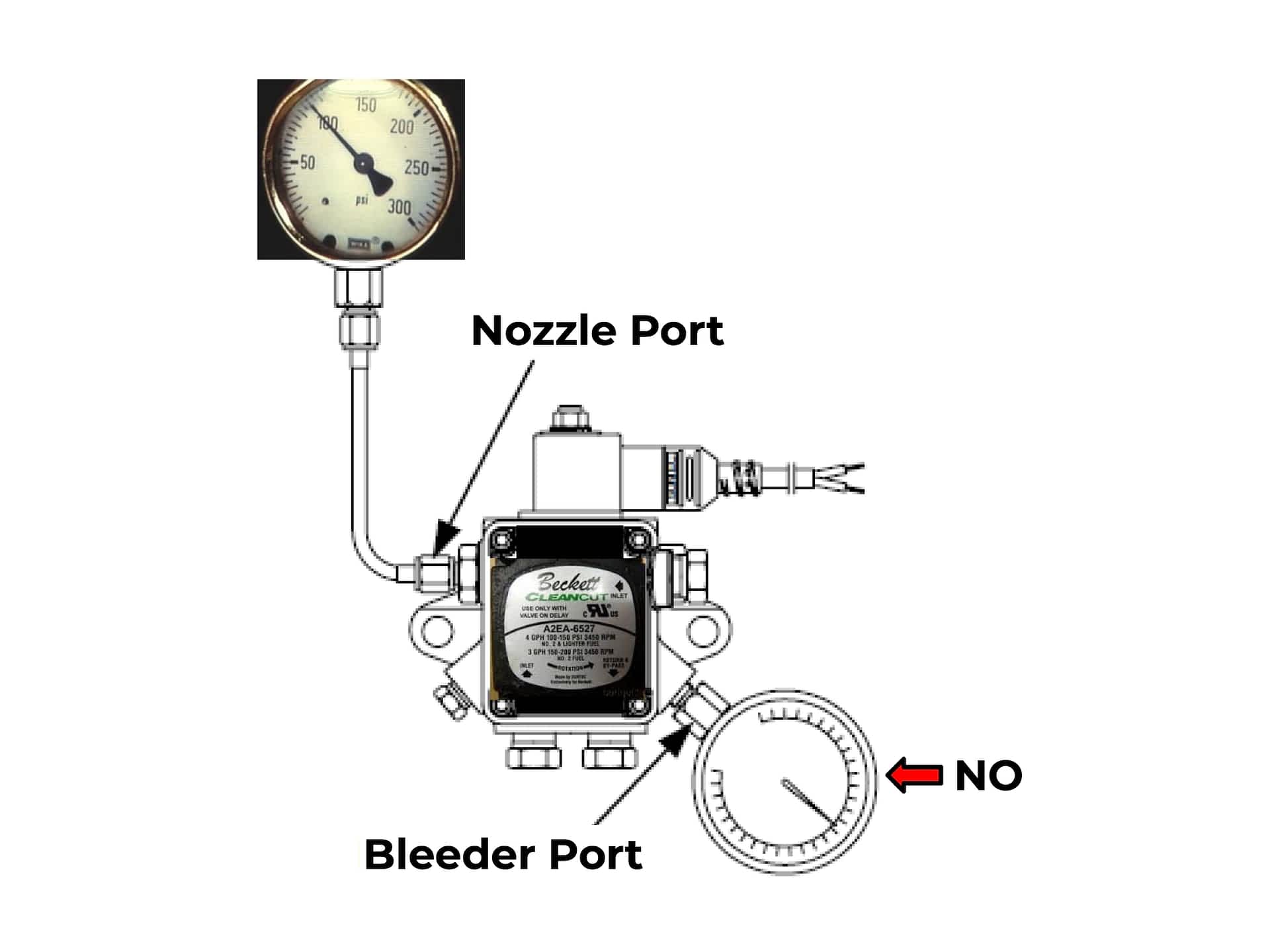

Begin by dead-heading a pressure gauge into the nozzle port. The bleed port will NOT test cut-off.

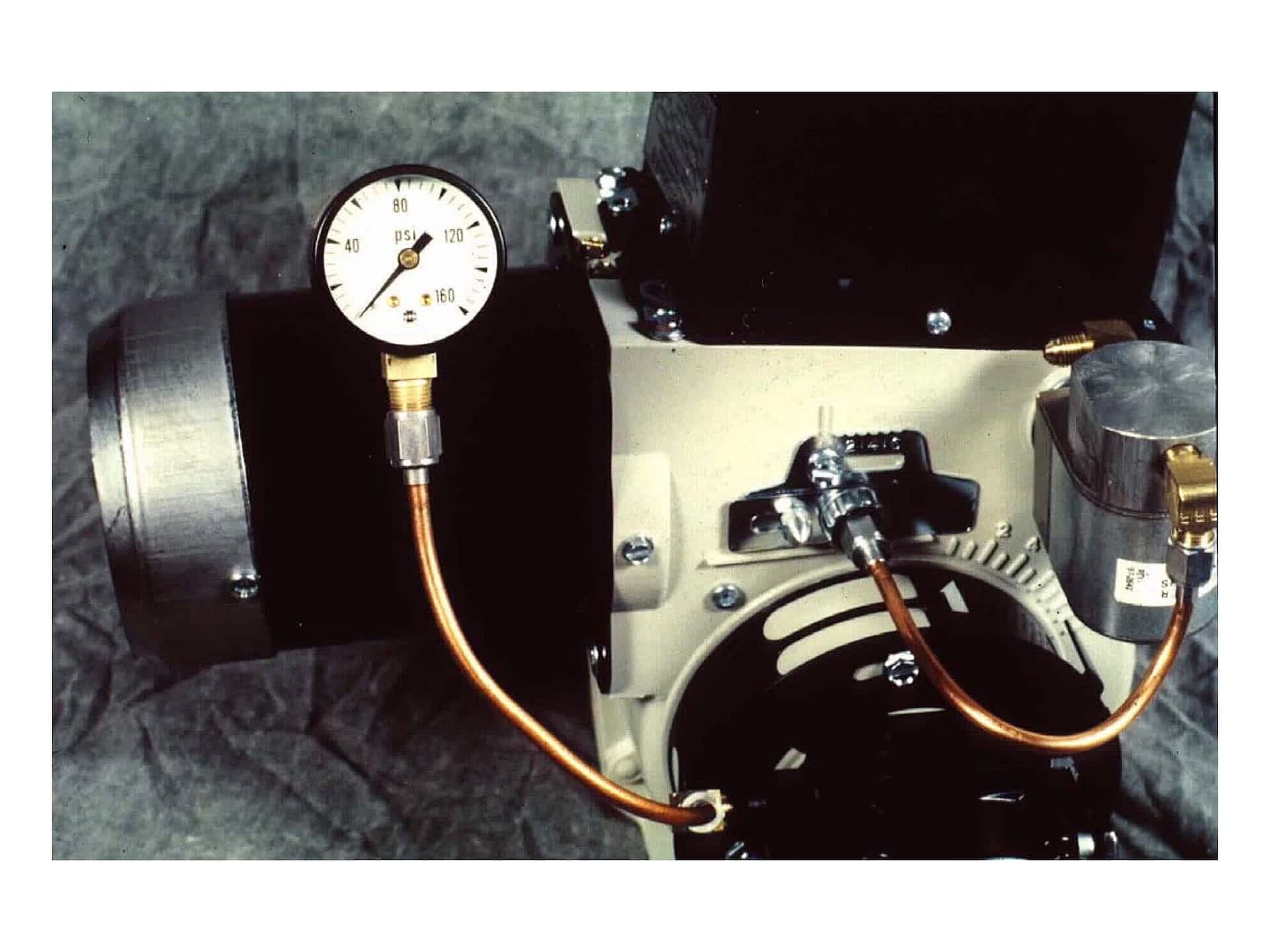

Dead-head pressure gauge into the nozzle port. Make sure all fittings are tight before starting.

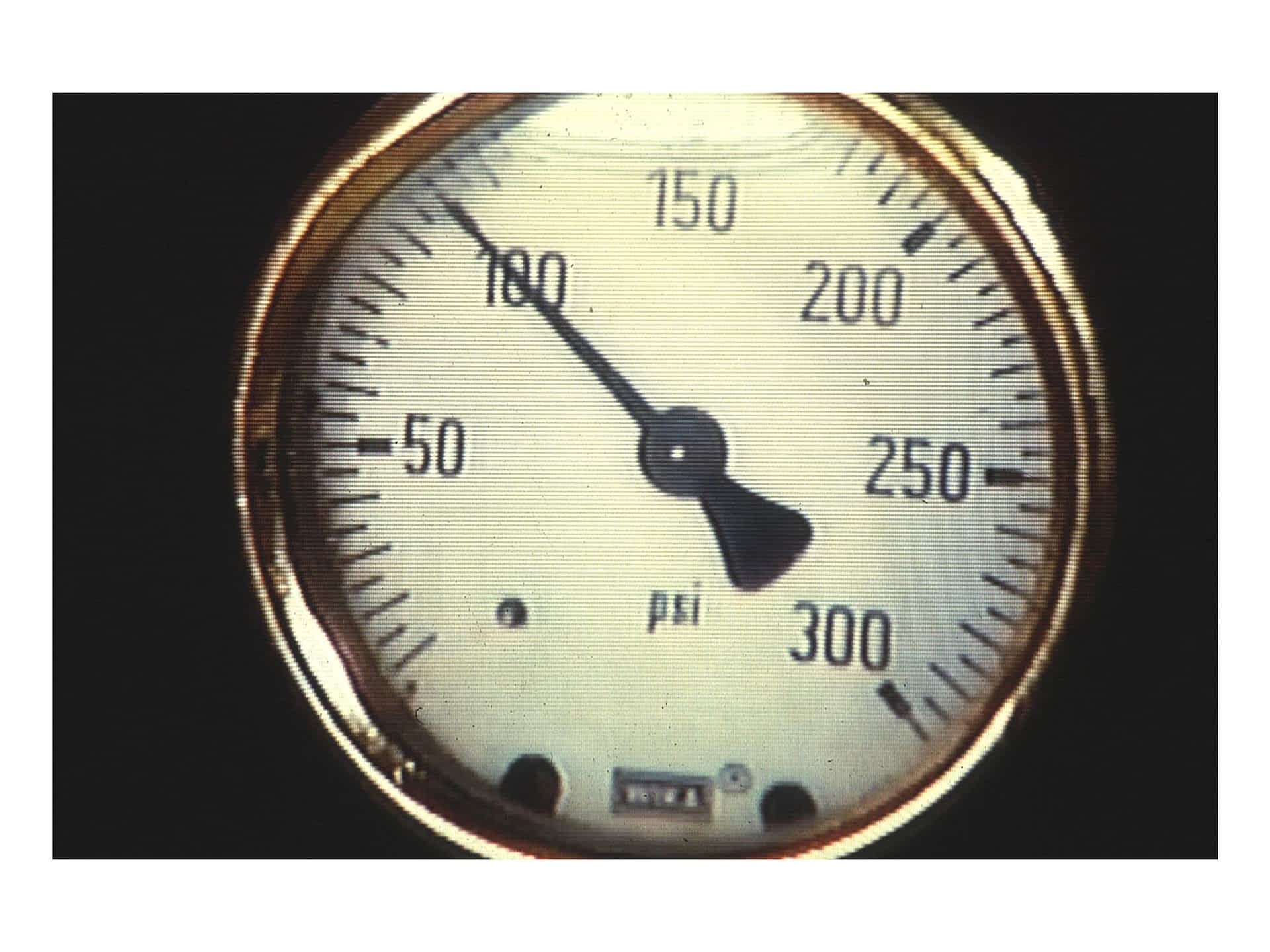

Turn the burner on and observe the pressure reading.

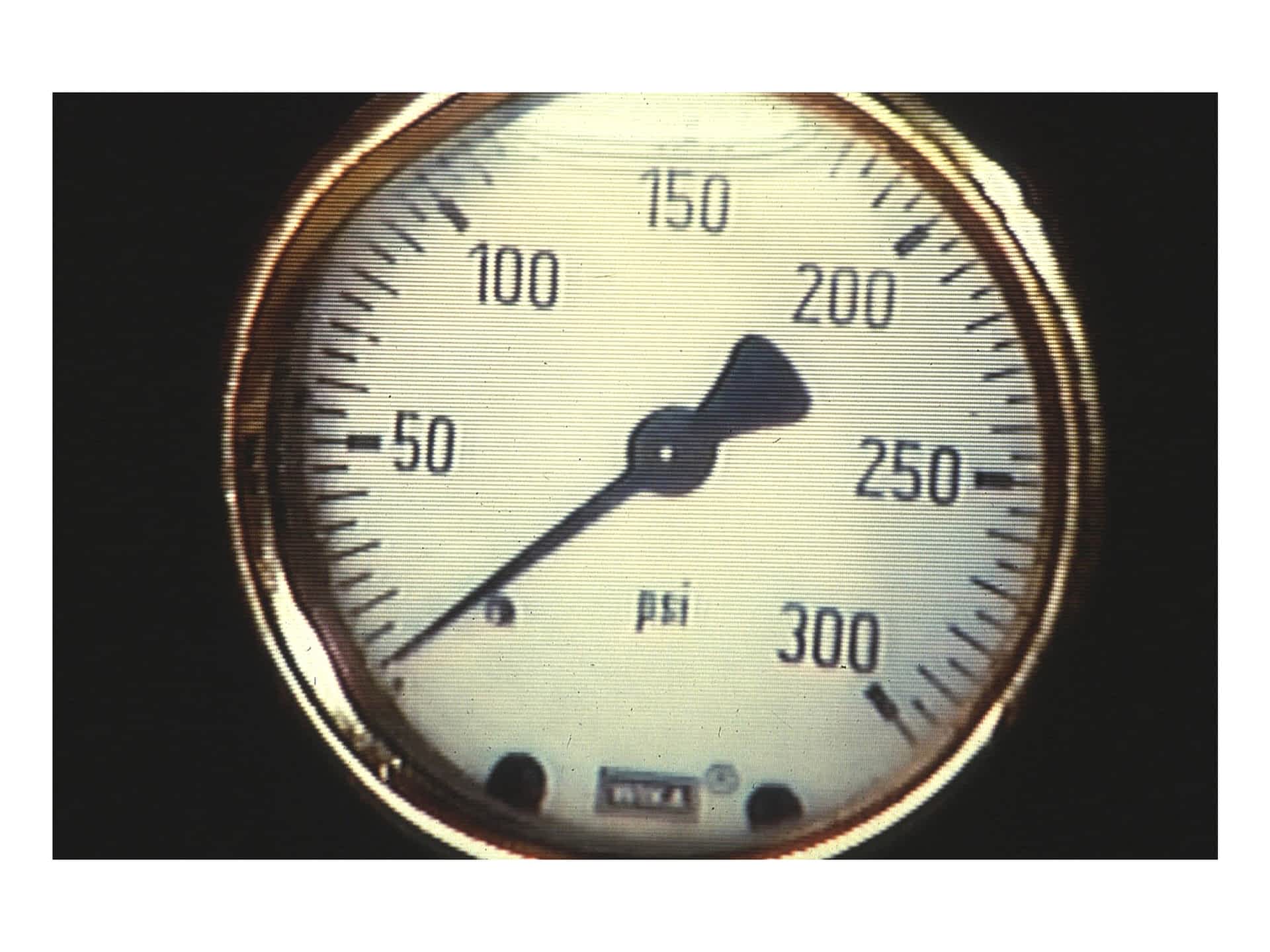

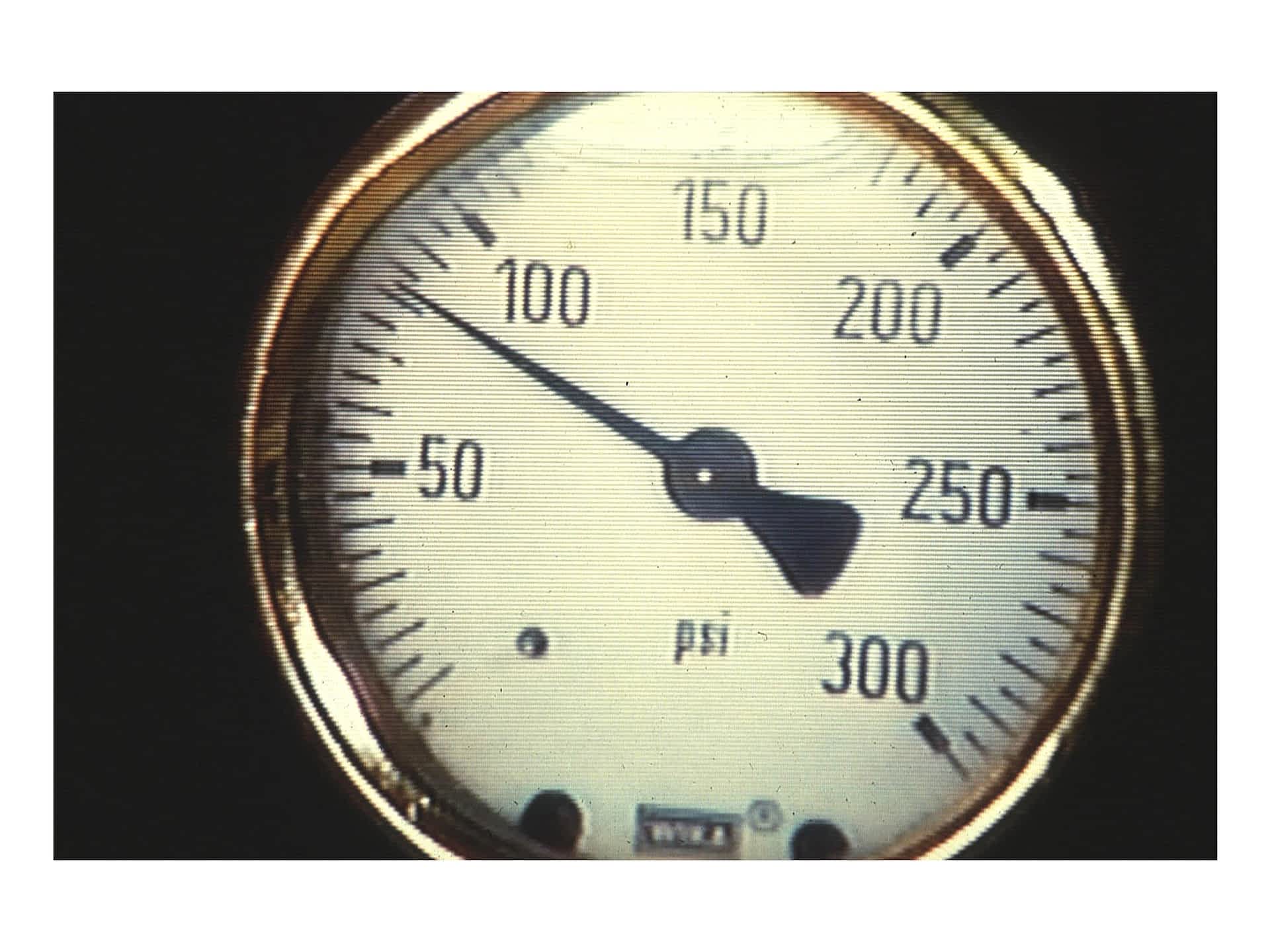

Shut the burner off — the pressure should drop 15% to 20% and hold.

If the pressure drops below 20% or slowly back to zero, replace the fuel pump.
