Combines the 3/8″ Suntec PRV-38P oil safety valve with the Westwood Products Ultra-10TM (10 micron) high efficiency spin-On filter element number F100-10. This combination provides the ultimate in protection for oil supply systems and costs less than installing an oil safety valve and spin-on separately!
One of the most significant advantages of spin-on filters is their user-friendly maintenance. Canister filters require you to remove and replace the filter element within the housing, which can be messy and time-consuming. Spin-on filters eliminate this hassle by allowing you to replace the entire filter unit quickly and cleanly. This is particularly beneficial in colder weather when working with oil can be challenging.
The ease of replacing a spin-on filter translates to reduced downtime for your heating system. Quick and straightforward filter changes mean SPIN-ON FILTERS less disruption to your heating service, keeping your home or business comfortably warm without extended interruptions.
Spin-on filters feature advanced filter media that offer better filtration efficiency compared to traditional canister filters. This means finer particles, sludge, and contaminants are captured before they can reach your burner or other critical components. The improved filtration can lead to a cleaner combustion process, better fuel efficiency, and prolonged system life.
Canister filters require additional space for the housing, which might be a concern if you have limited room in your mechanical area. The Beckett F99 spin-on filters are more compact and can be easily accommodated even in tight spaces, making them a flexible solution for various installation setups.
Canister filters can be messy to handle, increasing the risk of oil spills and contamination. Spin-on filters, with their enclosed design, minimize the chances of oil leaks and spills during maintenance, promoting a cleaner and safer environment.
Switching from a canister filter to a spin-on filter is a smart move that can significantly enhance the efficiency, maintenance, and overall performance of your oil heating system. With simplified maintenance, reduced downtime, improved filtration efficiency, space savings, and reduced risk of contamination, the advantages of making this transition are clear. As you aim for a smoother and more efficient heating experience, consider upgrading to a spin-on filter and enjoy the benefits of this modern filtration solution.
| Item | Description | Thread Size | Micron Rating | Fuel Oils | Flow GPH |
|---|---|---|---|---|---|
| F99-2 | Spin-on filter, epoxy coated liner, complete with bracket | 3/4-16 UNF | 10 micron | 1, 2,up to B5 | 16 |
| F99-2B | Spin-on filter, epoxy coated liner, complete with bracket-BioFuel | 3/4-16 UNF | 15 micron | 1, 2,up to B100 | 16 |
| F99-10 | Spin-on element for F99, epoxy coated liner with O-ring | 3/4-16 UNF | 10 micron | 1, 2,up to B5 | 16 |
| F99-10B | Spin-on element for F99, epoxy coated liner with O-ring-BioFuel | 3/4-16 UNF | 15 micron | 1, 2,up to B100 | 16 |
| F100 | Spin-on filter, epoxy coated liner, complete with bracket | 3/4-16 UNF | 10 micron | 1, 2,up to B5 | 29 |
| F100-2 | Spin-on filter, epoxy coated liner, complete with bracket | 3/4-16 UNF | 10 micron | 1, 2,up to B5 | 29 |
| F100-2B | Spin-on filter, epoxy coated liner, complete with bracket-BioFuel | 3/4-16 UNF | 15 micron | 1, 2,up to B100 | 29 |
| F100-4 | F100 spin-on filter, epoxy coated liner, with FLI™ vacuum gauge | 3/4-16 UNF | 10 micron | 1, 2,up to B5 | 29 |
| F100-6 | F100 spin-on filter, epoxy coated liner, with FLI™ vacuum gauge and bracket | 3/4-16 UNF | 10 micron | 1, 2,up to B5 | 29 |
| F100-10 | Spin-on element for F100, epoxy coated liner with O-ring | 3/4-16 UNF | 10 micron | 1, 2,up to B5 | 29 |
| F100-10B | Spin-on element for F100, epoxy coated liner with O-ring-BioFuel | 3/4-16 UNF | 15 micron | 1, 2,up to B100 | 29 |
| F3000-M | Spin-on element, epoxy coated liner with O-ring | M20 X 1.5 | 10 micron | 1, 2,up to B5 | 16 |
| F3500-M | Spin-on element, epoxy coated liner with O-ring | M20 X 1.5 | 10 micron | 1, 2,up to B5 | 29 |

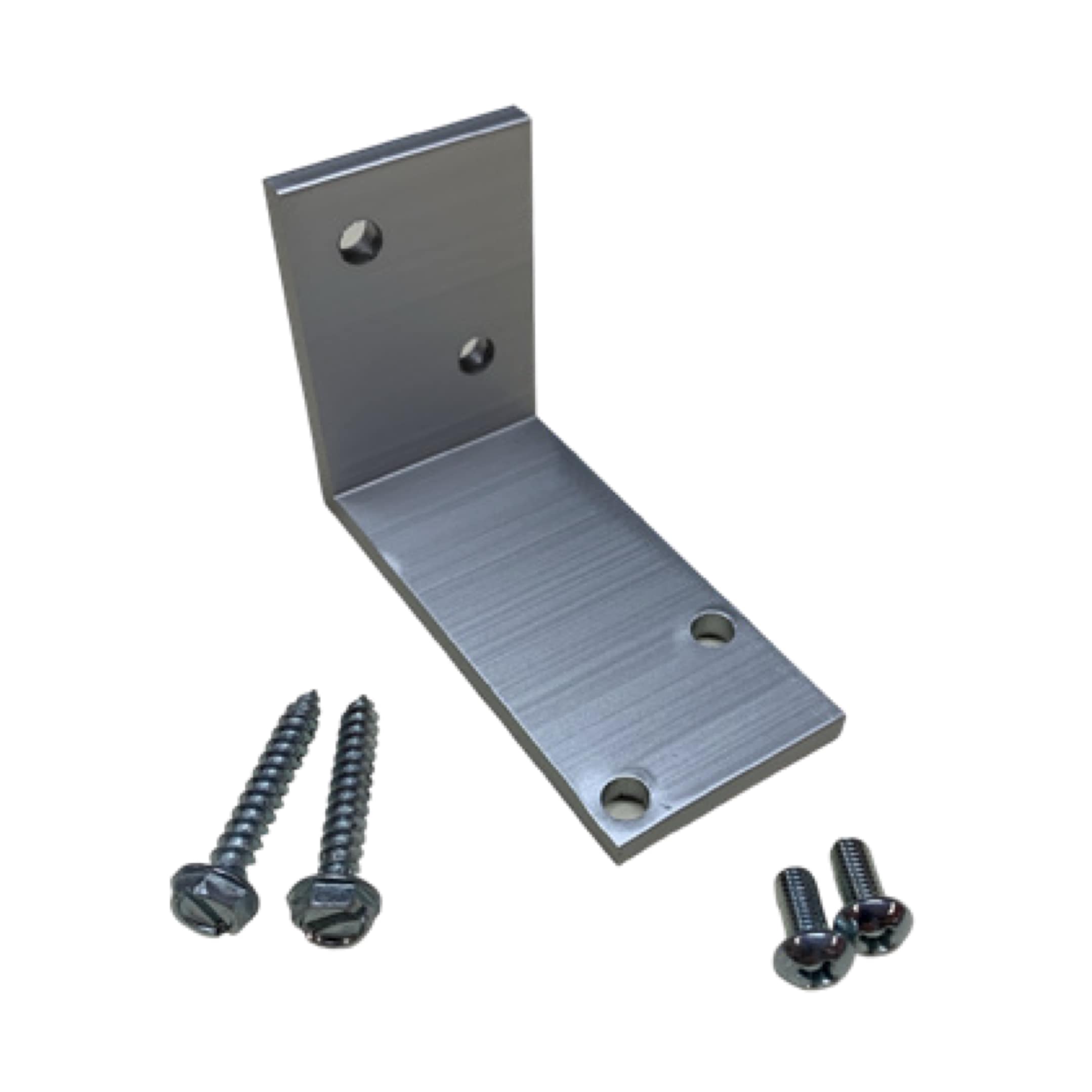

Mounting Bracket Kit, Includes mounting screws.

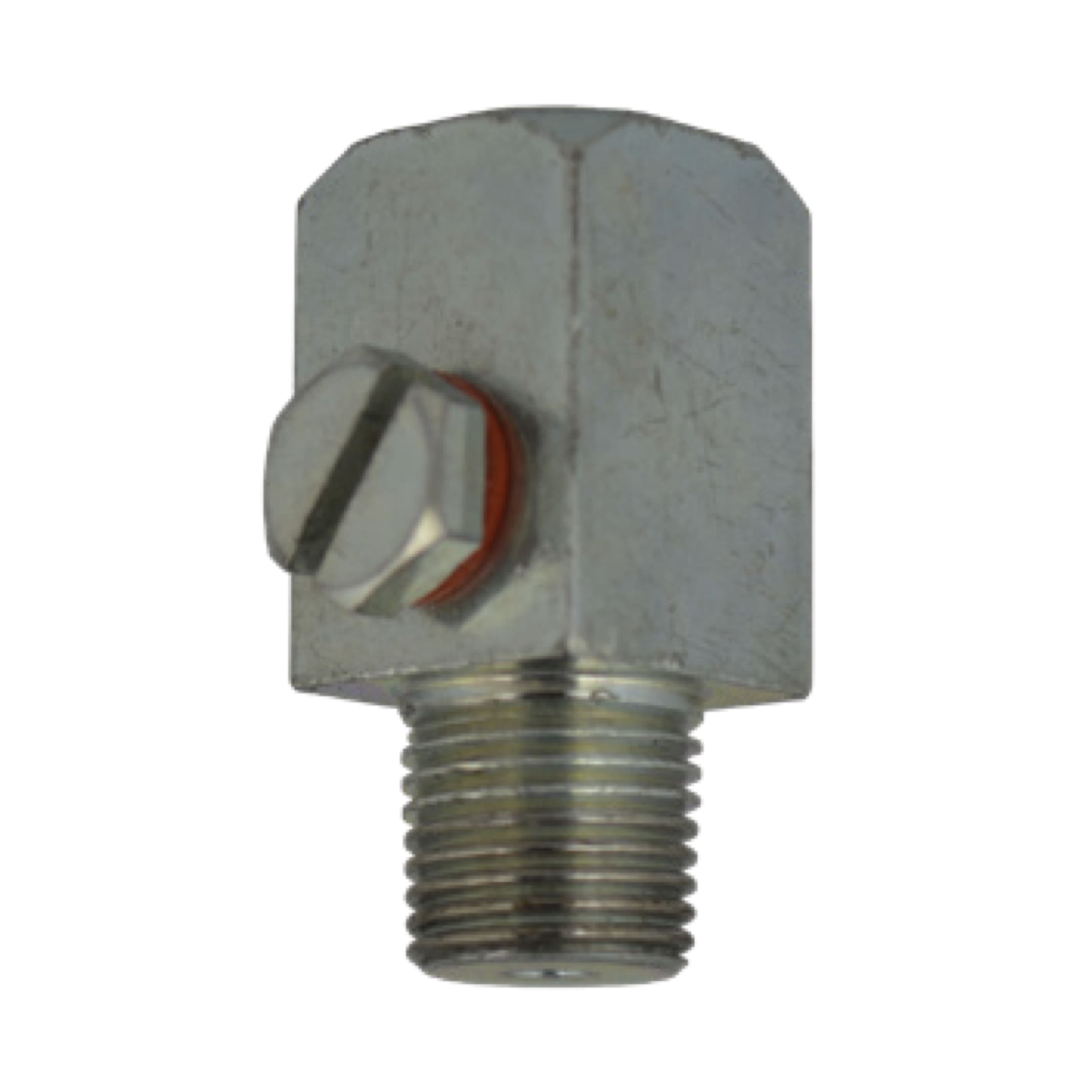

Gauge mount with bleeder screw
Filter Top – M20 x 1.5 filter port 3/8″ inlets

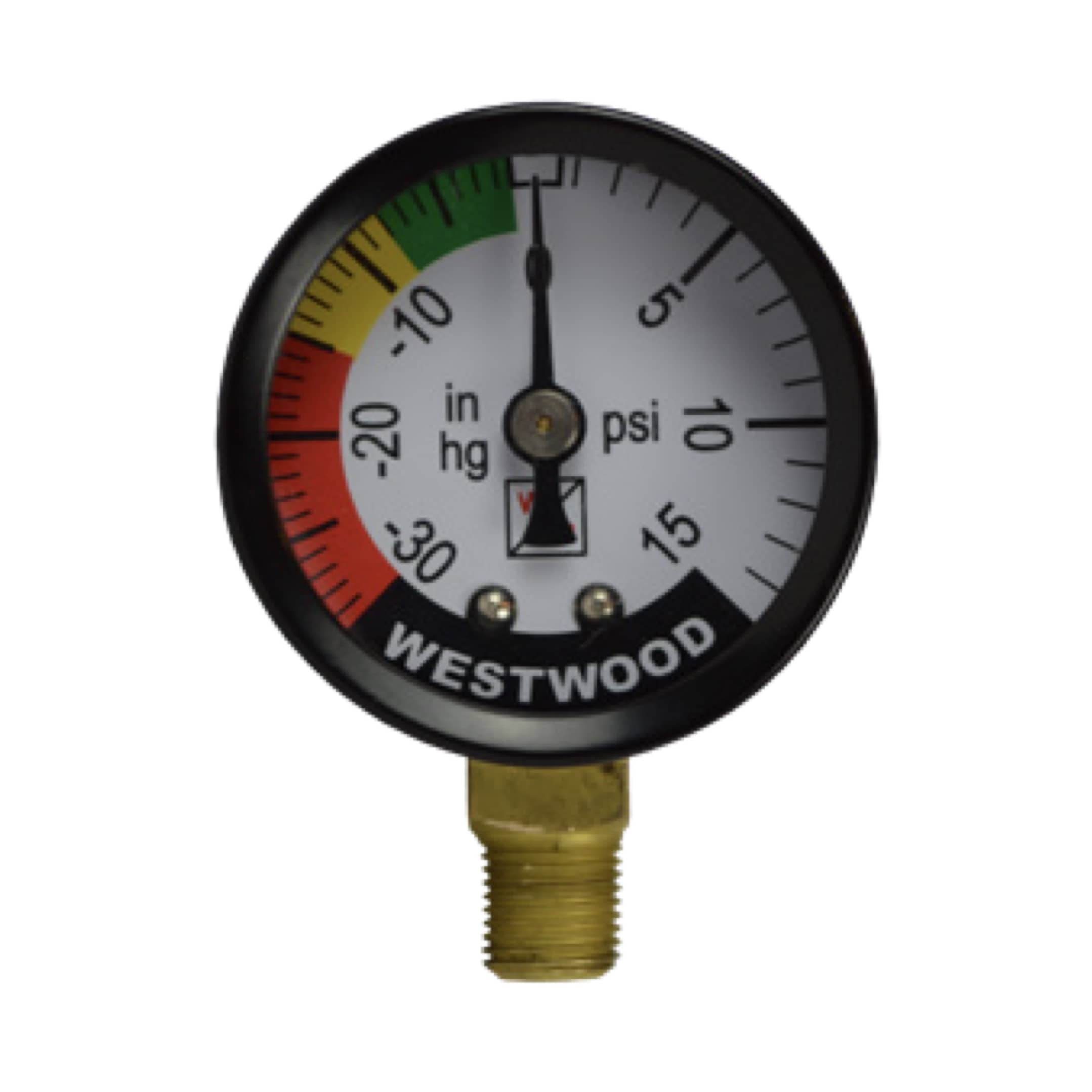

FLI™ (Filter Life Indicator) color coded compound gauge

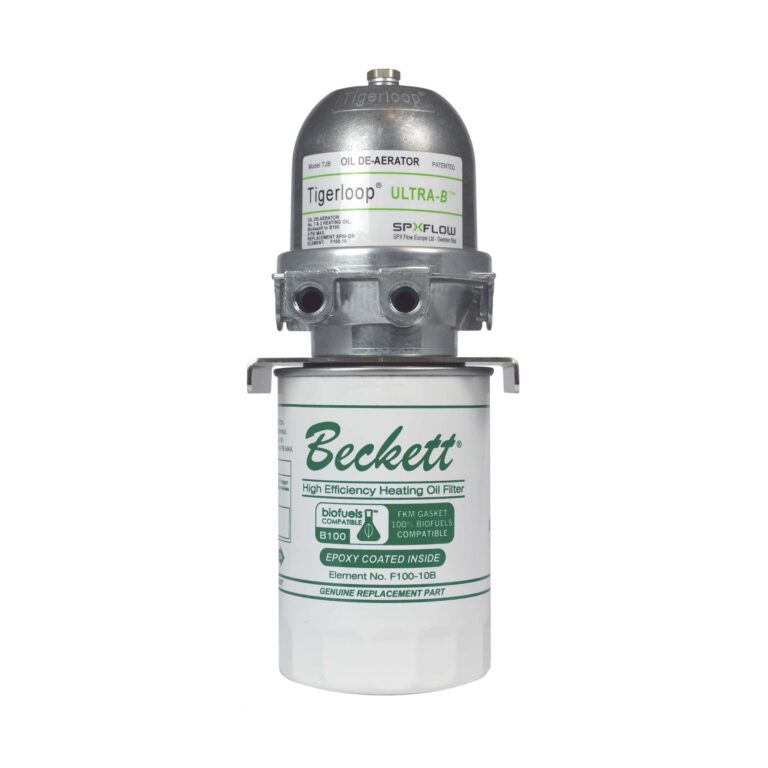

It is recommended to always install a filter at the tank and also near the burner. To ensure best results, eliminate a 2-pipe system with a Tigerloop Ultra oil deaerator, which provides dependability and ease of maintenance with an integrated spin-on filter.
Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.
