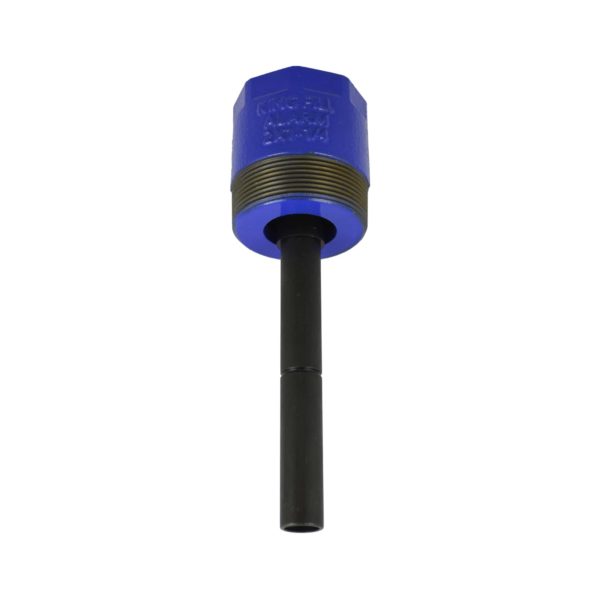

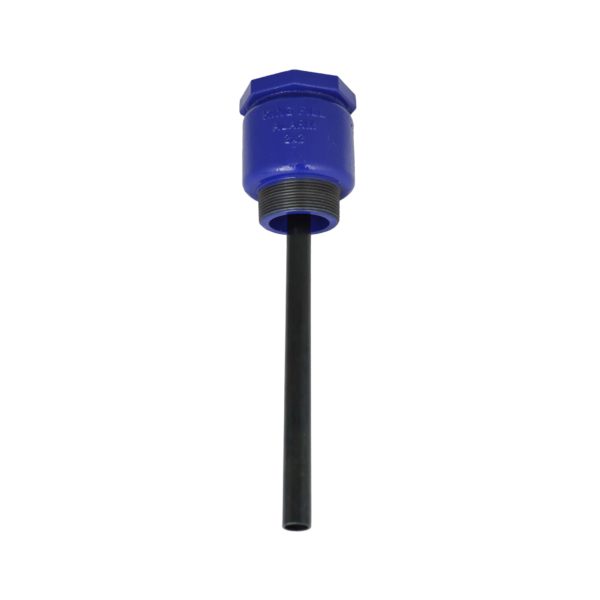

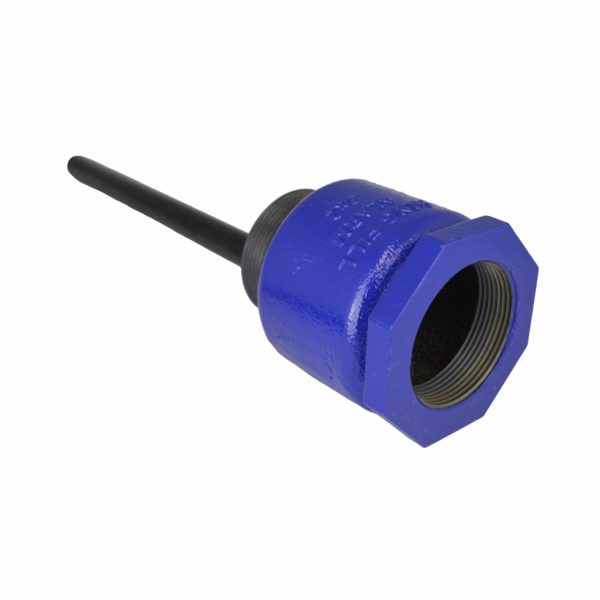

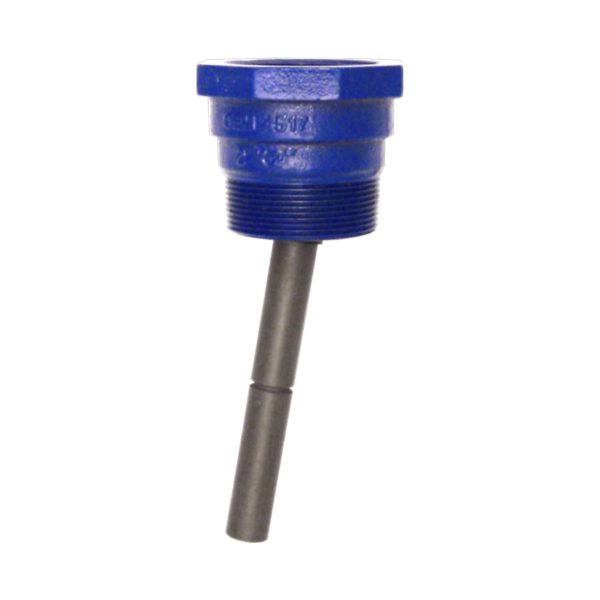

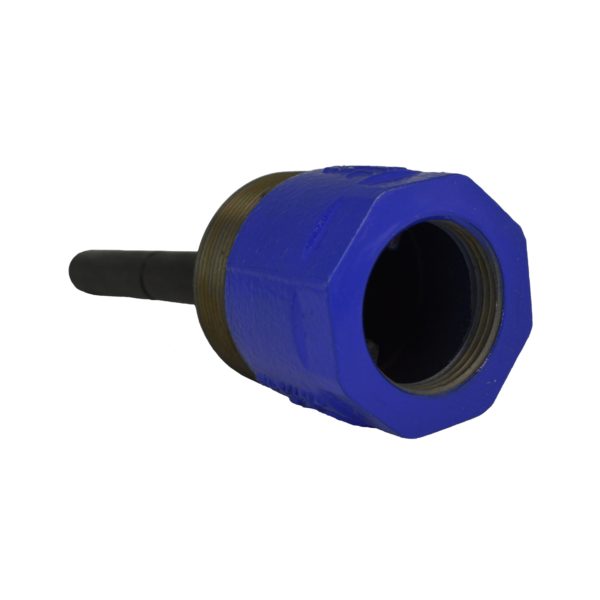

King® Fill Alarms

King® fill alarms are sized to fit most popular above-ground and in-ground tanks.

  • Durable cast iron with corrosion-resistant powder coated finish
  • Whistles while tank is being filled; stops whistling when oil has reached safe capacity

Available King® Fill Alarms

Part No. Stem Length Thread Size

Bottom MPT1

Thread Size

Top FPT1

14509 5-1/4” 1-1/4” 1-1/4”
14511 5-1/4” 1-1/2” 1-1/4”
14512 5-1/4” 1-1/2” 1-1/2”
14514 5-3/4” 2″ 1-1/4”
14515 5-3/4” 2″ 1-1/2”
14517 5-3/4” 2″ 2″
14516 9-3/4” 2″ 2″
14518 16-3/4” 2″ 2″
14519 21-7/8” 2″ 2″

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

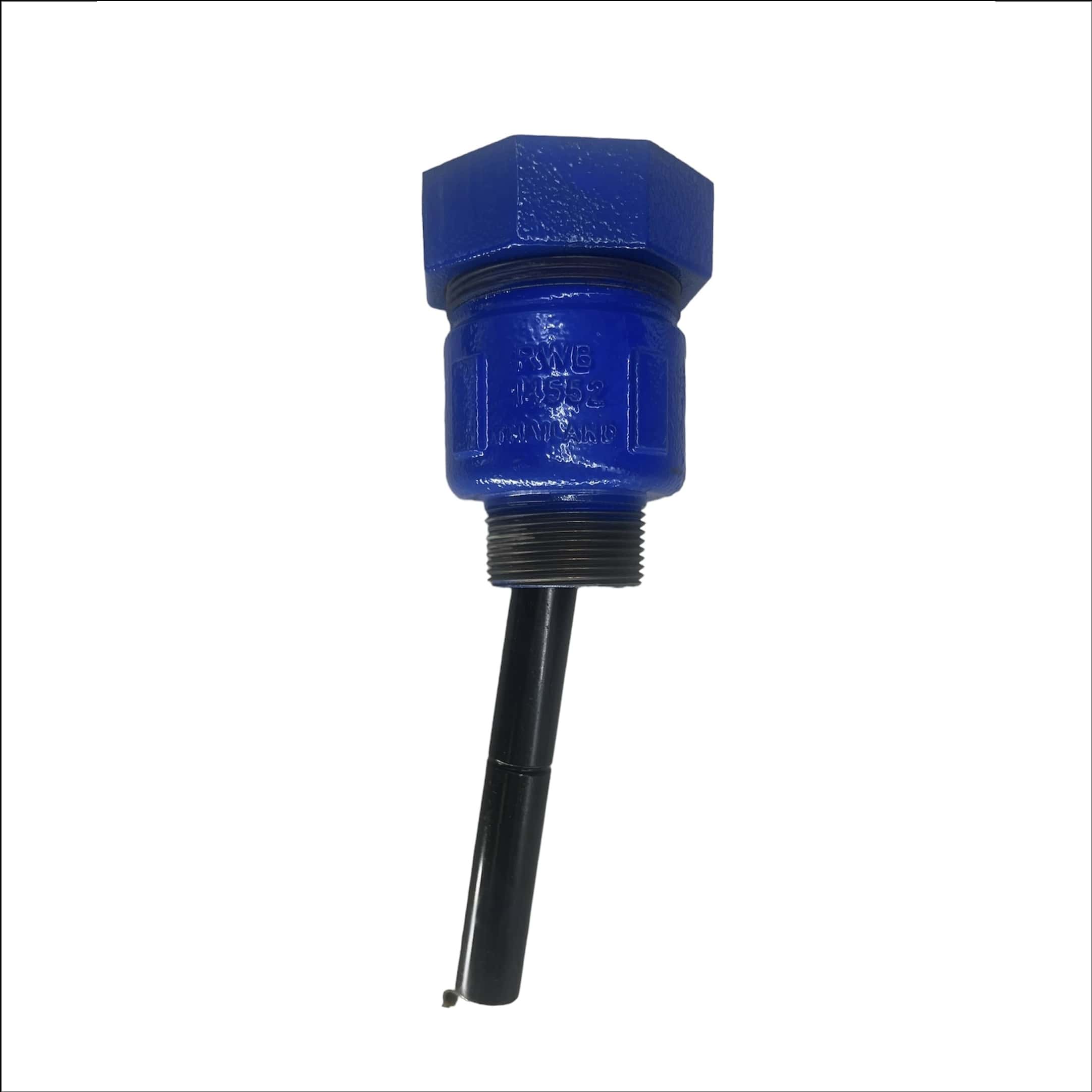

Available King® Compression Lock Fill Alarms

Ideal for retrofitting existing tanks. Available in 1-1/4”.

Part No. Stem Length Thread Size
Bottom MPT1 Top FPT1
14552 5-1/4” 1-1/4” 1-1/4”

1 MPT = Male Pipe Thread, FPT = Female Pipe Thread
